KLEIN Tools A-CL320 HVAC Digital Clamp Meter, AC Auto-Ranging 400Amp

Name: KLEIN Tools A-CL320 HVAC Digital Clamp Meter, AC Auto-Ranging 400Amp
Brand: KLEIN Tools
SKU: A-CL320
Price: 137 AUD
Availability: BackOrder

SKU: A-CL320

$164$137You save $27

4 payments of $34.25 with

Free Shipping For Orders Over $199
Free postage is available on all orders over $199 when shipped via Australia Post, excluding power tools, cordless tools, and any individual items that weigh more than 10kg or have a volume equal to or greater than 10 litres.
14 Days Free Returns
- Item must be in new condition and not used.
- Refunds will be processed once your item has arrived.
- Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
Read More
Manufacturer's Warranty
All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.

The safer, easier way to pay

Product Description

Description:

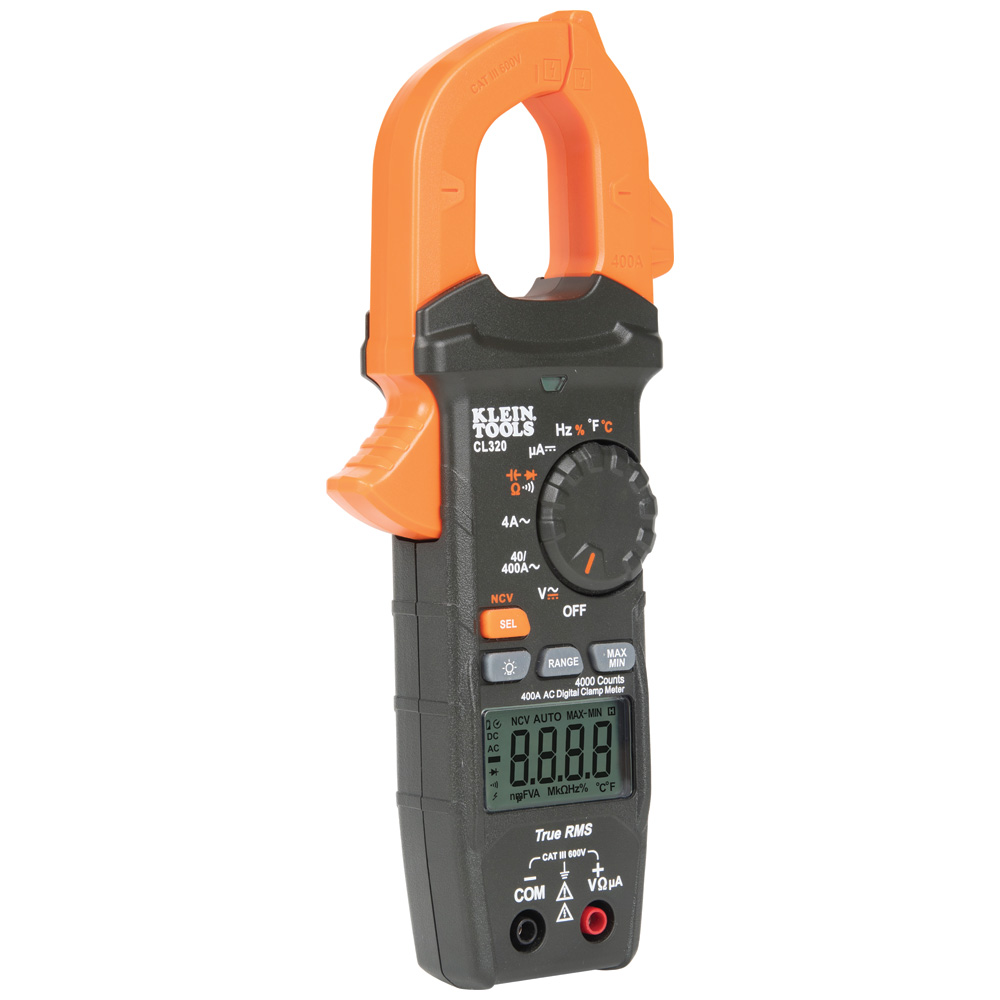

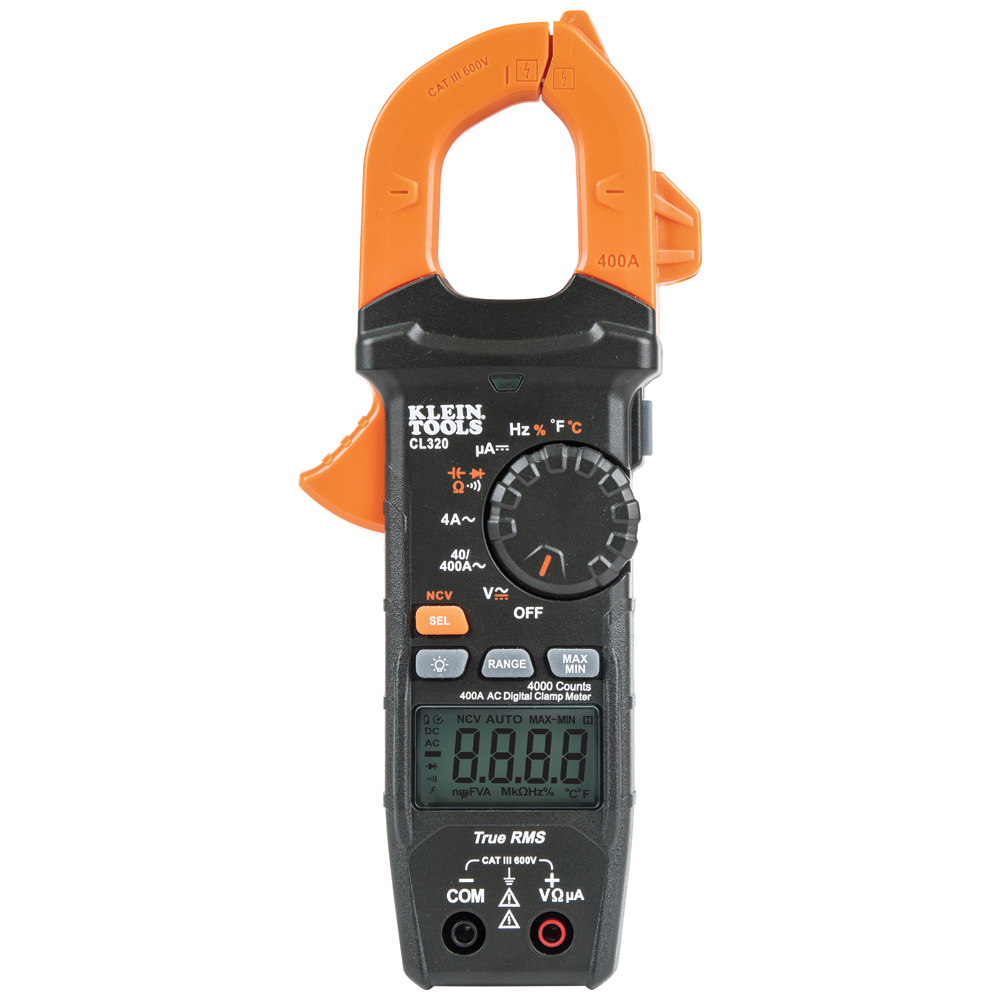

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from the average of an electrical property being measured; and DC Microamp measurements when working with flame sensors

Features:

Clamp Meter measures AC Current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC micro-amp, capacitance, duty cycle, diode test and continuity via test-leads, and temperature with a thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging true root mean squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Data Hold and Max/Min value
Auto Power-Off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions and 3 x AAA batteries
Low-battery indicator and easily accessible battery compartment
Built to withstand a 6.6′ (2 m) drop
CAT III 600 V, Class 2, Double Insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations

Specifications:

Type: HVAC TRMS Clamp
Application: Measures AC Current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test and continuity via test-leads, and temperature with a thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
Material: ABS/Electronics
Batteries: 3 x AAA
Auto Shut Off: Yes
Jaw Size: 1.6” (4.1 cm)
Drop Protection: 6.6′ (2 m)
Display: 4000 Count Backlit LCD
Display Size: 1.57” x 0.87” (4 x 2.2 cm)
Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity and Temperature
Auto-Ranging: Yes
TRMS: Yes
Voltage: 600V AC/DC
Frequency: 10 Hz -60 kHz
Current: 400 A AC
Capacitance: 4000 µF
Ohms (Resistance): 40MO
AC Voltage: 600V
DC Voltage: 600V
DC Polarity Indicator: Yes
DC Microamp: 200 μA
Temperature Range: -40° to 1832°F (-40° to 1000°C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Overall Length: 8.45” (21.5 cm)
Overall Height: 1.5” (3.8 cm)
Overall Width: 3.5” (8.9 cm)
Weight: 11 oz (314 g)
