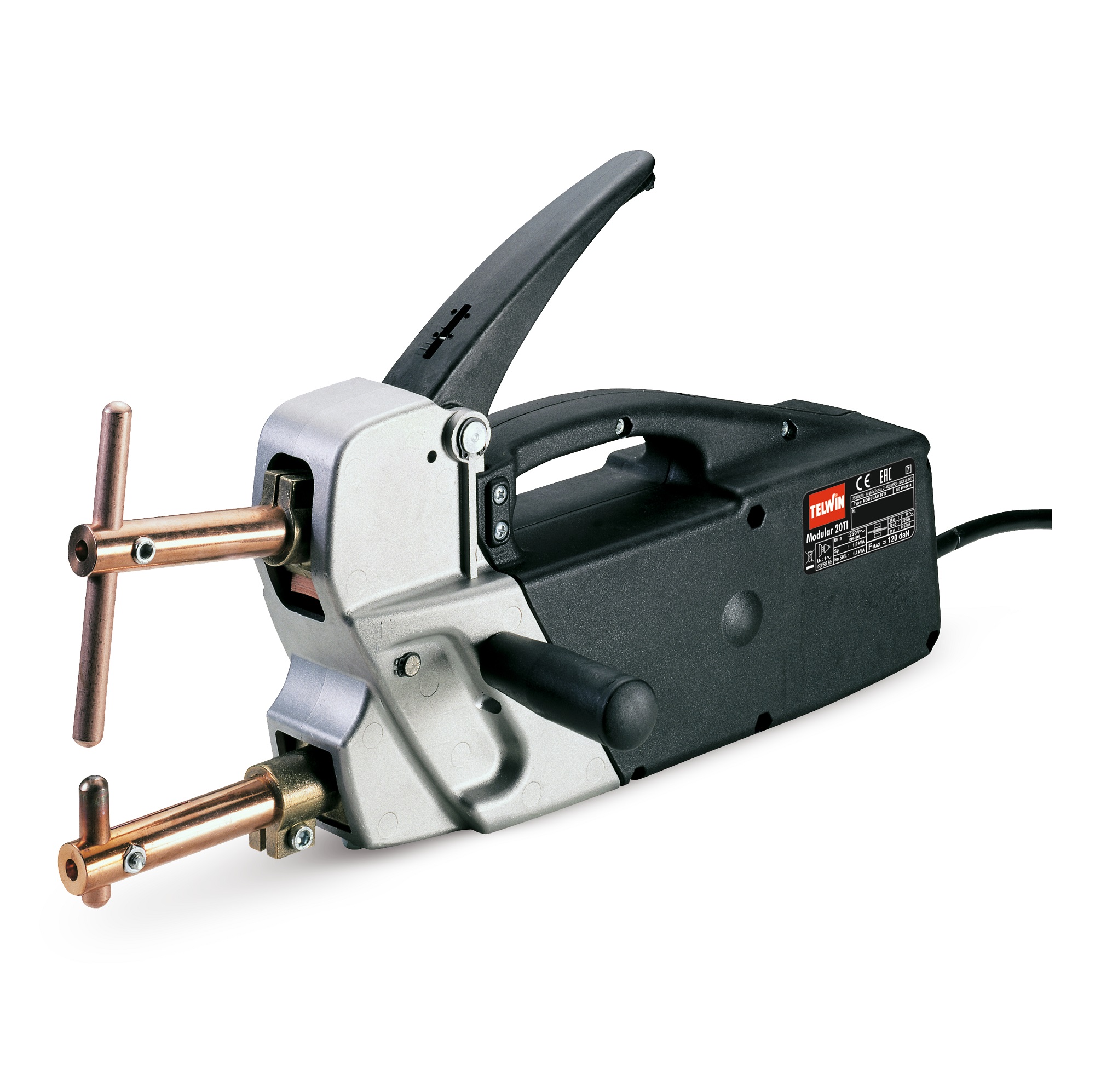

Telwin 823015 Modular 20TI 20/TI 1mm+1mm Portable Modular Spot Welder 509536
$2,508.00$1,599.00You save $909
Or
4 payments of $399.75 with
-
Ships free Australia Wide
-
14 Days Free Returns
-
Manufacturer's Warranty
Product Description
Description:- Spot welding machine with electronic control of the spot welding time
- Suitable for spot welding of sheets with maximum thickness 1+1mm
- Synchronous electronic timer with spot welding time adjustable from 0,1 sec. to 1,2 sec.
- Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
- Handgrip made out of thermic isolating material.
- Code 823015
- Singlephase Mains Voltage 230 V
- Mains Frequency 50 / 60 Hz
- Max Spot-Welding Current 5800 A
- Secondary No Load Voltage 2 V
- Rated Power Consumpti.X=50%Kva 1,4
- Mains Fuse 16 A
- Power Factor(Cosphi) (Cosphi) 0,9
- Max Weld.Thick.2 Sheets 1 + 1 mm
- Duty Cycle 1,5 %
- Protection Degree IP20
- Dimensions (LxWxH) 44 x 10 x 18,5 cm
- Weight 9,88 kg
- 8004897465647
Additional information
Weight | 10 kg |
---|---|
Dimensions | 37 × 47 × 76 cm |
