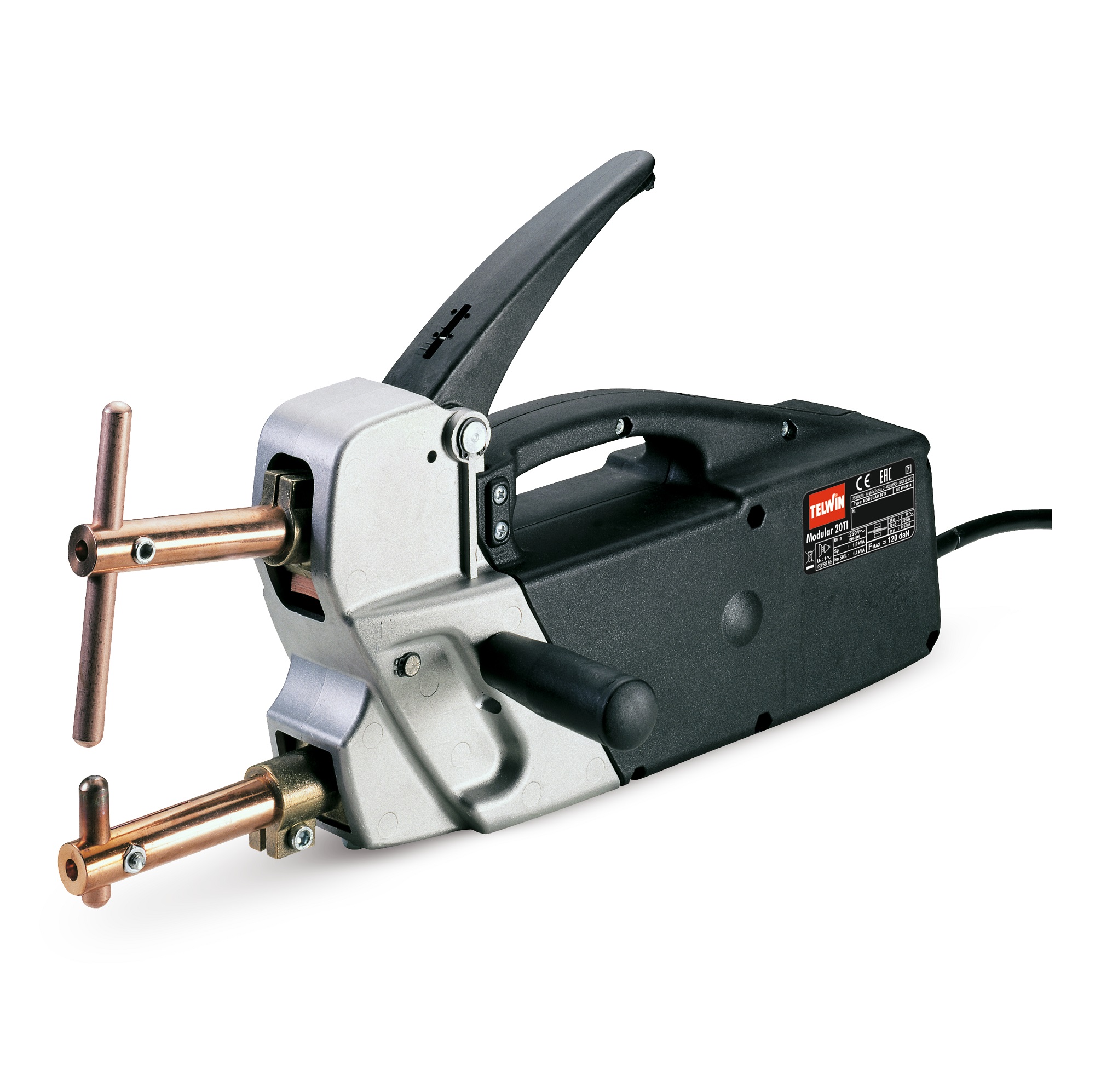

Telwin 823015 Modular 20TI 20/TI 1mm+1mm Portable Modular Spot Welder 509536

Telwin 823015 Modular 20TI 20/TI 1mm+1mm Portable Modular Spot Welder 509536

SKU: 823015
In Stock
$2,649$1,799You save $850
Or
4 payments of $449.75 with
Estimated delivery by 30th December to 2nd January
  • Ships free Australia Wide
    Free postage is available on all orders over $199 when shipped via Australia Post, excluding power tools, cordless tools, and any individual items that weigh more than 10kg or have a volume equal to or greater than 10 litres.
  • 14 Days Free Returns
    • Item must be in new condition and not used.
    • Refunds will be processed once your item has arrived.
    • Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
    Read More
  • Manufacturer's Warranty
    All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.
The safer, easier way to pay

Product Description

Description:
  • Spot welding machine with electronic control of the spot welding time
  • Suitable for spot welding of sheets with maximum thickness 1+1mm
Features:
  • Synchronous electronic timer with spot welding time adjustable from 0,1 sec. to 1,2 sec.
  • Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
  • Handgrip made out of thermic isolating material.
Technical Data:
  • Code 823015
  • Singlephase Mains Voltage 230 V
  • Mains Frequency 50 / 60 Hz
  • Max Spot-Welding Current 5800 A
  • Secondary No Load Voltage 2 V
  • Rated Power Consumpti.X=50%Kva 1,4
  • Mains Fuse 16 A
  • Power Factor(Cosphi) (Cosphi) 0,9
  • Max Weld.Thick.2 Sheets 1 + 1 mm
  • Duty Cycle 1,5 %
  • Protection Degree IP20
  • Dimensions (LxWxH) 44 x 10 x 18,5 cm
  • Weight 9,88 kg
UPC:
  • 8004897465647

Additional information

Weight 10 kg
Dimensions 37 × 47 × 76 cm
