Product Description

• Designed to meet the rigorous demands of precision measurements in both small and medium-sized automotive and mechanical engineering companies
• This kit is a comprehensive solution for conducting detailed tests and inspections
• Its components have been selected for their precision, durability, and ease of use, ensuring professionals have access to reliable instruments for their measurement needs Whether for routine maintenance, quality control, or complex engineering projects, this precision tools kit is designed to be a cost-effective solution whilst delivering accurate results

• Three dovetail positioning mounts work with most existing test indicator accessories
• Precision gear-driven design with smooth, jeweled movement
• Contact point reverses automatically, always maintaining clockwise hand rotation
• Contacts are frictionally adjustable and replaceable
• Meets or exceeds ANSI/ASME accuracy specifications
• High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
• Narrow body for in reach ability
• Satin chrome finish for durability

• Range (mm): 0.8mm
• Graduations (mm): 0.01mm
• Dial Reading: 0-40-0
• Dial Color: Yellow 32mm Diameter

• Economic design with high quality
• End measuring rod or “standard” comes with micrometers over 25mm range
• Smooth ratchet stop and friction thimble for uniform pressure
• Rigid one-piece steel tapered frame ribbed for extra strength with black wrinkle paint
• Satin chrome finish thimble and sleeve, with staggered lines and distinct figures for precise and easy readability
• Every tool has a silver wrench in the packaging
• Instruction Manual in 7 languages

• Lightweight, ergonomic design
• Millimetre/inch/fraction conversion – reads 0.01 mm, .0005″ or 1/64″
• Auto-off after 5 minutes
• Durable and hardened stainless steel body
• Fine adjustment thumb wheel
• Lock screw to secure slide position
• Zero setting at any position
• Maximum measuring speed: 1.5m/sec or 60″/sec
• Battery: Single SR44/LR44 long-life battery; low battery warning with flashing display
• Comes with a battery cover wrench for easy access
• USB port for data output
• Conforms to DIN862 standard

• 0 – 150mm / 0 – 6″
• 0.01mm / .0005″ / 1/64″

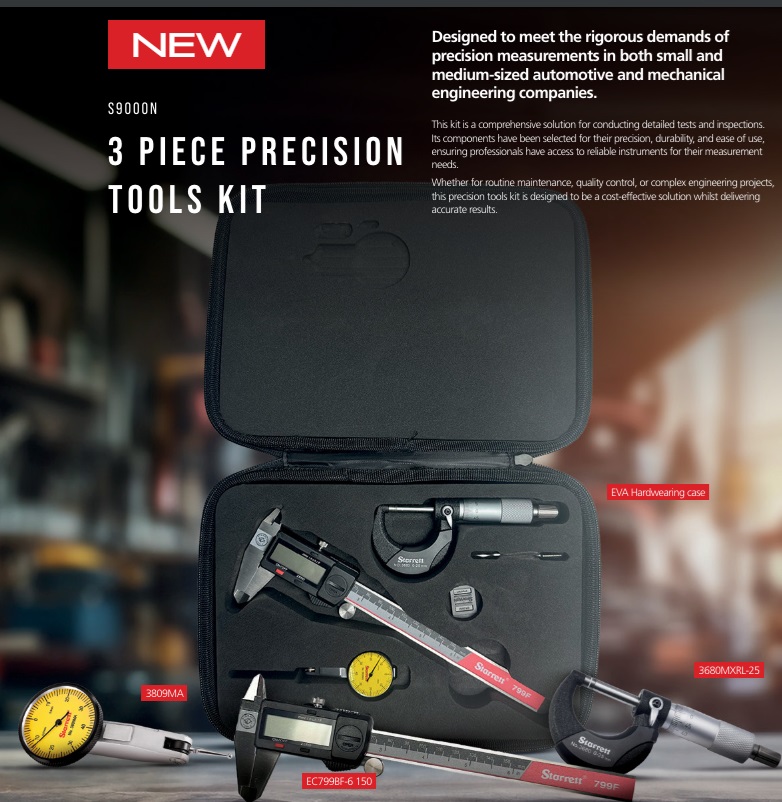

• 3809MA Dial Indicator
• 3680MXRL-25 Outside Micrometer
• EC799BF-6/150 Digital Vernier Caliper
• Silver Wrench
• 2 x Dovetail Clamps
• Instruction Manual
• EVA Hardwearing Case

• 04965624281
