Product Description

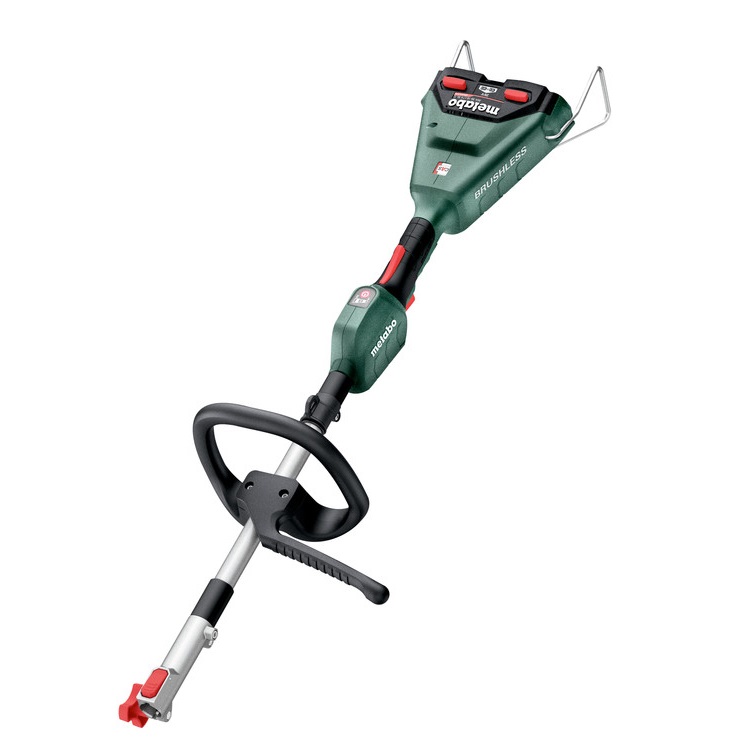

Metabo MA 36-18 LTX BL Q Cordless Multifunction Drive 601725850 Features:

• Powerful 2×18 Volt cordless drive for the attachments of the Metabo multifunction system, the all-in-one solution for many garden applications
• Powerful Brushless motor for high performance and long battery pack runtime
• Variable working speed thanks to two selectable speed ranges and infinitely variable speed control trigger
• Metabo “Quick” quick coupling system for tool-free attachment replacement
• Healthy position and balanced weight thanks to individually adjustable loop handle and shoulder strap
• Safe working thanks to rubberised grip areas and additional safety switch against unintentional starting
• Environmentally-friendly and quiet thanks to battery operations, therefore usable also in areas sensitive to noise
• Practical protection and support bracket on the battery packs
• Space-saving storage at the wall by means of practical suspension eye
• 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: cordless-alliance-systems.com

Technical Data:

• Battery voltage 18 V
• No-load speeds 0 – 7000 / 0 – 8200 rpm
• Length 1052 mm / 41 13/32 “
• Weight without battery pack 3 kg / 6.6 lbs
• Weight with battery pack 3.9 kg / 8.6 lbs

Scope of Delivery:

• Loop handle
• Hexagonal wrench
• Shoulder strap

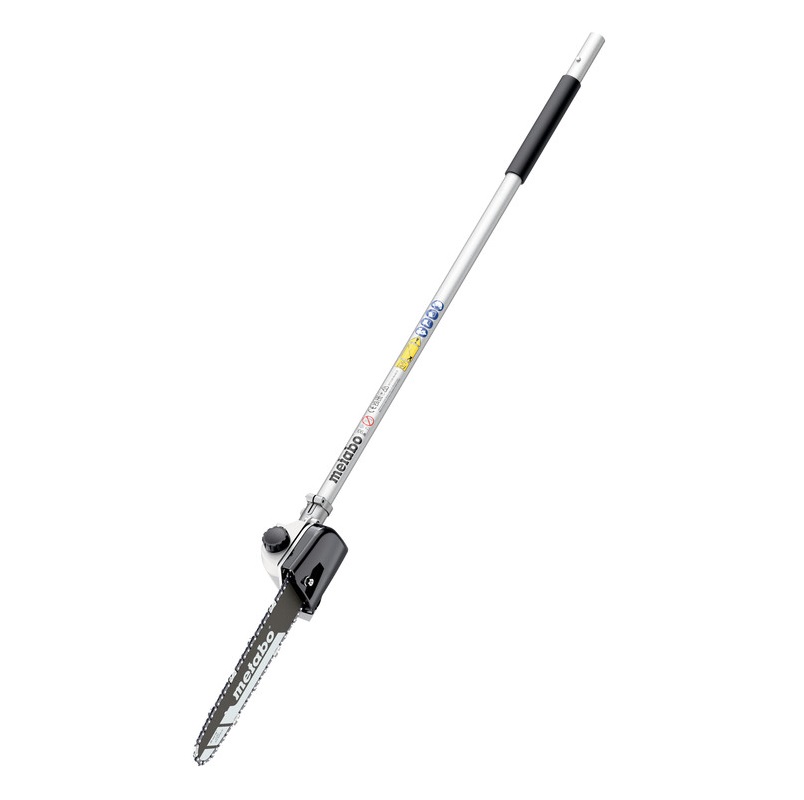

Metabo MA-MS 25 Pole Pruner Attachment 601727850 Features:

• Safe tree maintenance with the pole pruner attachment of the Metabo multifunction system, the all-in-one solution for many garden applications
• Together with the cordless multifunction drive MA 36-18 LTX BL Q an environmentally-friendly, quiet system, ideal for areas sensitive to noise
• Metabo “Quick” quick coupling system for tool-free attachment replacement
• Precise and powerful cuts with a chain speed of up to 18 m/s
• Shaft extension to increase the range by 88 cm available as accessory
• Low kickback chain for easy, safe cuts and low vibrations
• Automatic chain lubrication for highest cutting output with minimum service requirements
• Easy re-tensioning and replacement of the saw chain
• Stable stop made from metal for optimal guidance and low-fatigue sawing
• Integrated hook for the removal of cut branches from the treetop
• Semi-transparent oil tank for comfortable controlling and refilling of the chain oil
• Robust use thanks to durable metal gear unit

Technical Data:

• Track length 25 cm / 9 27/32 “
• Cutting length 24 cm / 9 7/16 “
• chain speed level 116 m/s / 53 ft/s
• chain speed level 218 m/s / 59 ft/min
• Saw chain tooth shape semi-chisel / low profile
• Saw chain tooth division 3/8″ LP
• Drive link thickness 1.3 mm / 0.05 “
• Number of drive links 39
• Oil container volume 120 ml
• Length 1230 mm / 48 7/16 “
• Length with drive 2005 mm / 78 15/16 “
• Weight 1.7 kg / 3.7 lbs

Scope of Delivery:

• Saw chain 25 cm (3/8″ LP / 1.3 mm)
• Saw rail 25 cm
• Sawing chain protection
• Combo-spanner

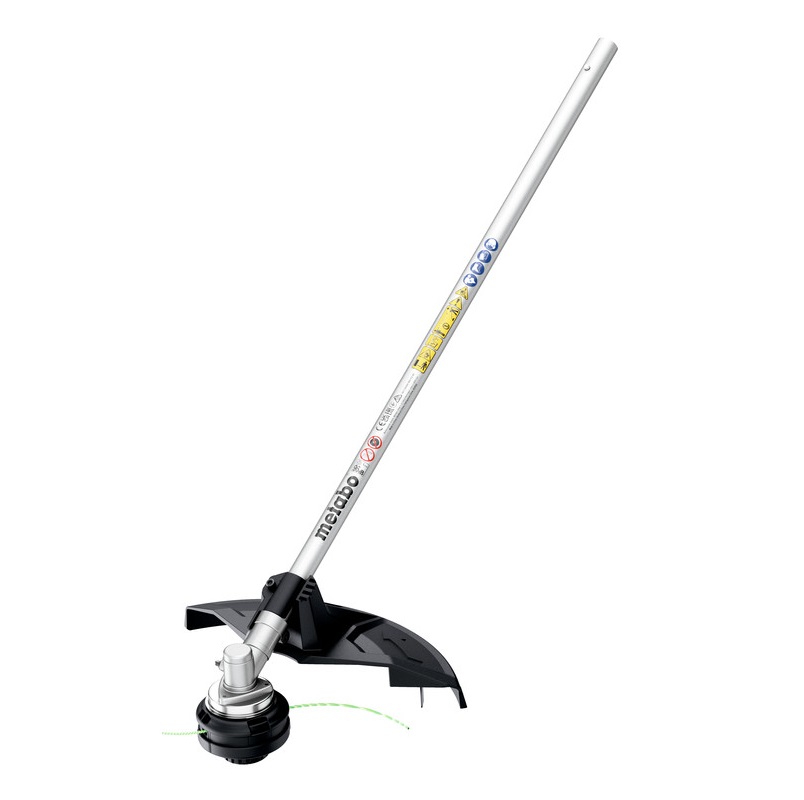

Metabo MA-FS 40 Brush Cutter Attachment 601728850 Features:

• Mowing, trimming and clearing out with the brush cutter attachment of the Metabo multifunction system, the all-in-one solution for many garden applications
• Together with the cordless multifunction drive MA 36-18 LTX BL Q an environmentally-friendly, quiet system, ideal for areas sensitive to noise
• Metabo “Quick” quick coupling system for tool-free attachment replacement
• Versatile use with twin line spool for grass cuts or blades for brushwood
• Easy readjustment of the line by means of short tapping of the spool head while working
• Metabo quick thread change: fast and without tools, without removing or opening the spool
• Fast work initiation thanks to fast, powerful startup
• Robust use thanks to durable metal gear unit

Technical Data:

• Cutting diameter 40 cm / 15 3/4 “
• No-load speed 0 – 5300 / 0 – 6000 rpm
• Thread diameter 2 mm / 1/16 “
• Length 990 mm / 38 31/32 “
• Length with drive 1960 mm / 77 5/32 “
• Weight 1.6 kg / 3.5 lbs

Scope of Delivery:

• Guard
• Twin line spool (line Ø 2 mm, 4 m)
• Brush cutter with 3 blades
• Adapter for blades
• Combo-spanner
• Hexagonal wrench

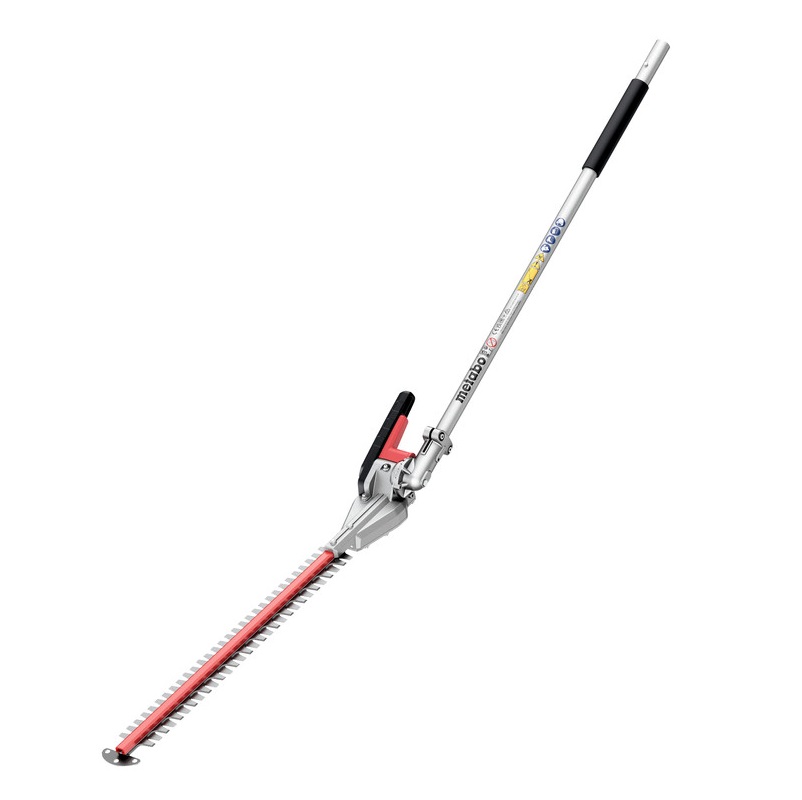

Metabo MA-HS 50 Hedge Trimmer Attachment 601726850 Features:

• Cutting of high hedges and shrubs with the hedge trimmer attachment of the Metabo multifunction system, the all-in-one solution for many garden applications
• Together with the cordless multifunction drive MA 36-18 LTX BL Q an environmentally-friendly, quiet system, ideal for areas sensitive to noise
• Metabo “Quick” quick coupling system for tool-free attachment replacement
• Highly efficient, precise dual cutting system thanks to diamond-ground blade teeth on both sides
• Cutter bars can be swivelled by 215° in 13 steps without tools for the optimal angle depending on the working situation
• Trigger guard protects user and gearing when working near walls and the ground
• Robust use thanks to durable metal gear unit
• Easy transport and space-saving storage with folded cutter bar

Technical Data:

• Blade length 50 cm / 19 11/16 “
• Cutting length 48 cm / 18 29/32 “
• cutting thickness 22 mm / 7/8 “
• Cutting angle 0 – 215 °
• Number of strokes (No Load) 0 – 2600 / 0 – 3100 rpm
• Length 1645 mm / 64 3/4 “
• Length with drive 2620 mm / 103 5/32 “
• Weight 2.8 kg / 6.2 lbs

Scope of Delivery:

• Blade protection quiver

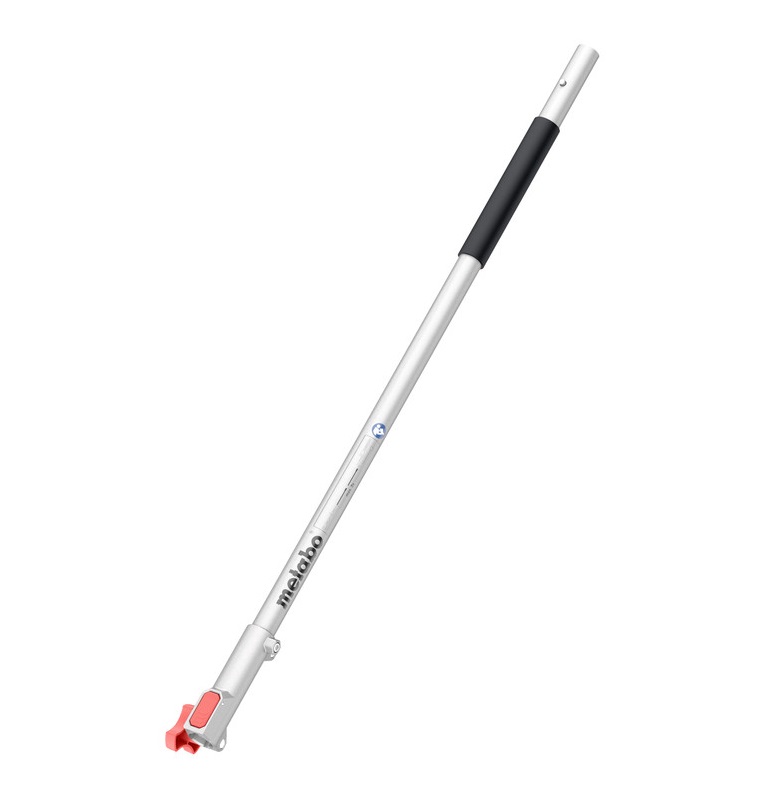

Metabo Shaft Extension Garden Multifunction System 628498000 Features:

• Stable shaft extension for the pole pruner attachment MA-MS 25 of the garden multifunction system
• Increase in range by 88 cm
• Metabo Quick tool-free quick coupling system

Technical Data:

• Length 95 cm

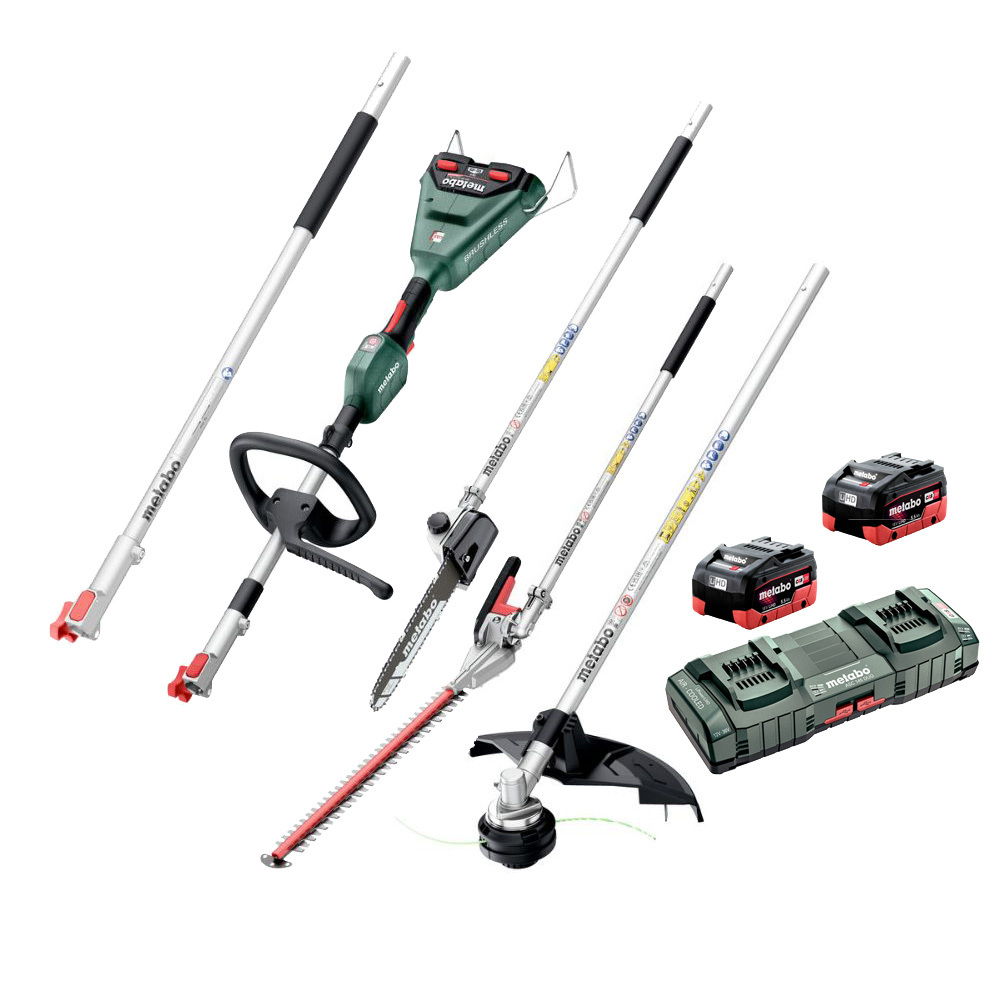

Kit Includes:

• Metabo MA 36-18 LTX BL Q Cordless Multifunction Drive 601725850
• Metabo MA-FS 40 Brush Cutter Attachment 601728850
• Metabo MA-MS 25 Pole Pruner Attachment 601727850
• Metabo MA-HS 50 Hedge Trimmer Attachment 601726850
• Metabo Shaft Extension Garden Multifunction System 628498000
• Metabo 12-36V Quick Charger ASC 145 Duo 627498000
• 2x Metabo 18V 5.5Ah LIHD Battery Pack 625368000

UPC:

• 9339742002814
