Product Description

• Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Saves time, trims flush to the end face when used with Klein Tools’ Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

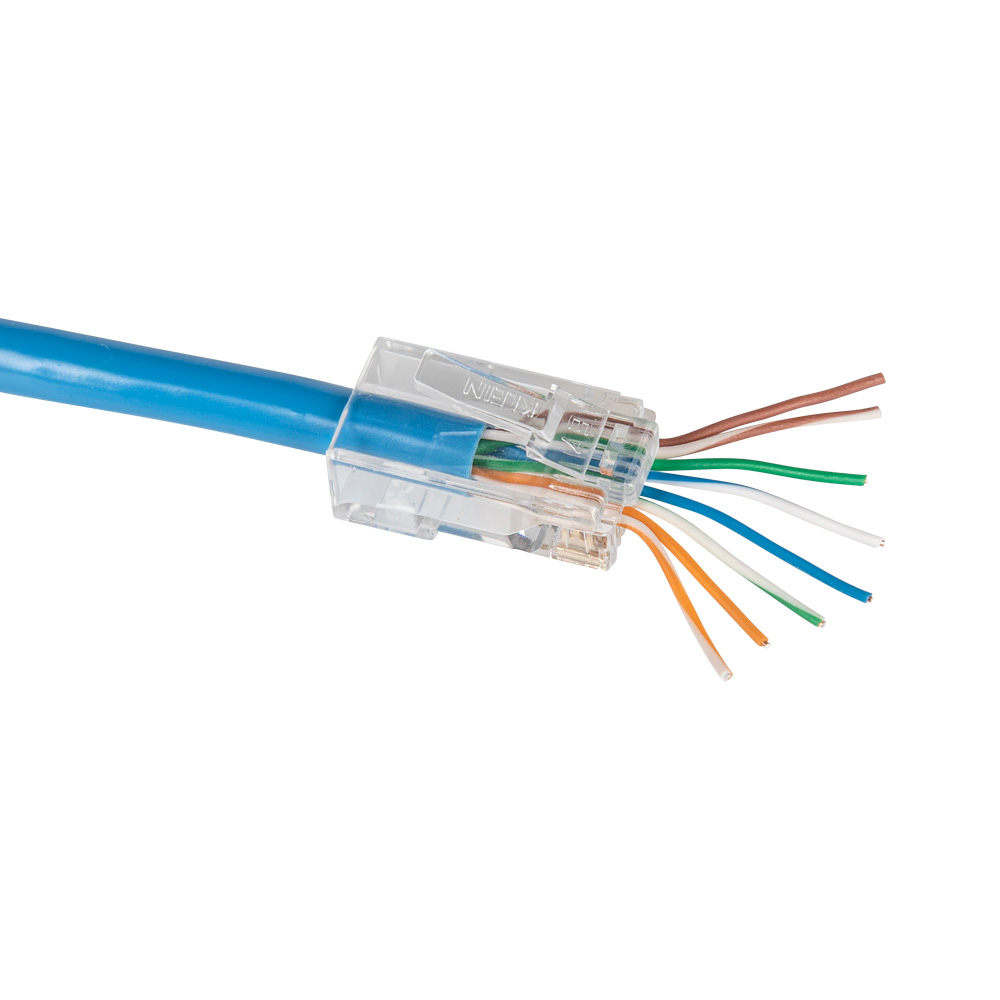

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ-inch minimum gold plating on all contact surfaces
• Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with the Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 10-pack
• 8 position, 8 contact pass-through style data plug for solid or stranded cable

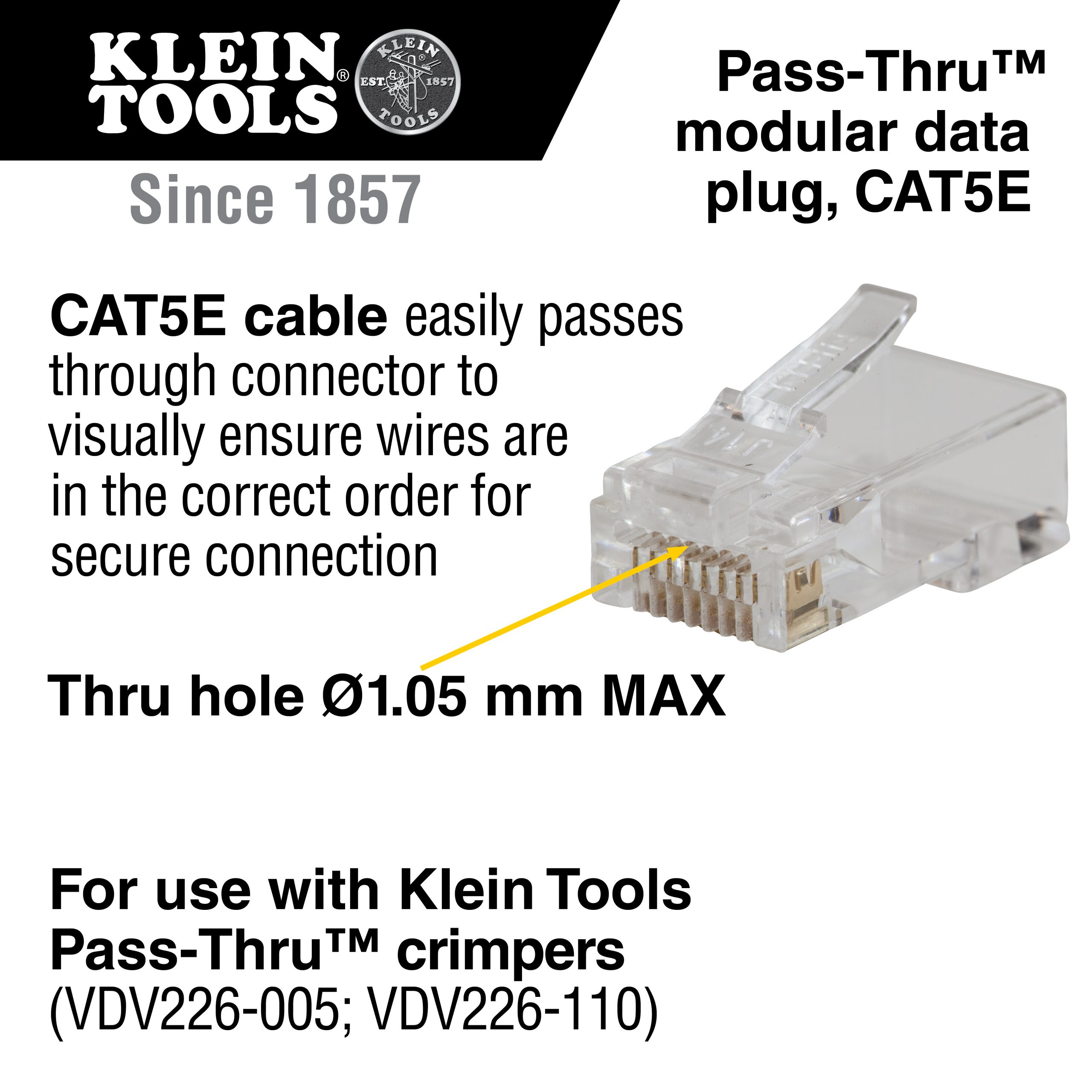

• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04” (1.01 mm)

• Type: Modular
• Application: Voice and data
• Special Features: Pass-through technology
• Overall Length: 0.875” (2.2 cm)
• Overall Height: 0.453” (1.2 cm)
• Overall Width: 0.094” (0.2 cm)
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT5e
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 10
• Weight: 1 oz (28 g)

• 092644690976
