Product Description

• Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through the connector for a consistent and secure termination. Saves time, trims flush to end face when used with the Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110 and eliminates wasted materials

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• For CAT6A cable, as well as larger diameter/thicker jacket CAT6 cable

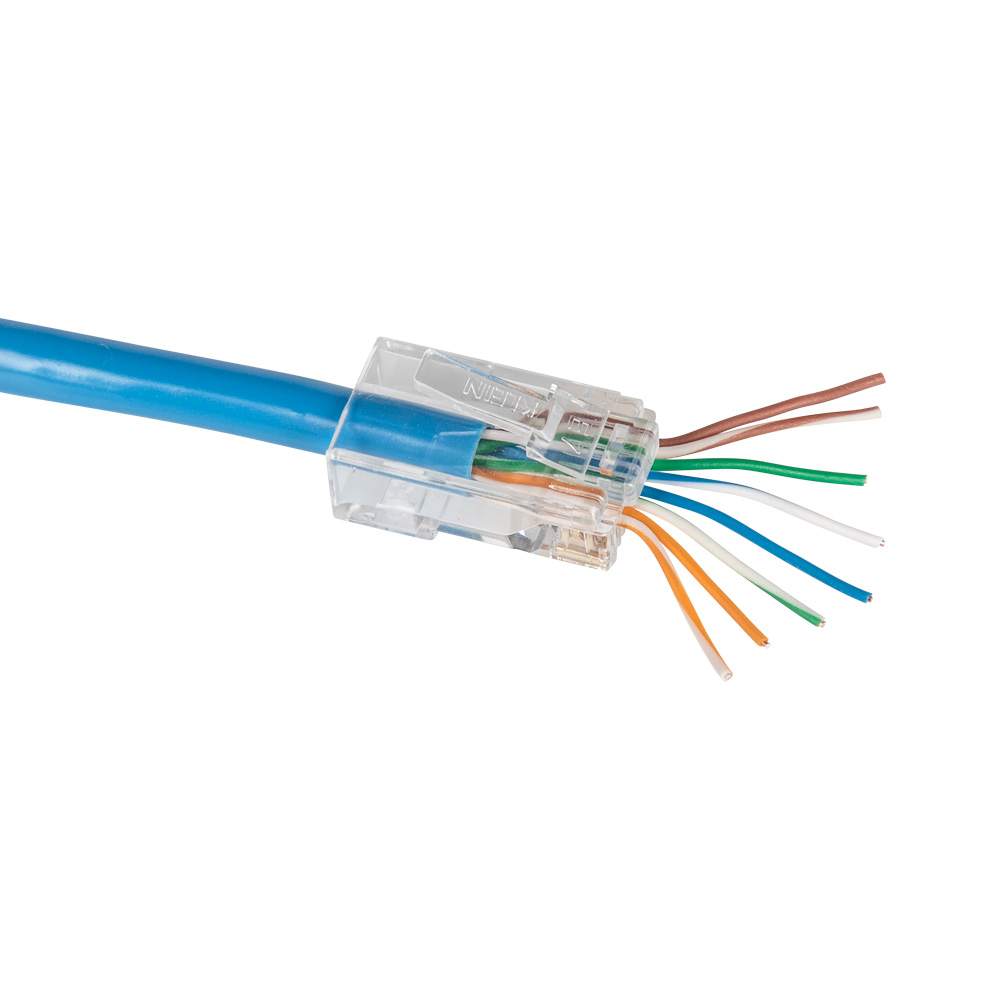

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

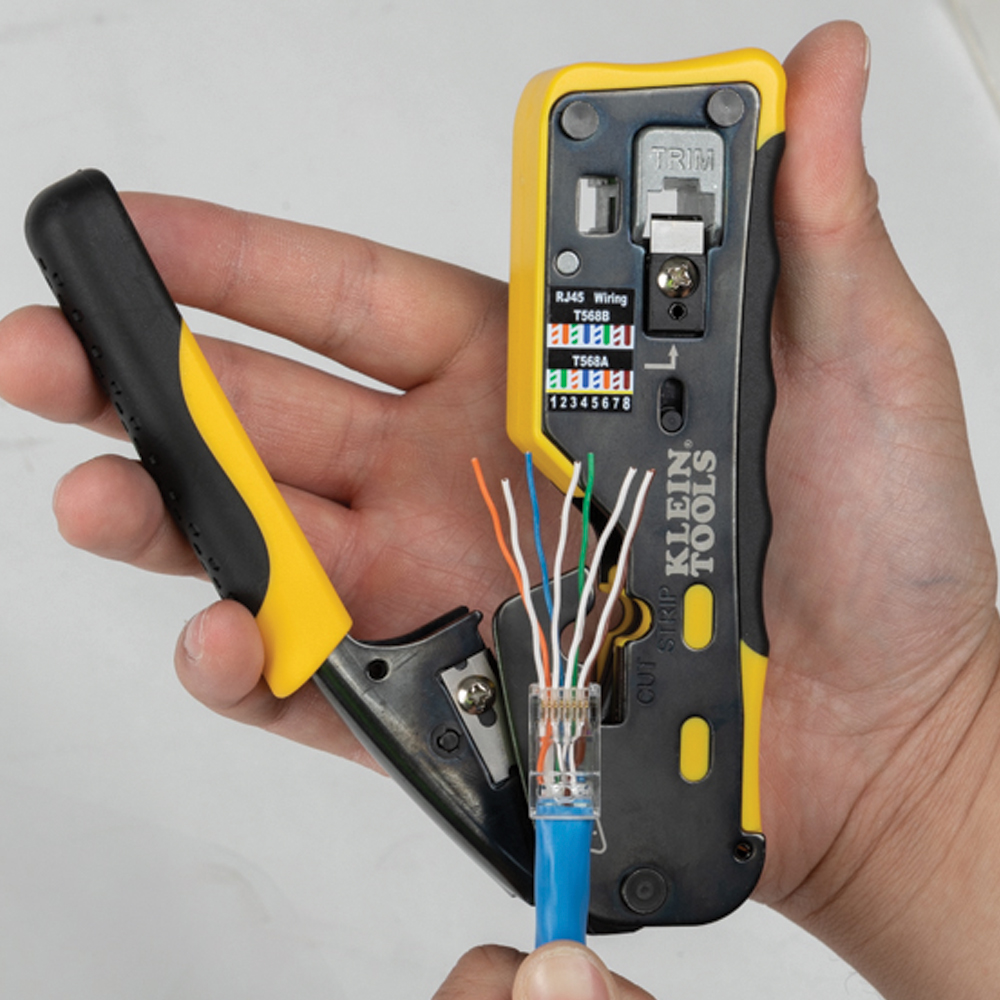

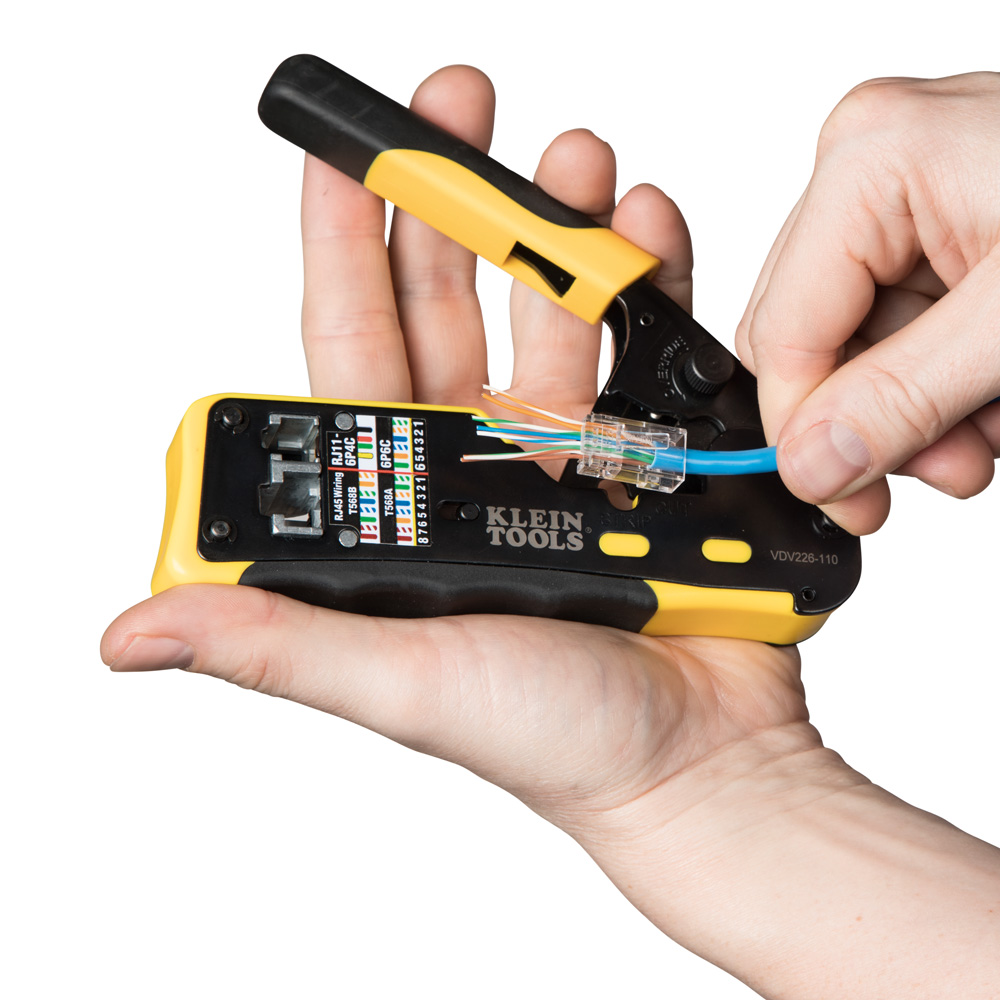

• Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
• 8 position, 8 contact pass-through type data plugs for solid or stranded wire
• Category 6A performance per TIA/EIA-568-B.2
• 50-Pack
• 50µ-inch gold plating on all contact surfaces
• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043” (1.01 mm)

• Type: Modular
• Application: Data
• Special Features: Pass-Thru™ Technology; Meets All PoE+ Standards
• Overall Length: 0.875” (2.2 cm)
• Overall Height: 0.453” (1.2 cm)
• Overall Width: 0.094” (0.2 cm)
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 50
• Weight: 4.8 oz (136 g)

• 092644583780
