Product Description

Description:

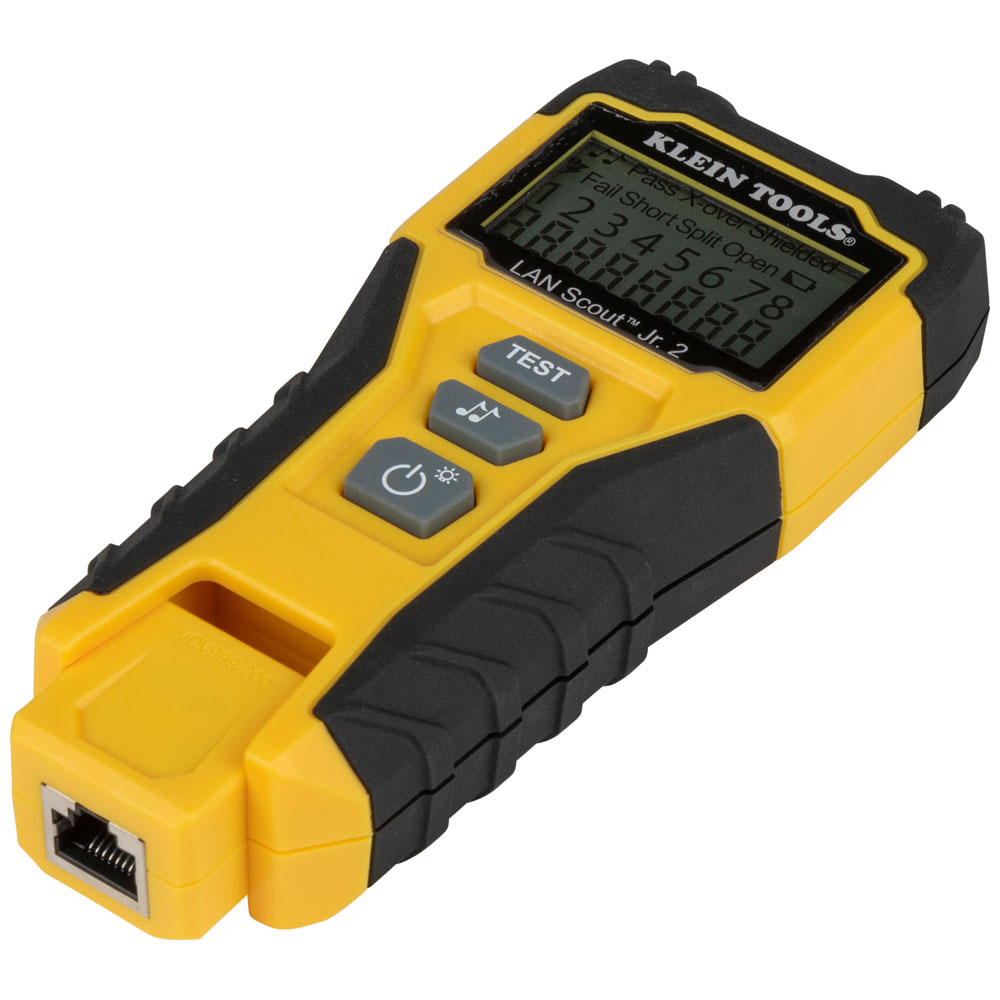

• The LAN Scout™ Jr. 2 Cable Tester tests installed or loose data (Cat 5e, Cat 6/6A) cables terminated with RJ45 connectors. It also tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface

Features:

• Cable tester for data (RJ45) terminated cables and patch cords

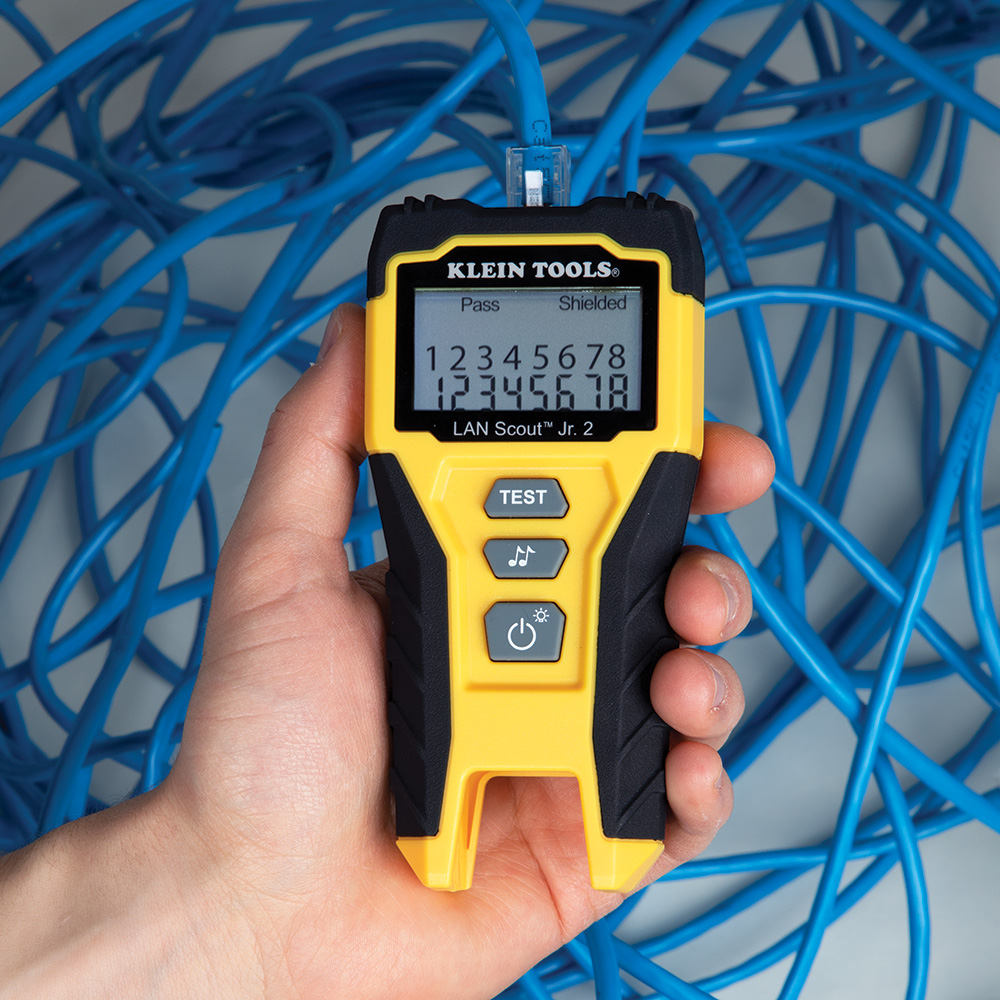

• Larger backlit LCD for low lit areas displays pin-to-pin wiremap results

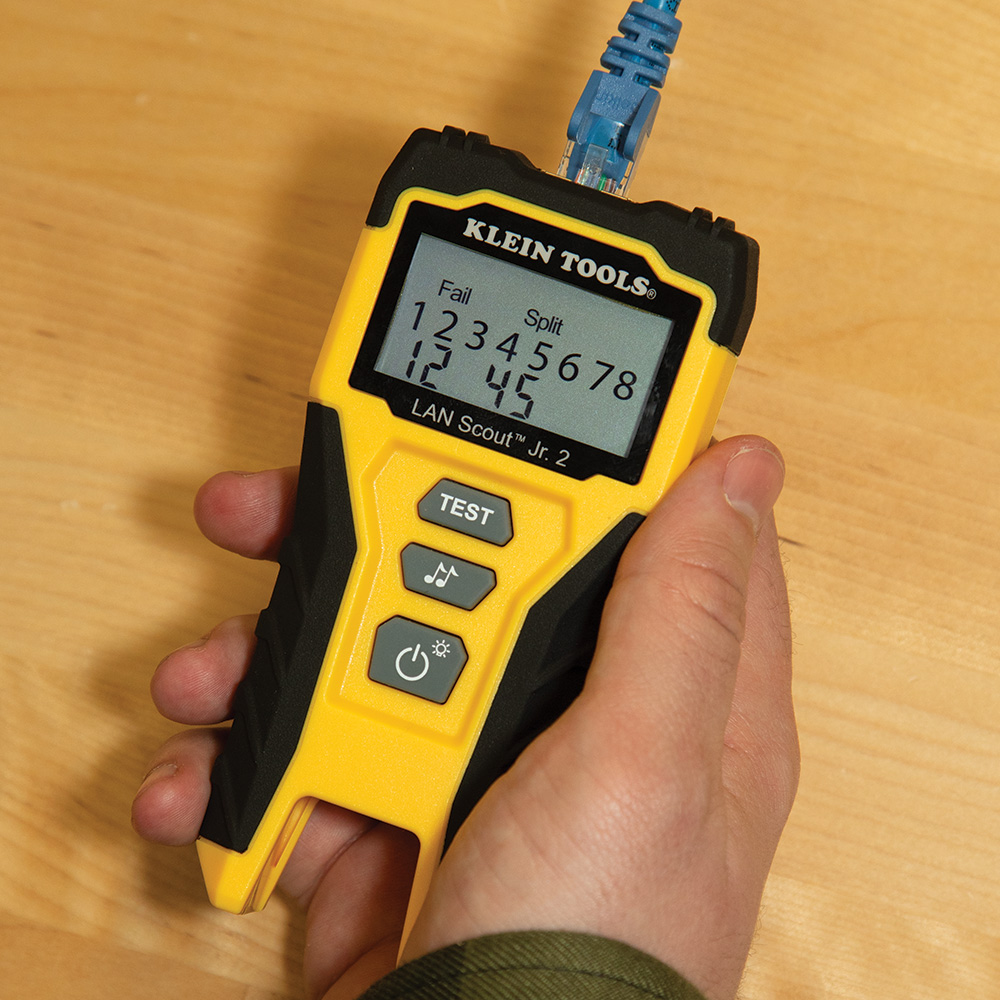

• Test for Open, Short, Miswire or Split-Pair Faults, Cross-Overs and Shields

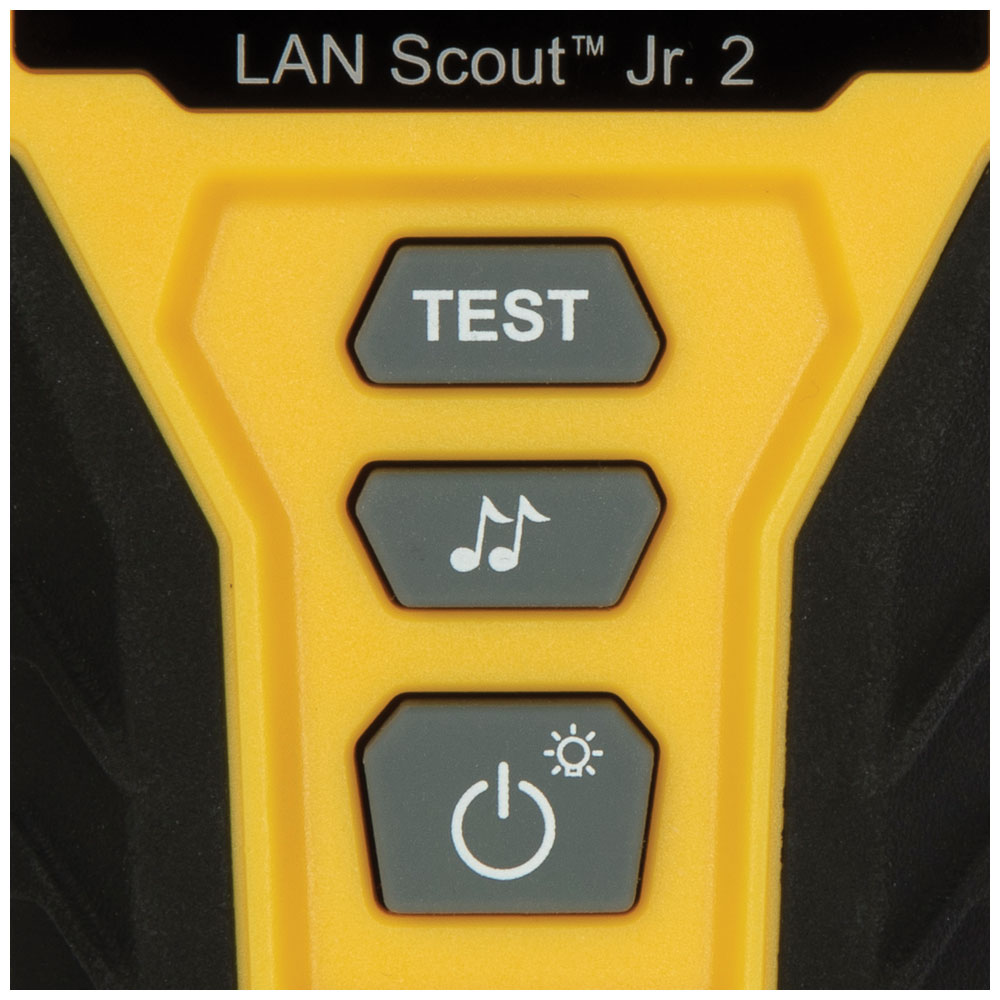

• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Tone on single wire, wire pairs or all 8 conductor wires
• Multiple style tone generator (solid/warble); requires probe Cat. No. VDV500-123 (sold separately)
• Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
• Soft, slip-resistant, rugged overmould for easy gripping and durability
• Replaceable 2 x AAA batteries (included)
• Replaceable self-storing remote (included)
• Replacement remote available; sold separately (Cat. No. VDV999-200)

Specifications:

• Type: DATA, Voice, LAN
• Application: Cable Testing
• Special Features: Backlit LCD
• Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
• Overall Length: 5” (13 cm)
• Overall Height: 1” (2.5 cm)
• Overall Width: 2.5” (6.4 cm)
• Material: Plastic and Stamped Metal
• Test-n-Map ID Remotes: 1
• Location ID: No
• Batteries: 2 × AAA Alkaline
• Battery Life: Active: 80 hrs; Standby: 3 yrs.
• Drop Protection: 2′ (0.6 m)
• Supported Remotes: (1) Self-Storing

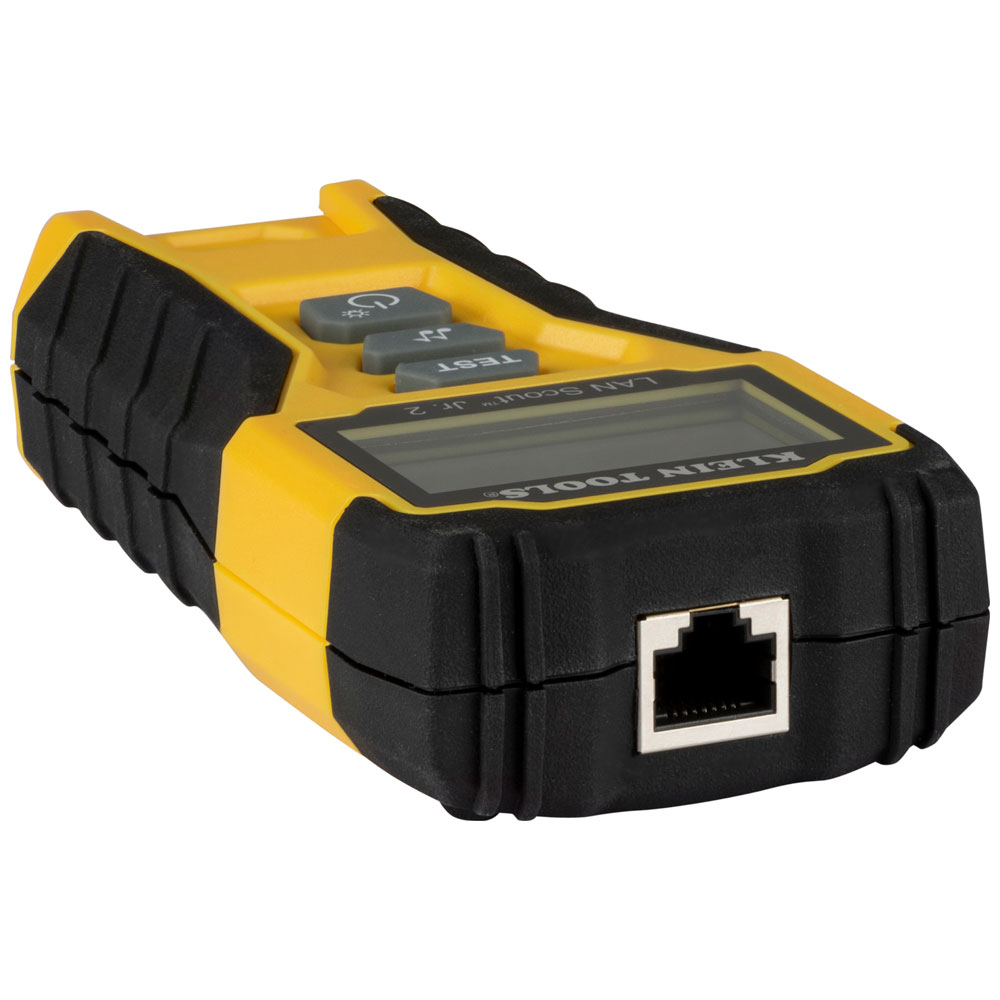

• Connection & Adapter Types: RJ45
• Display: LCD
• Multiple Style Tone Generator: Yes
• Faults detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
• Testing & Measurement Types: Data, RJ45
• Weight: 4.3 oz (122 g)

Includes:

• Tester, Remote, 2 × AAA Alkaline Batteries

UPC:

• 092644583544
