Product Description

Description:

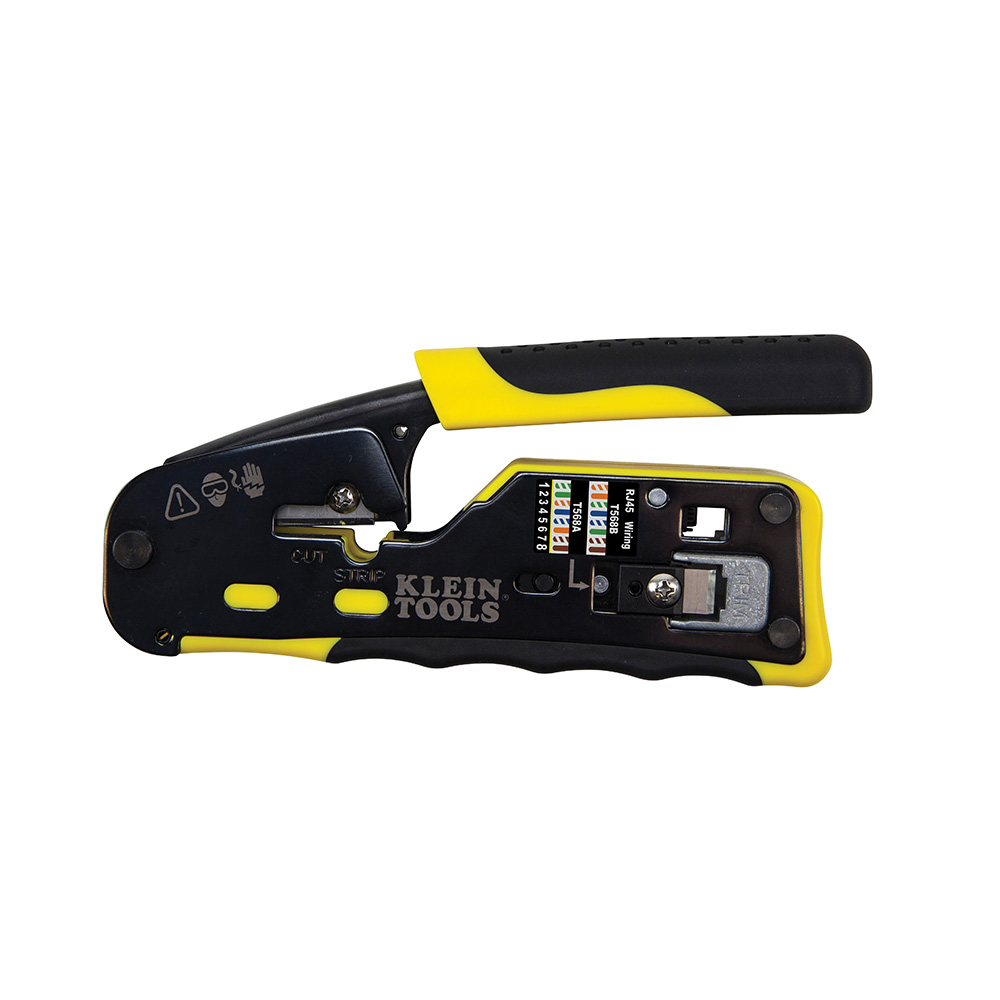

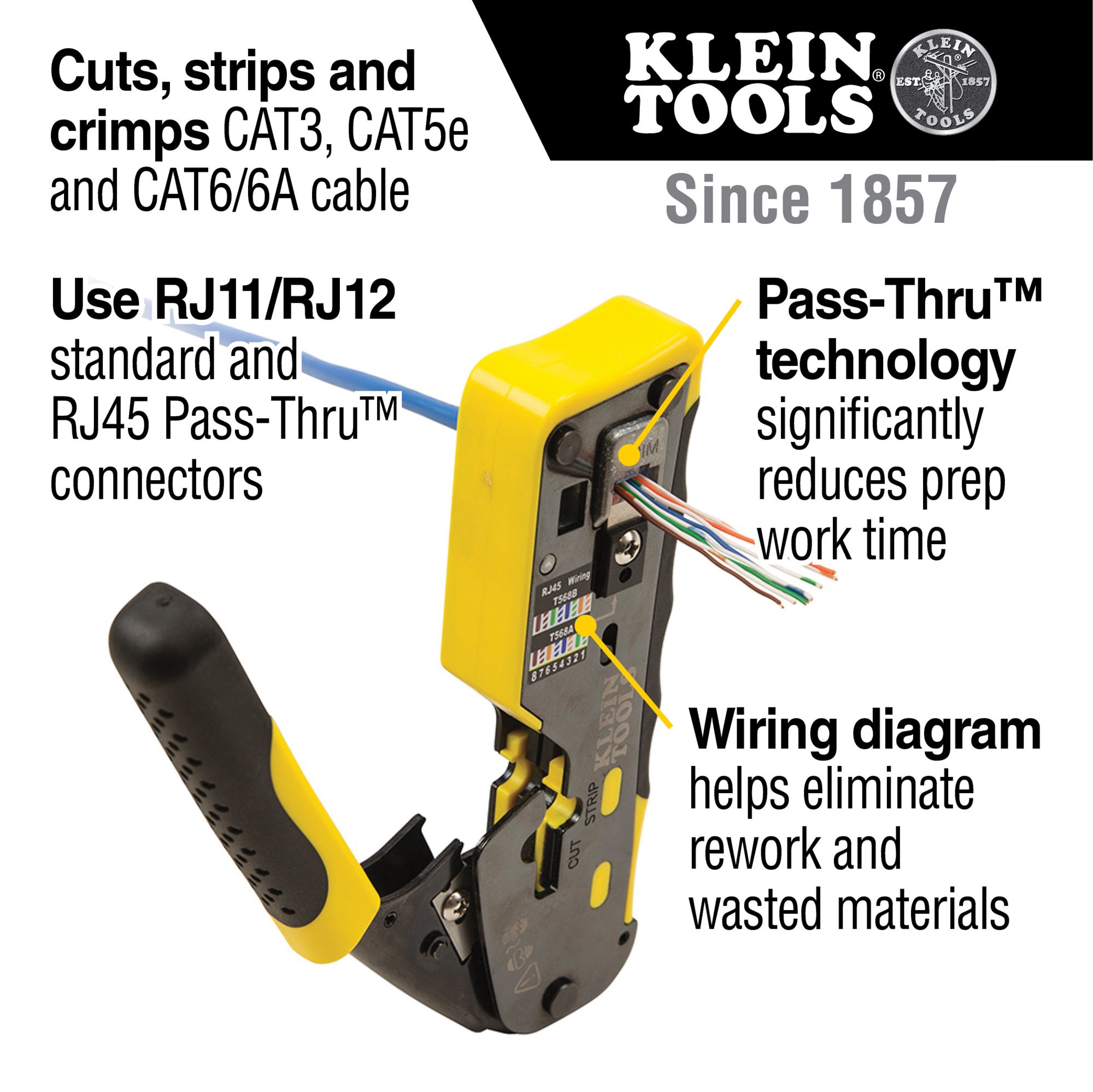

• Klein Tools Coax Cable Crimper / Wire Stripper / Wire Cutter is a premium, long lasting tool for CAT3, CAT5e and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru™ connectors. Pass-Thru™ technology significantly reduces prep work times; wiring diagram on the tool helps eliminate re-working and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (in packs of 10, 50 or 200)

Features:

• Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plugs
• Wire stripper, crimper and cutter all-in-one tool, for STP/UTP paired-conductor data cables
• Trims flush to the end face of the connector to eliminate unintended contact between conductors
• Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
• Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)
• Full-cycle ratchet mechanism ensures complete connector termination
• On-tool wiring guide helps minimise wiring errors
• Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
• Rubber grip for added comfort
• Ratcheting locking mechanism
• Use with Klein Tools Pass-Thru™ Connectors
• Not for use with standard (non Pass-Thru™) connectors
• Replacement blade set available (VDV999-076)

Specifications:

• Type: Crimper
• Application: Cable Connection
• Material: Steel with Black Oxide
• Handle Colour: Yellow/Black
• Cuts and Strips: Paired Conductor Data Cable (Round STP/UTP); Flat-Satin Phone Cable
• Cable type: CAT3, CAT5e, CAT6/6A
• Connector type: RJ45 Klein Tools Pass-Thru™ and RJ11, RJ12 Standard
• Position/Pair/Conductors: 4-position, 1-pair/2-conductor, 4-position, 2-pair/4-conductor 6-position, 2-pair/4-conductor, 6-position, 3-pair/6-conductor, 8-position, 4-pair/8-conductor
• Overall Length: 6.094” (15.5 cm)
• Weight: 14.4 oz (408 g)

UPC:

• 092644690945
