Product Description

Features:

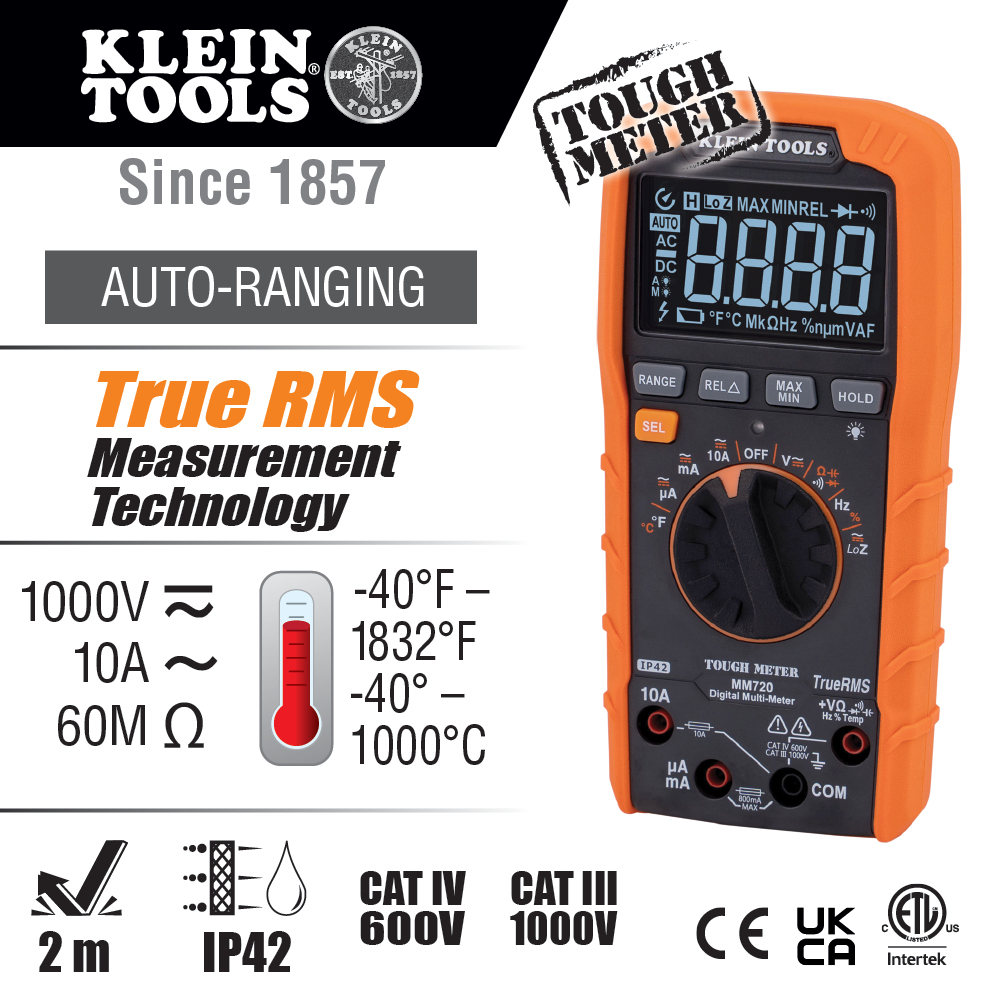

• Multimeter with automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
• Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance, plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity

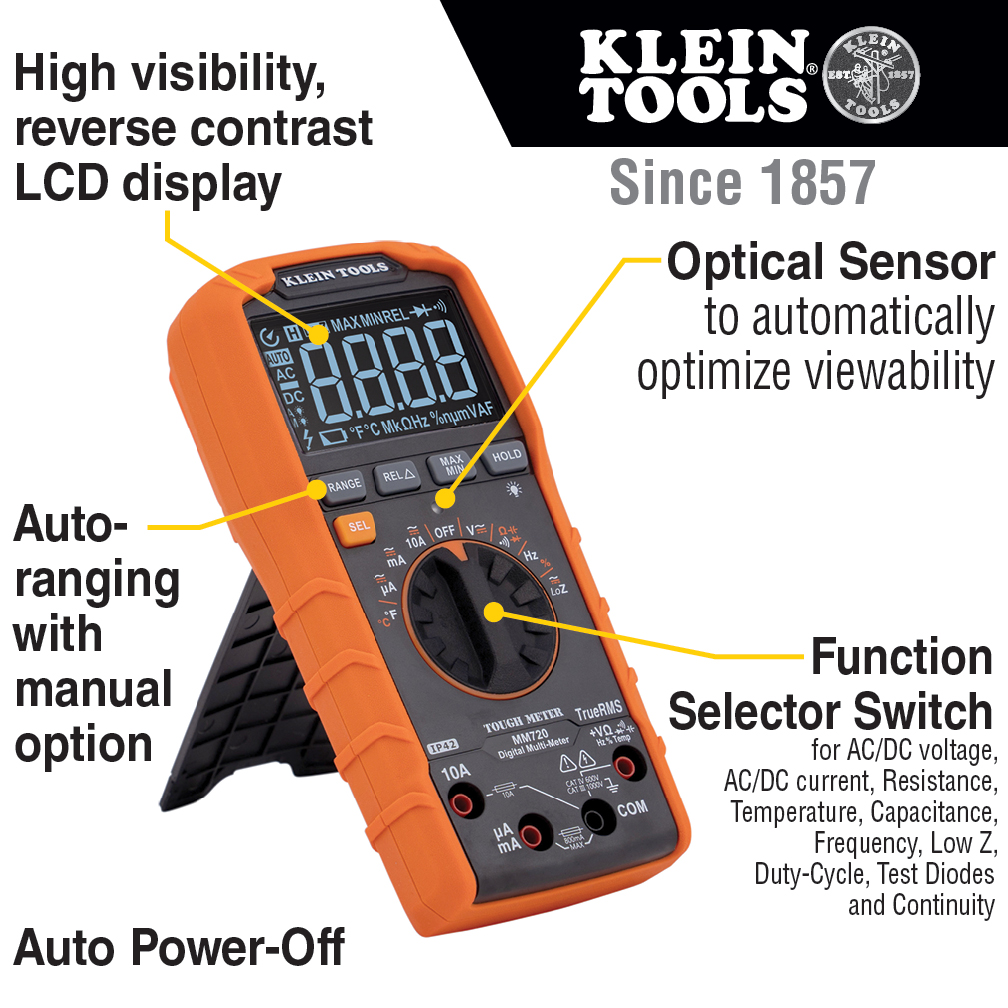

• High visibility, reverse contrast display with optical sensor, to automatically optimise viewability in dark or bright ambient lighting
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

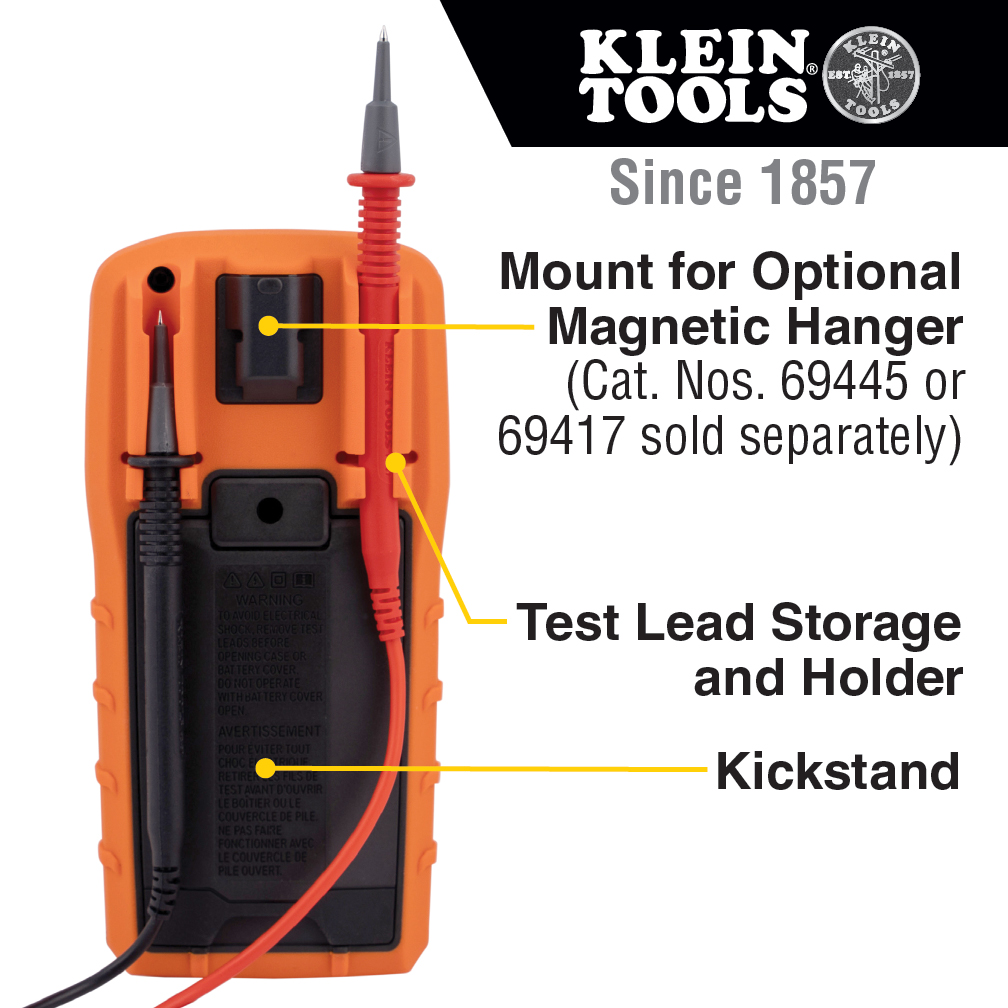

• Low battery indicator and easily accessible battery and fuse compartment
• Tough meter is built to withstand a 6.6′ (2 m) drop and is rated IP42

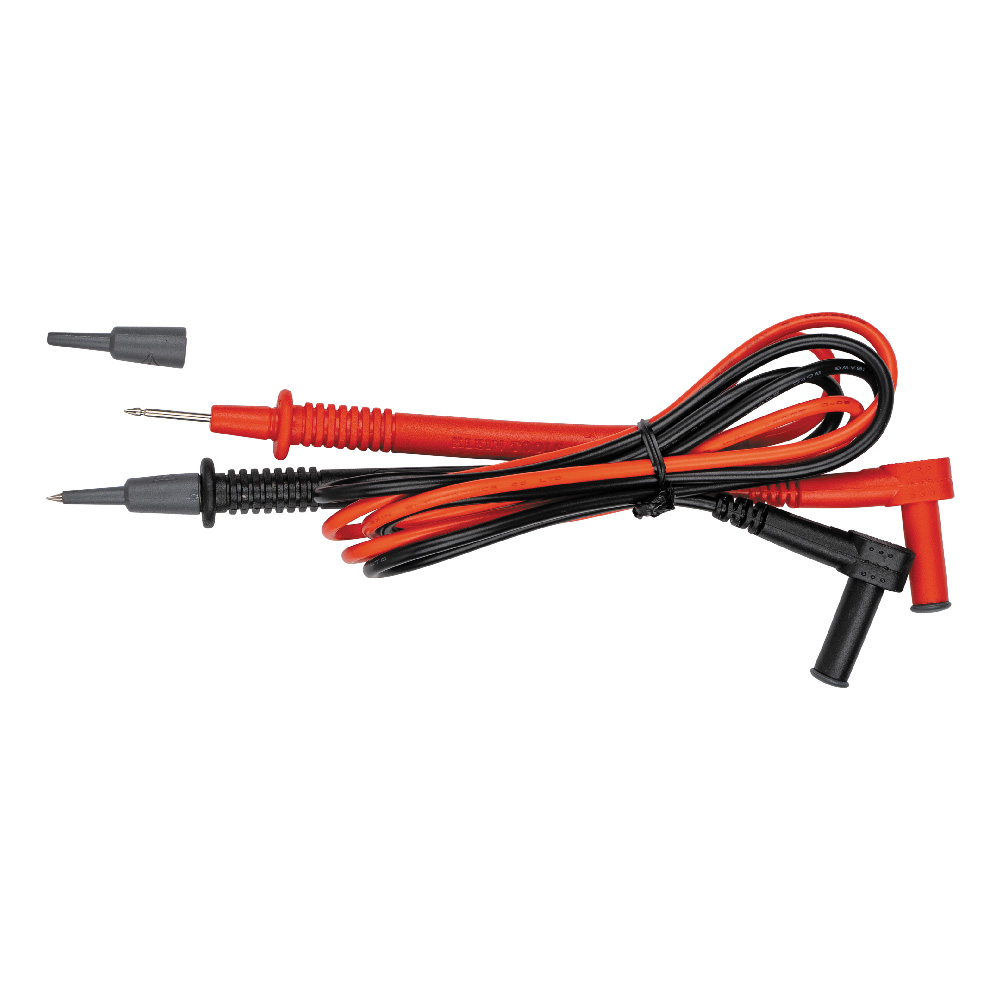

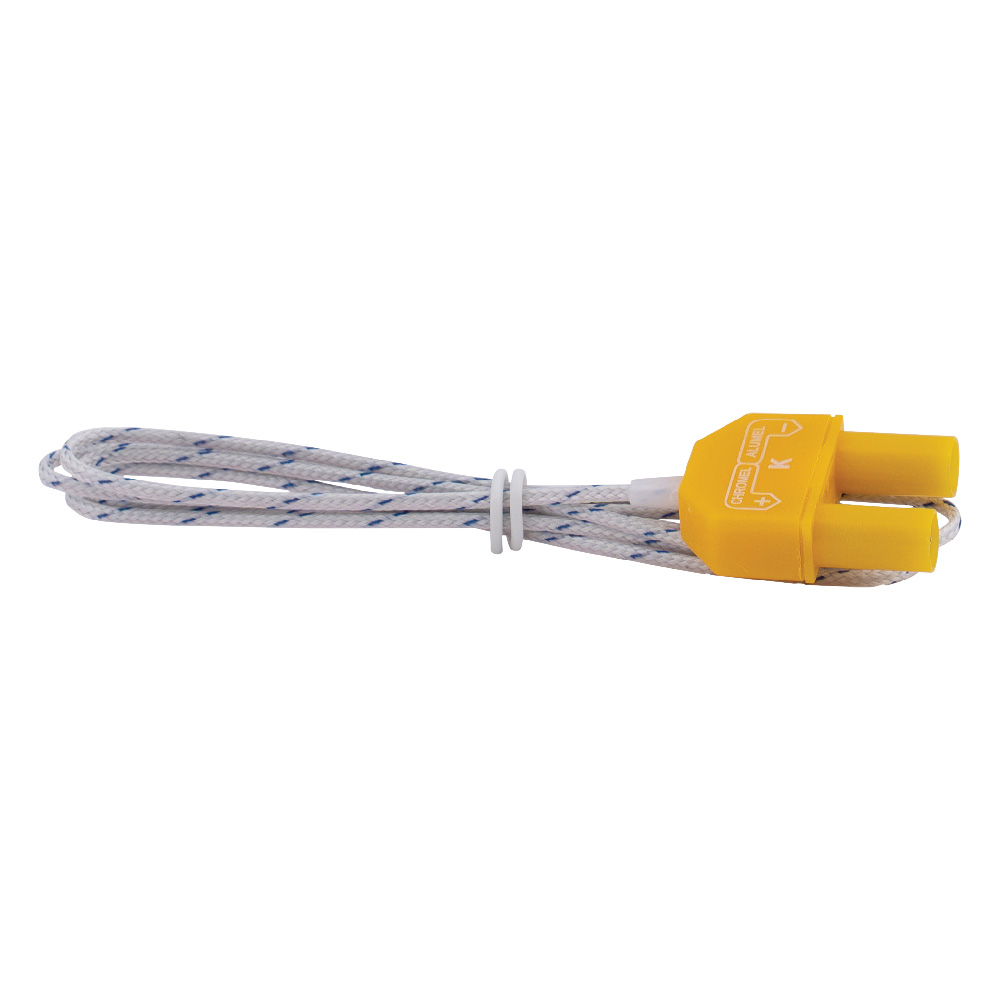

• Includes carrying pouch, test leads, thermocouple with adapter, and batteries
• CAT IV 600 V safety rating
• For use in basic and controlled electromagnetic environments, such as residential, business and light-industrial locations

Specifications:

• Type: Digital Multimeter
• Application: Testing and Measuring Voltage
• Special Features: High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
• Material: ABS, Electrical Components
• Batteries: 2 x AAA
• Drop Protection: 6.6′ (2 m)
• Display: 6000 Count LCD
• Colour: Orange/Black
• Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes and Continuity
• Voltage: 1000 V AC/DC
• Frequency: 1 Hz – 500 KHz
• Current: 10 A AC/DC
• Capacitance: 6000 µF
• Ohms (Resistance): 60MΩ
• Ingress Protection: IP42
• Standard: CAT IV 600 V; CAT III 1000 V
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Overall Length: 6.94” (17.6 cm)
• Overall Height: 1.88” (4.7 cm)
• Overall Width: 3.37” (8.5 cm)
• Weight: 12.2 oz (345 g)

Includes:

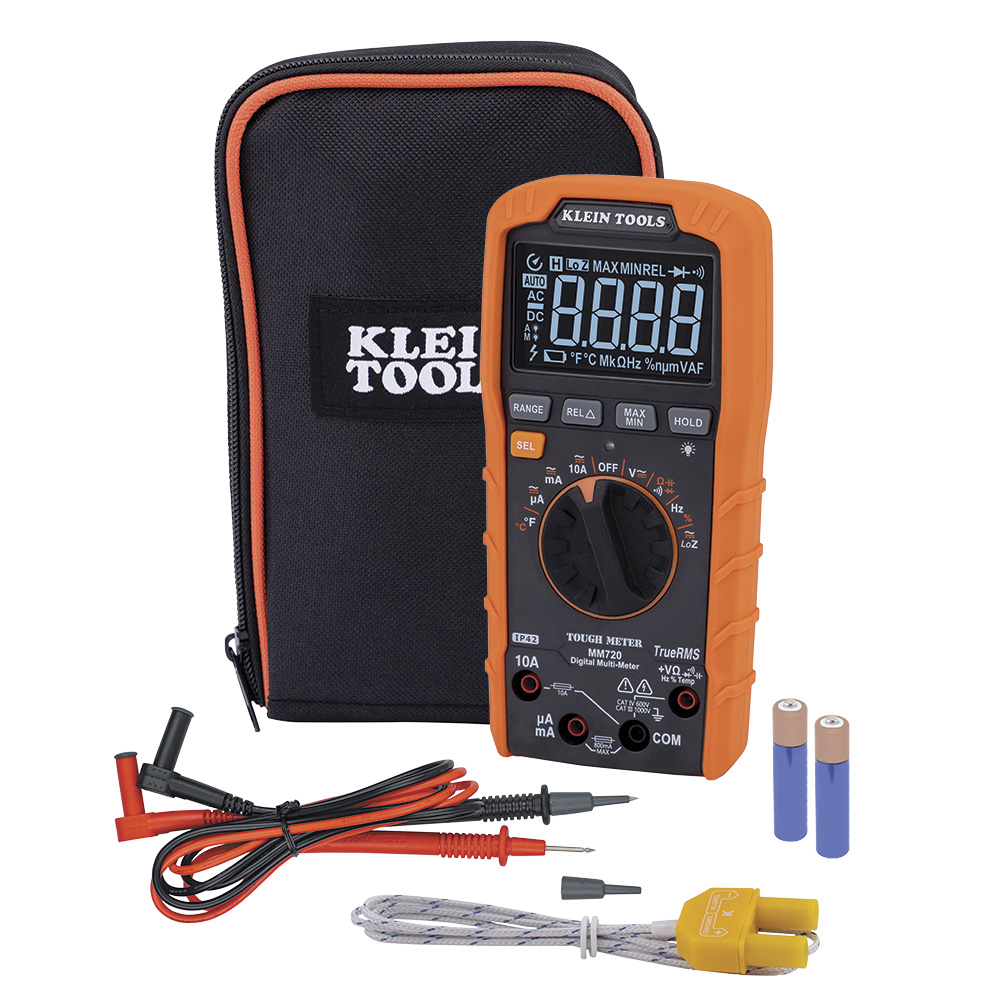

• Digital Multimeter; Carrying Case; Test Leads; Thermocouple; Batteries and User Manual

UPC:

• 092644693762
