Product Description

Features:

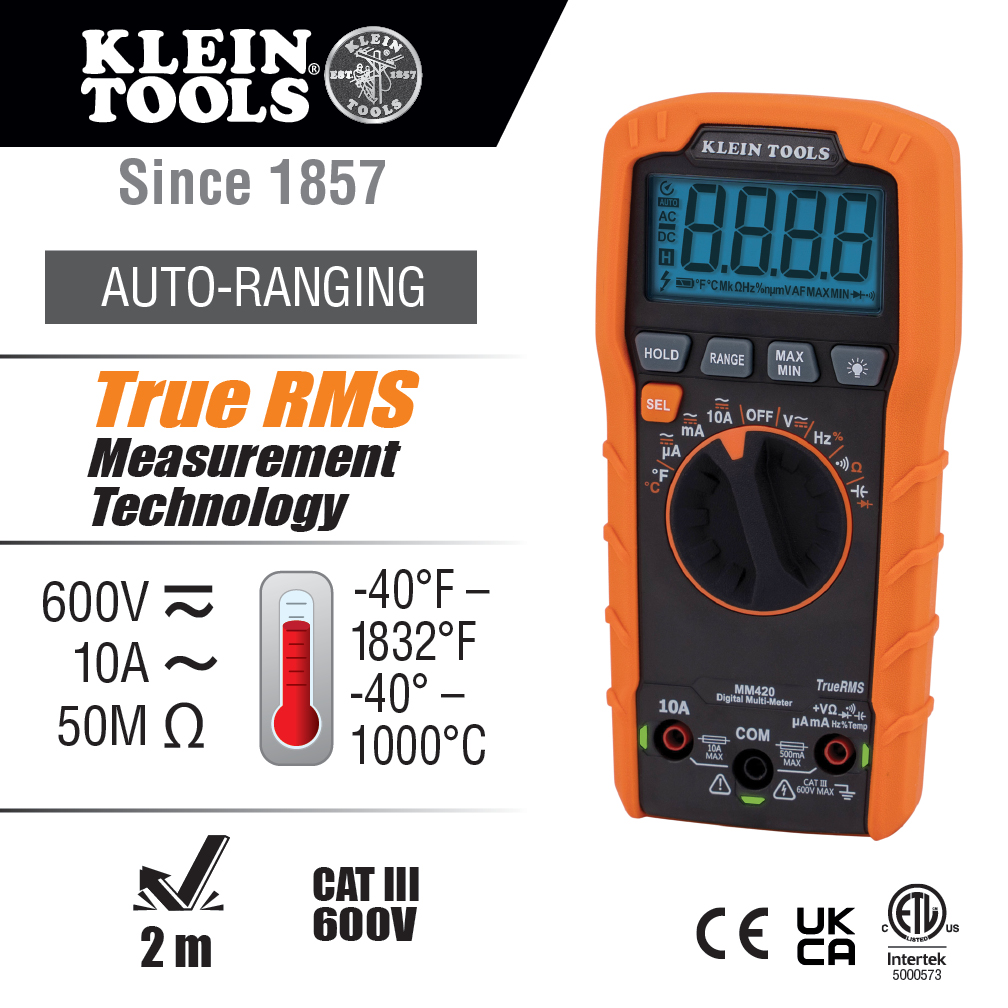

• Multimeter with automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
• Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle and test diodes
• Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
• Low battery indicator and easily accessible battery and fuse compartment
• Durable meter built to withstand a 6.6′ (2 m) drop

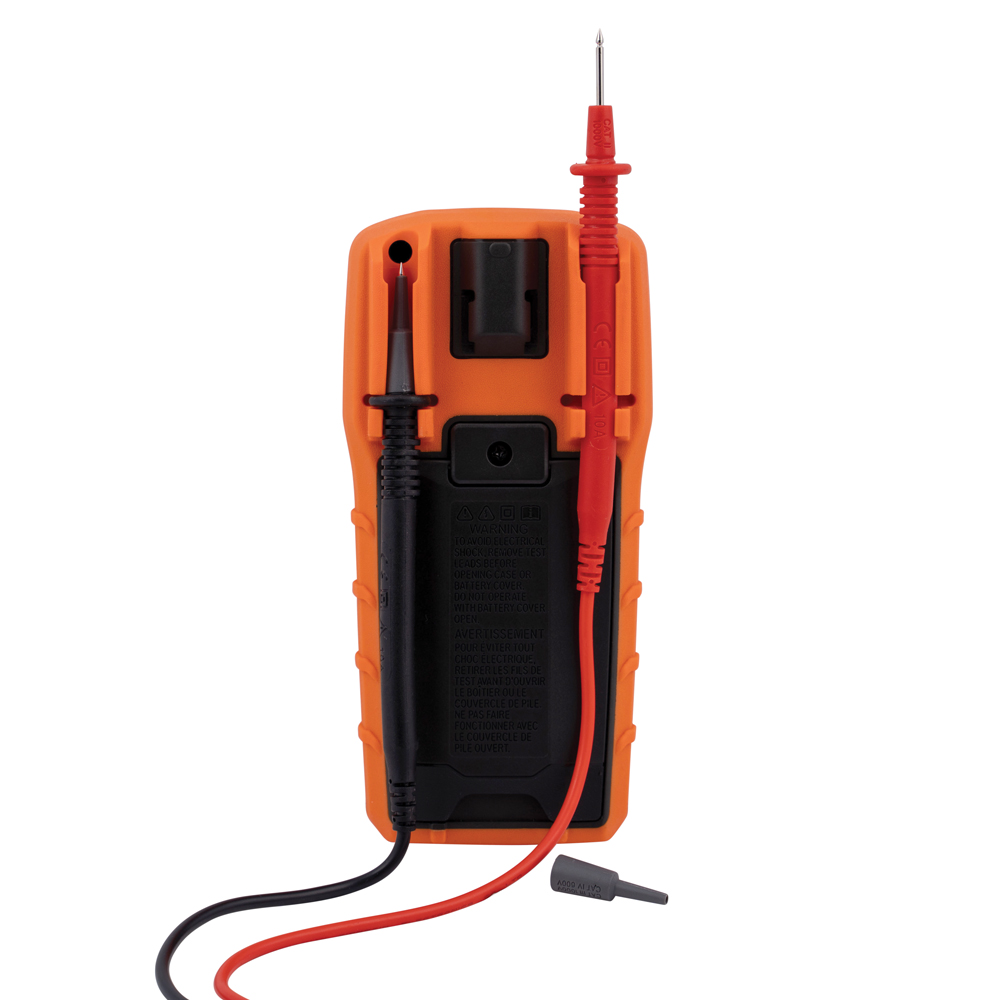

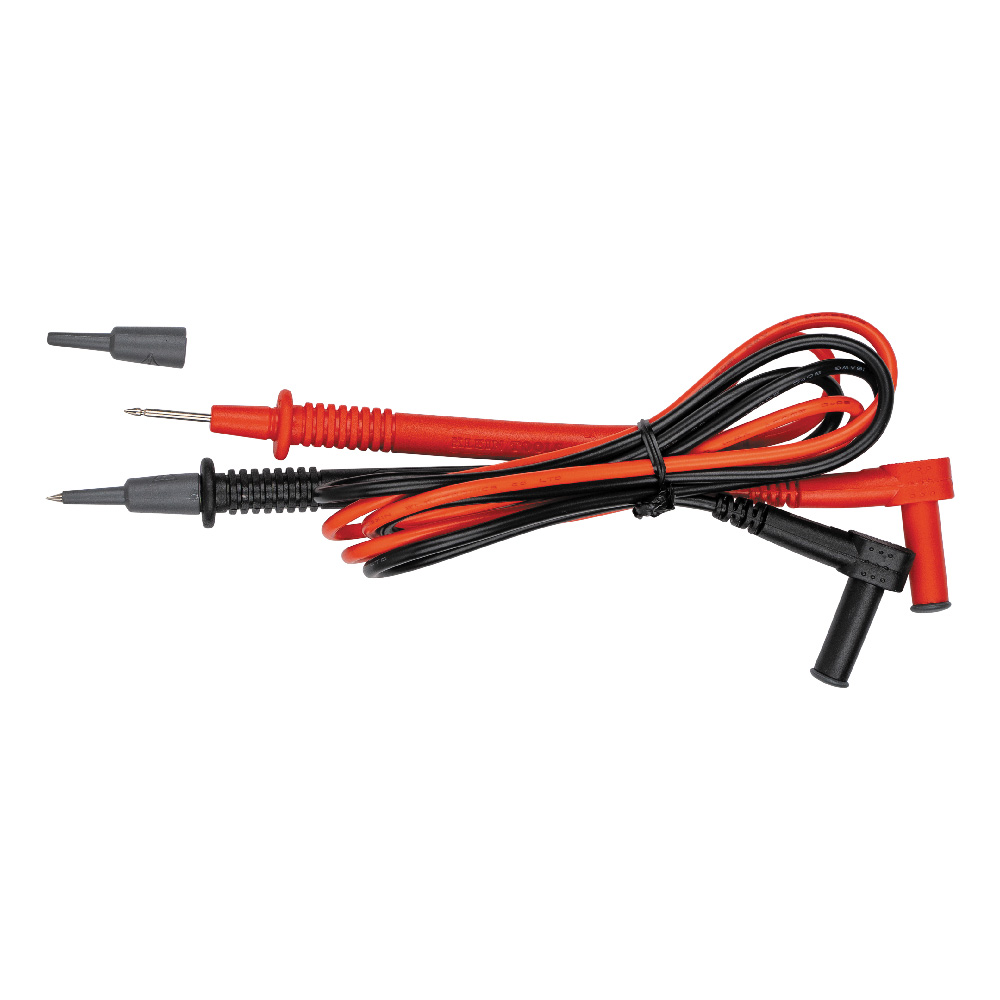

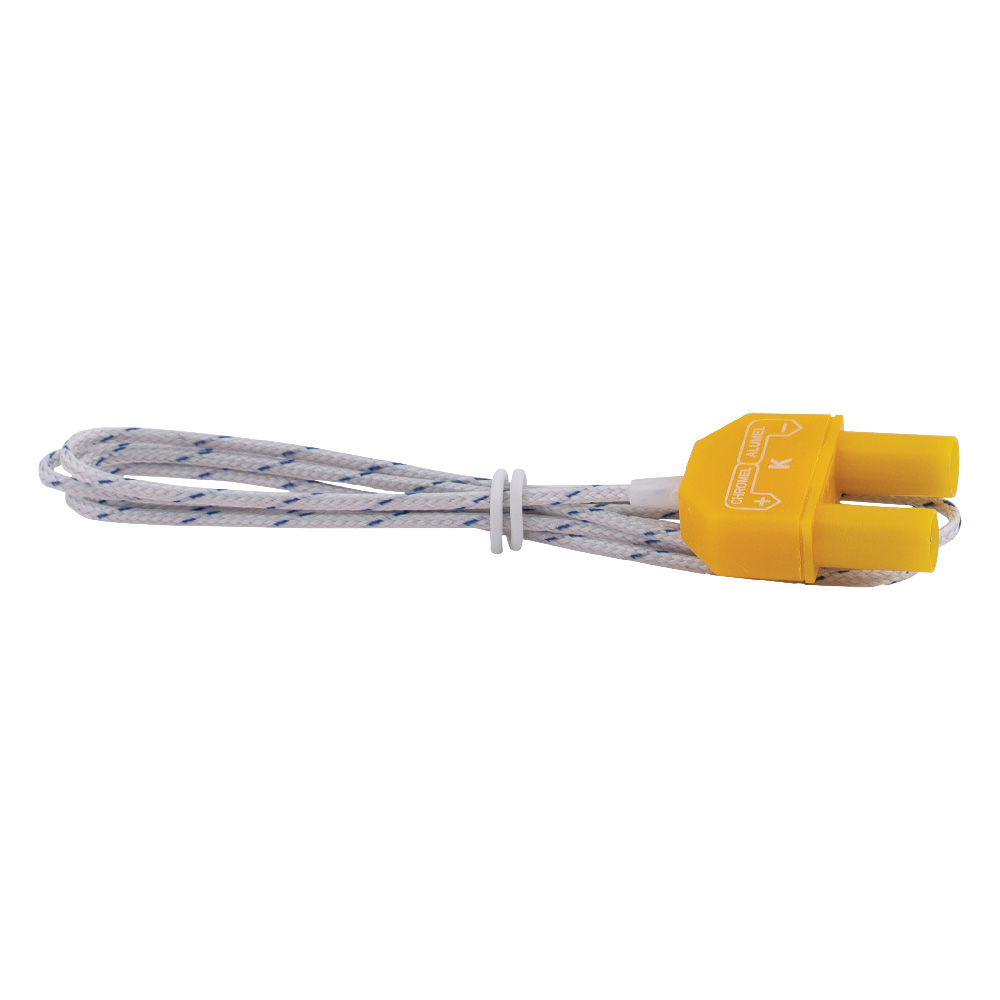

• Includes test leads, thermocouple with adapter, batteries and user manual
• CAT III 600 V safety rating
• For use in basic and controlled electromagnetic environments, such as residential, business and light-industrial locations

Specifications:

• Type: Digital Multimeter
• Application: Testing and Measuring Voltage

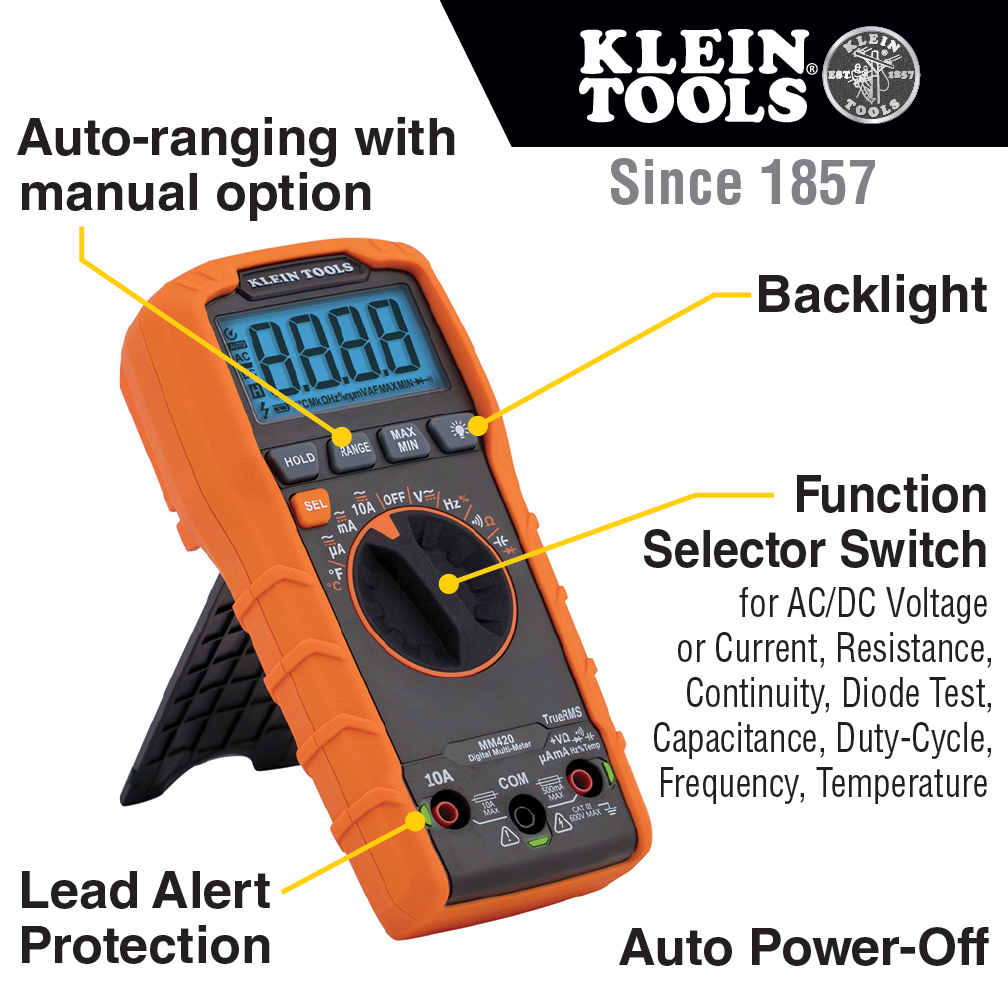

• Special Features: Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
• Material: ABS, Electrical Components
• Batteries: 2 x AAA
• Drop Protection: 6.6′ (2 m)
• Display: 4000 Count LCD
• Colour: Orange/Black
• Functions: Measures up to 600V AC/DC Voltage, 10A AC/DC Current, 50MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes and Continuity
• Voltage: 600 V AC/DC
• Frequency: 1 Hz – 50 KHz
• Current: 10 A AC/DC
• Capacitance: 400 µF
• Ohms (Resistance): 50MΩ
• Standard: CAT III 600V; CE and UKCA Certified
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Overall Length: 6” (15.2 cm)
• Overall Height: 1.78” (4.5 cm)
• Overall Width: 3.16” (8 cm)
• Weight: 8.2 oz (231 g)

Includes:

• Digital Multimeter; Test Leads; Batteries; Thermocouple; User Manual

UPC:

• 092644693748
