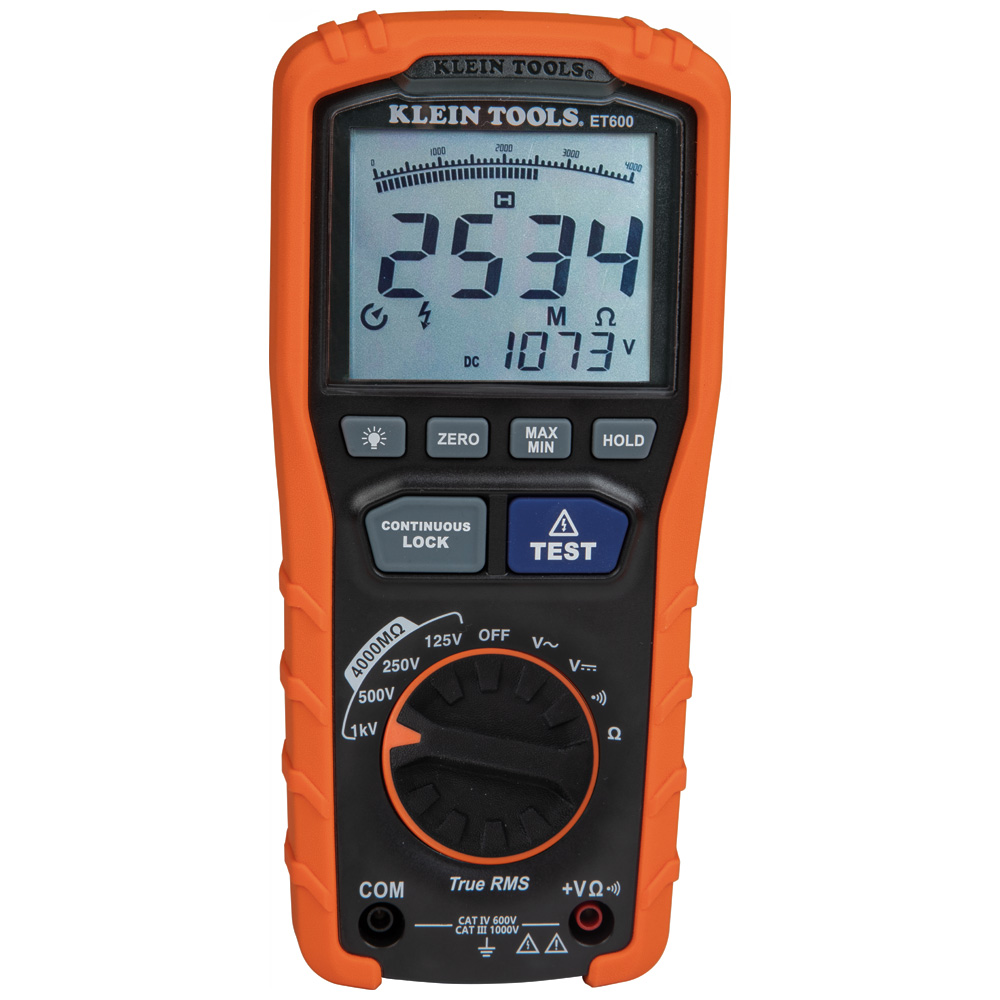

Product Description

Features:

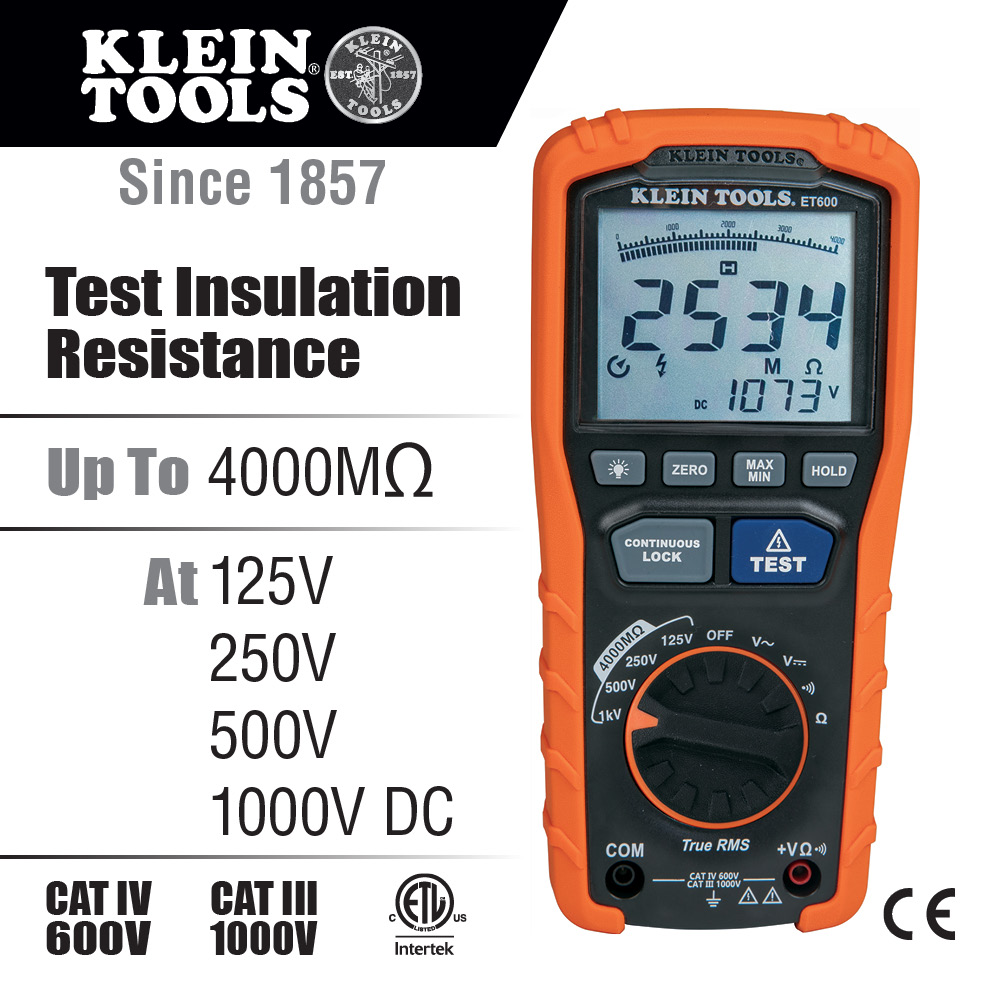

• Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V and 1000V DC
• Megohmmeter with test and lock buttons for simple insulation testing
• Warning alarm and high voltage icon for detection of voltage
• Measures up to 1000V AC/DC, resistance and continuity
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

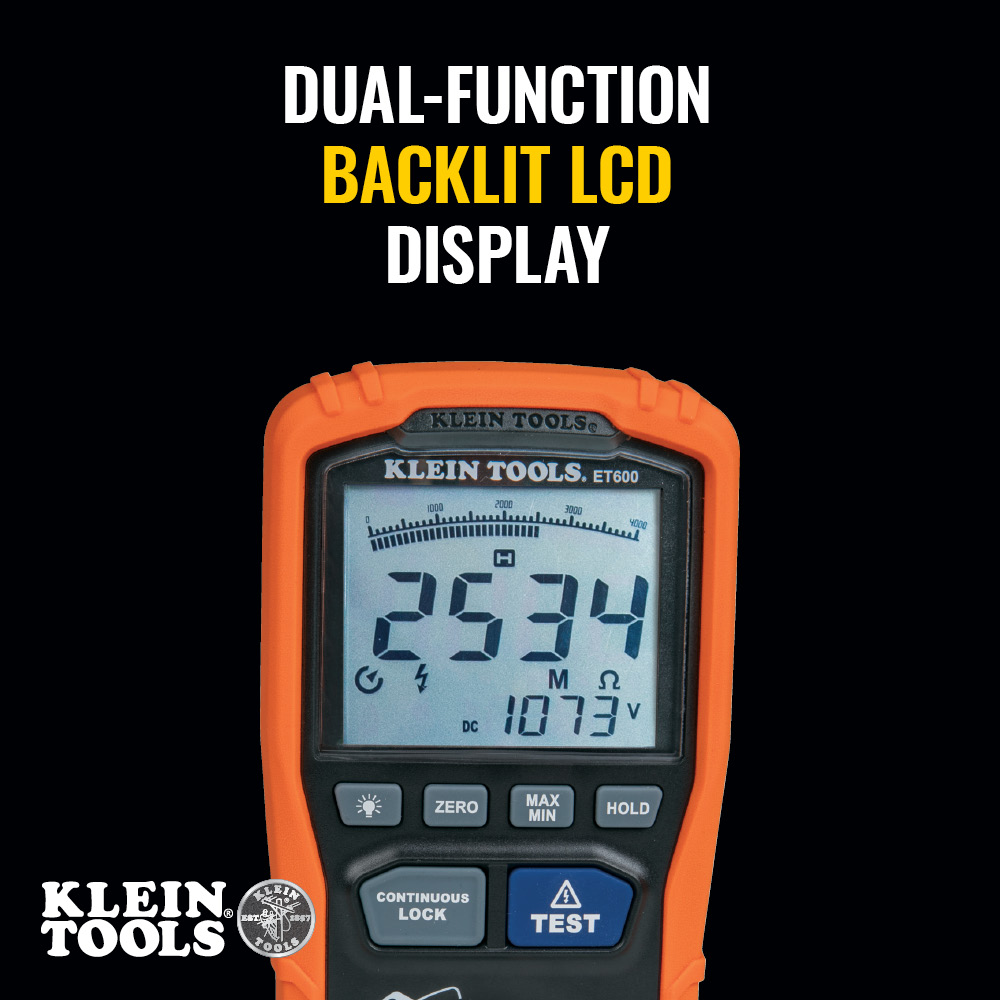

• Backlit display with bar graph, Auto-Power Off, High Voltage, Max/Min and Hold icons

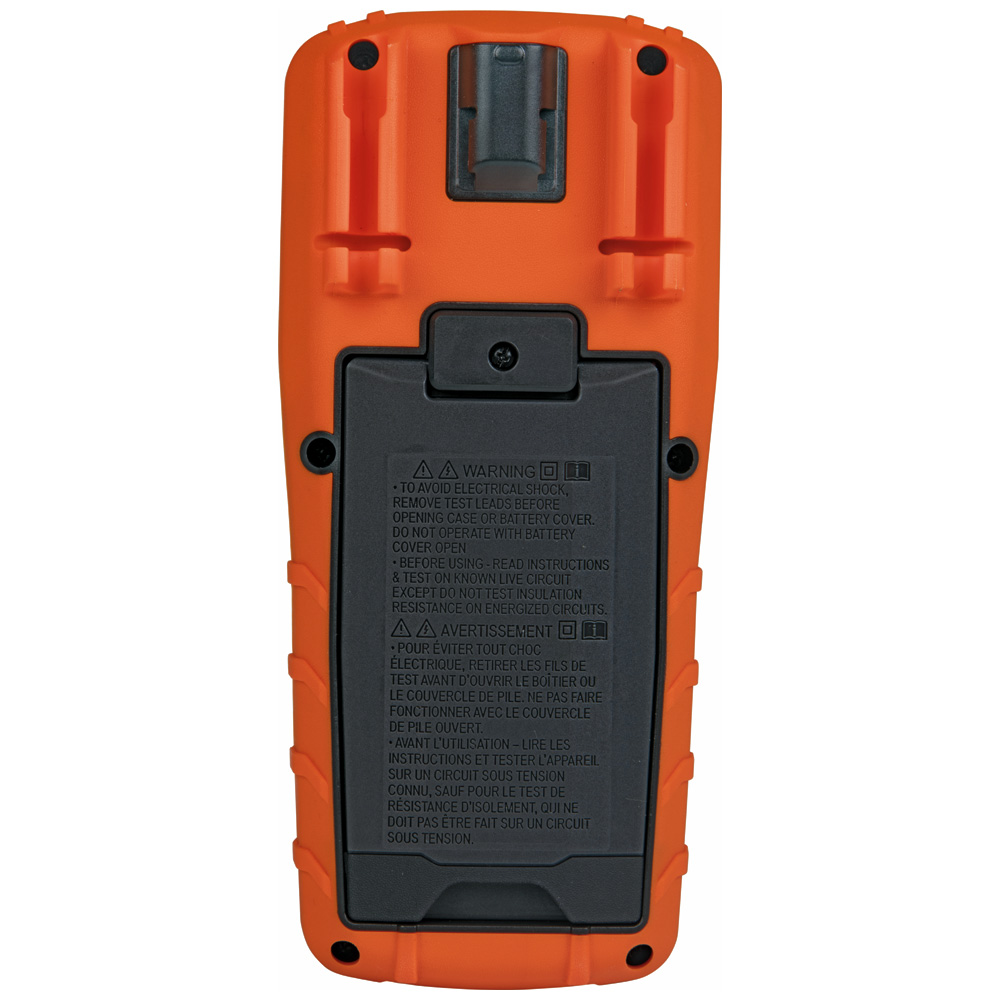

• Low battery indicator with easily replaceable battery and fuse

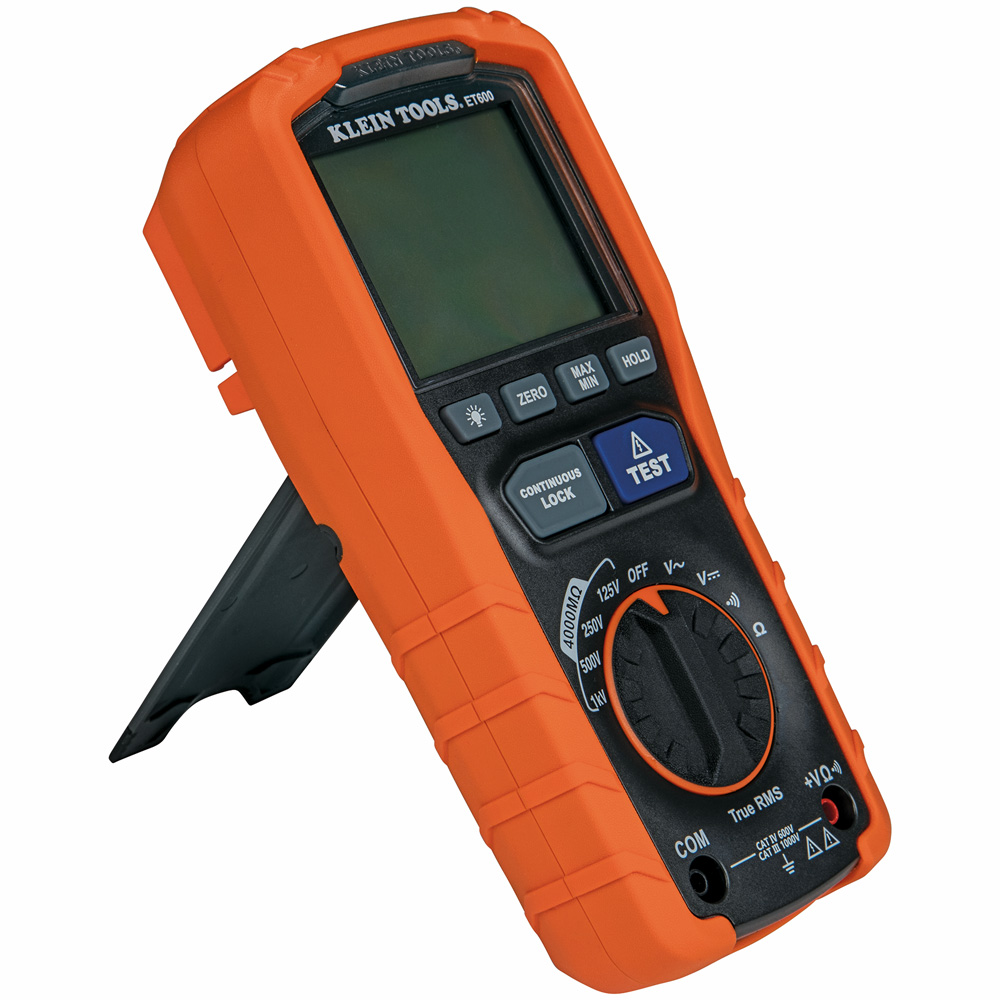

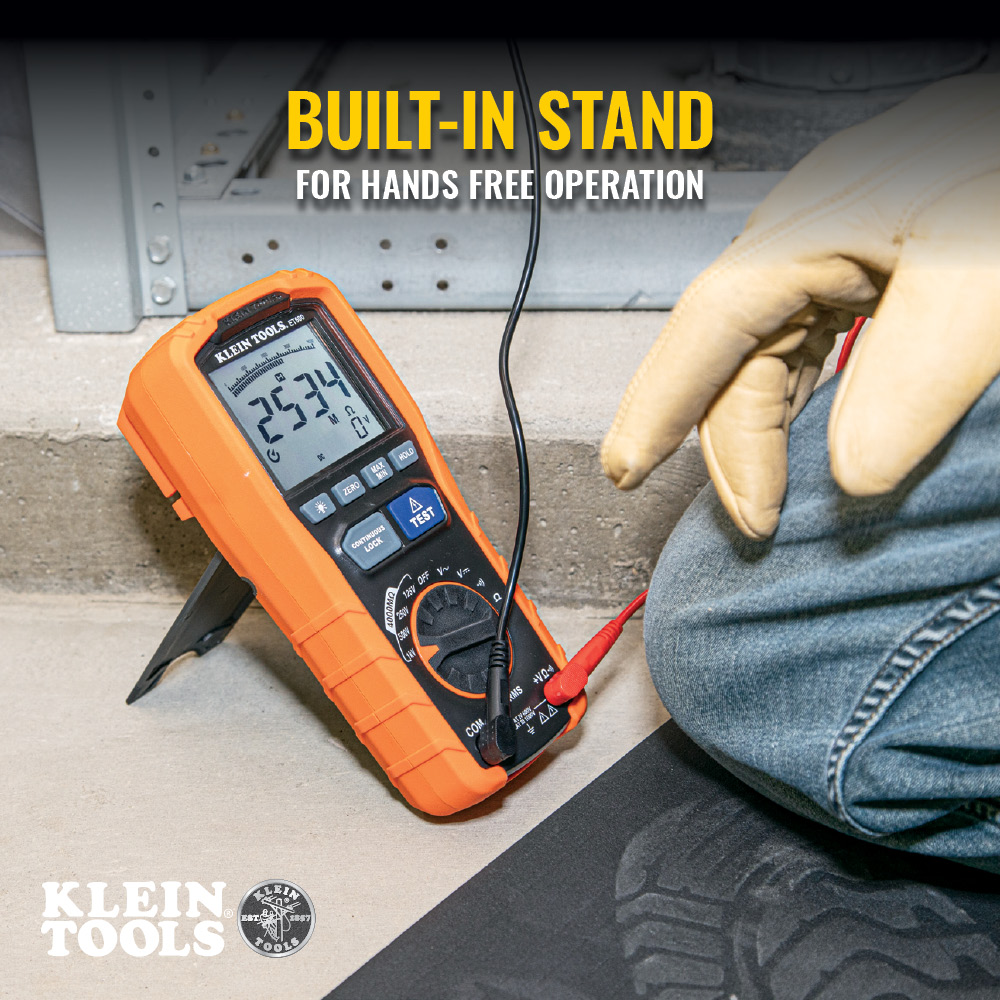

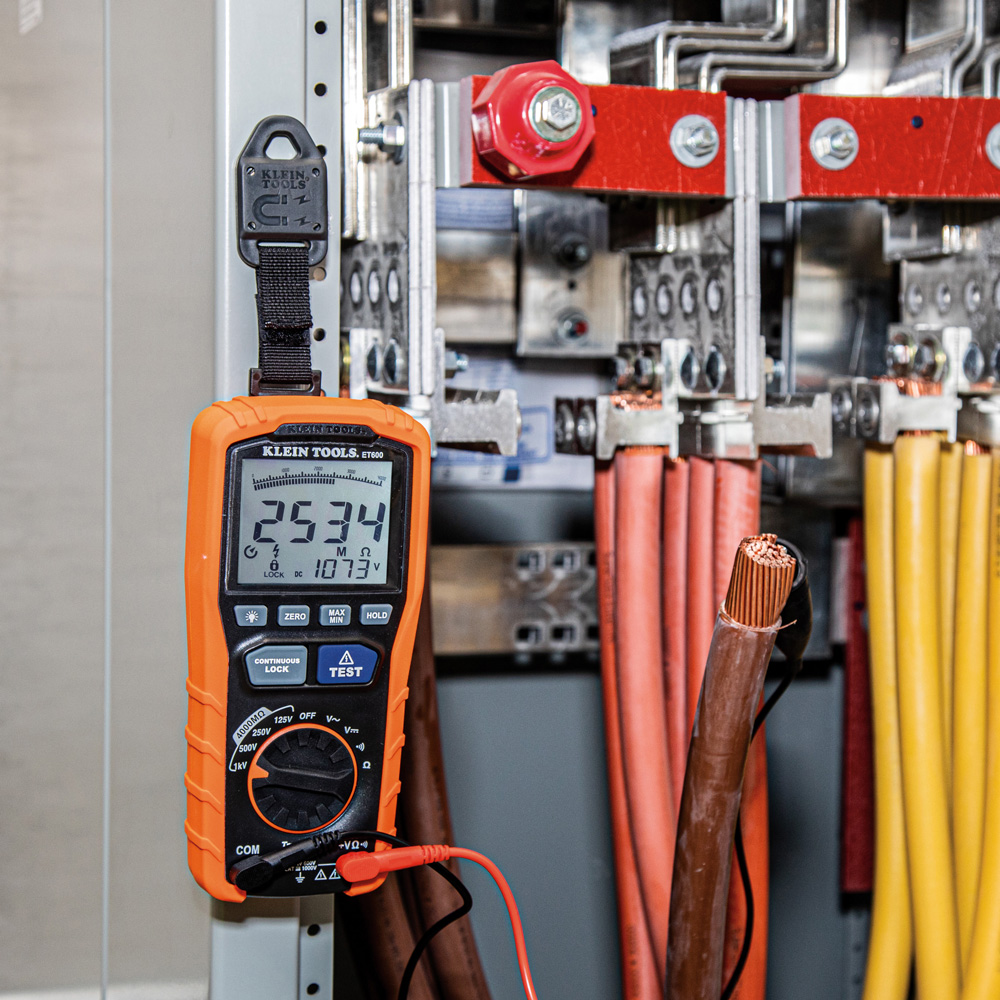

• Built-in stand and optional magnetic hanger for hands-free operation
• Test verification of conformity to EN61557-1,-2,-4
• CAT IV 600V and CAT III 1000V safety rating

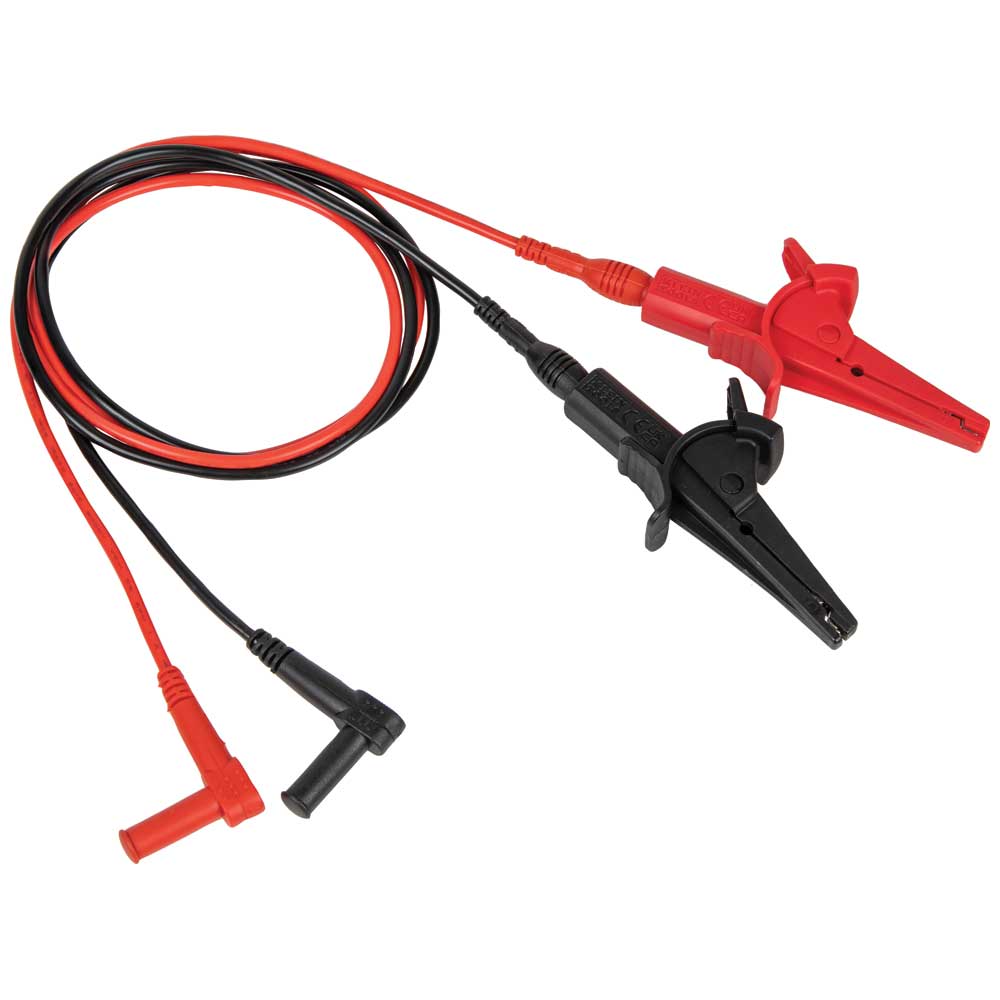

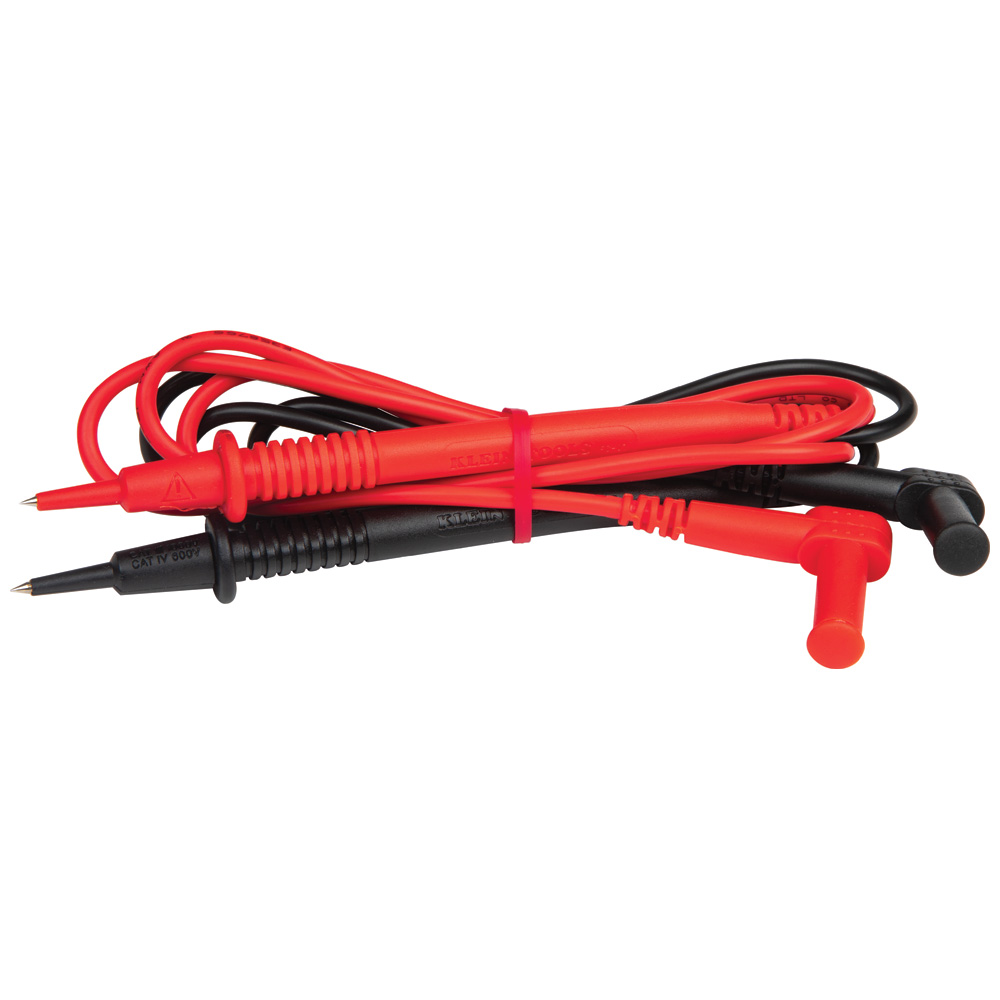

• Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads

Specifications:

• Type: Insulation Resistance Tester
• Application: Installation, Troubleshooting and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance and Continuity
• Special Features: Lock Button for Insulation Resistance Testing
• Material: ABS, Polycarbonate, Electrical Components
• Batteries: 6 x AA
• Display: 4000 Count LCD
• Colour: Orange/Black
• Functions: Insulation Resistance, Voltage AC/DC, Resistance and Continuity
• Voltage: 125V, 250V, 500V and 1000V DC; 1000V AC/DC
• Ohms (Resistance): 4000 MΩ
• Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
• Overall Length: 7.93” (20.2 cm)
• Overall Height: 2.32” (5.9 cm)
• Overall Width: 3.59” (9.1 cm)
• Weight: 1.4 lb (0.6 kg)

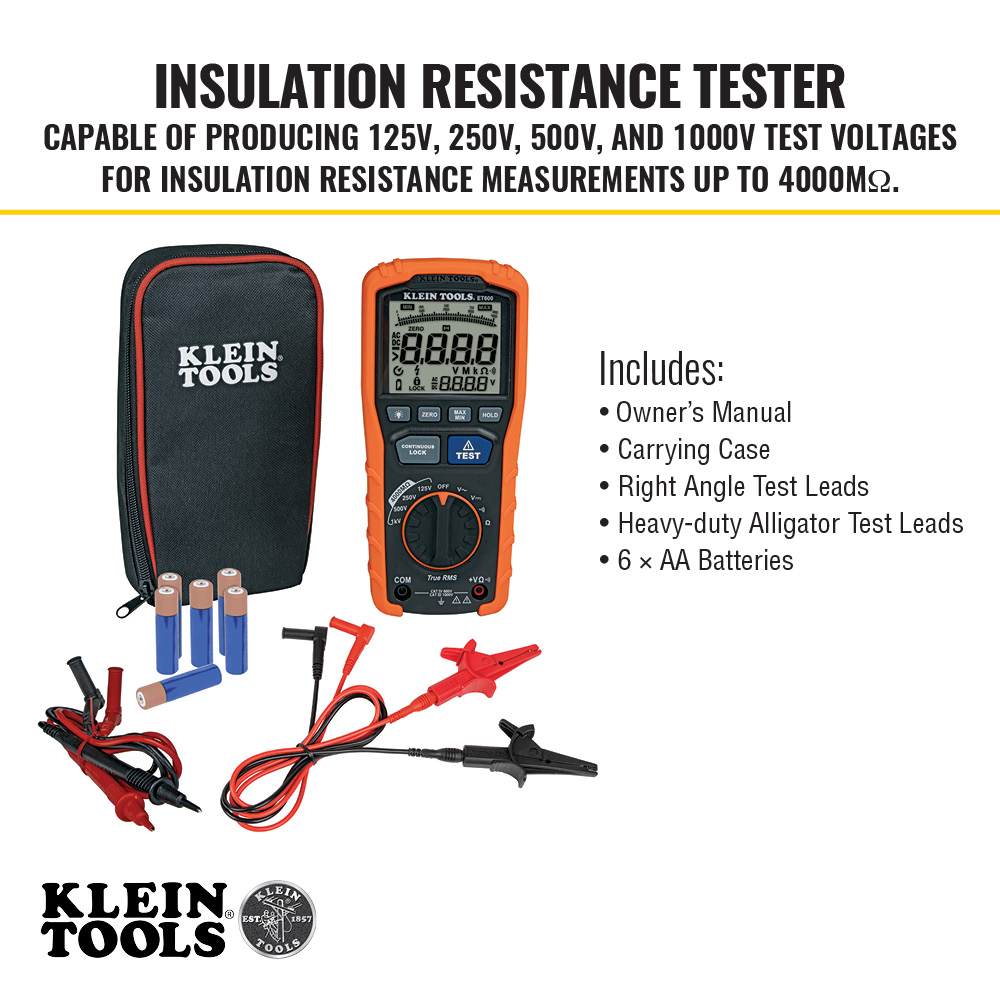

Includes:

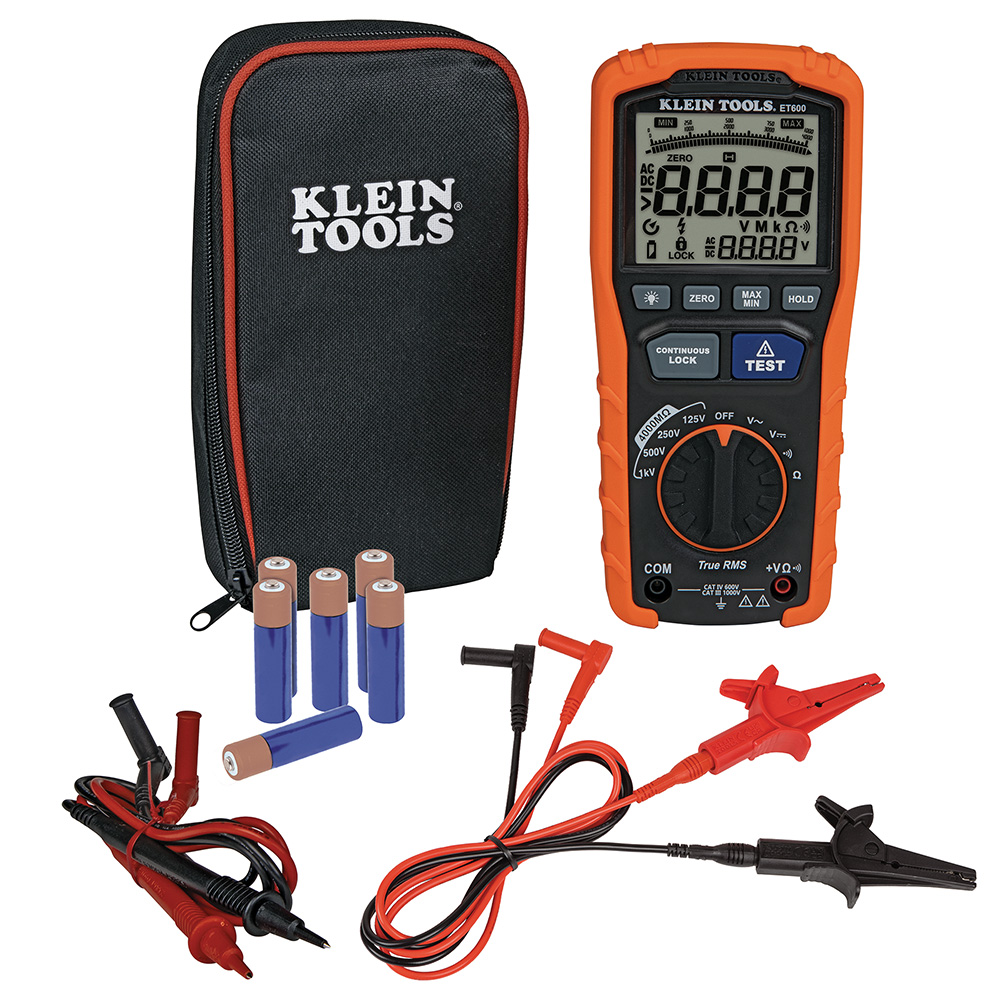

• Included: Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-Duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual

UPC:

• 092644692420
