KLEIN Tools A-CL390 AC/DC Digital Clamp Meter Auto-Ranging 400 Amp

Name: KLEIN Tools A-CL390 AC/DC Digital Clamp Meter Auto-Ranging 400 Amp
Brand: KLEIN Tools
SKU: A-CL390
Price: 145 AUD
Availability: InStock

SKU: A-CL390

In Stock

$214$145You save $69

4 payments of $36.25 with

Free Shipping For Orders Over $199
Free postage is available on all orders over $199 when shipped via Australia Post, excluding power tools, cordless tools, and any individual items that weigh more than 10kg or have a volume equal to or greater than 10 litres.
14 Days Free Returns
- Item must be in new condition and not used.
- Refunds will be processed once your item has arrived.
- Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
Read More
Manufacturer's Warranty
All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.

The safer, easier way to pay

Product Description

Description:

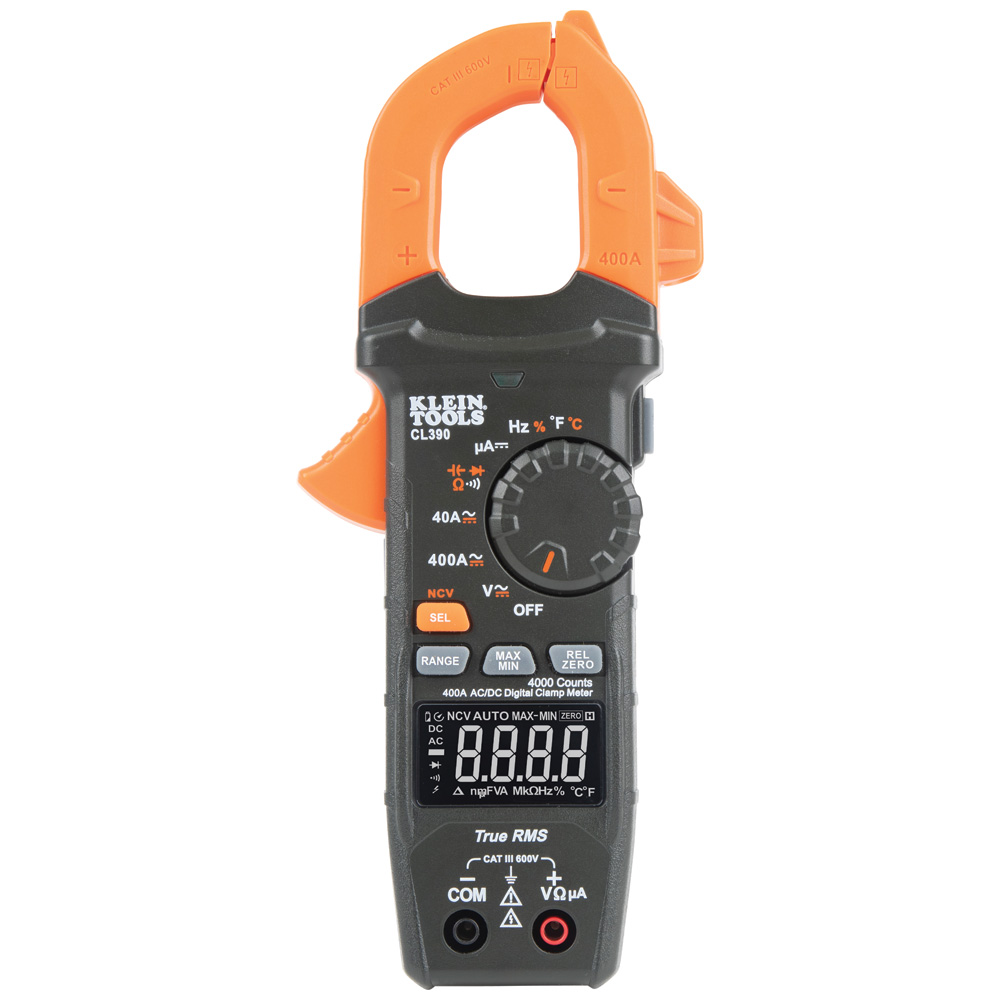

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, as well as AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimises visibility in both dark or bright ambient lighting

Features:

Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Automatically ranging true root mean squared (TRMS) measurement technology for accuracy
Measures AC/DC Current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC micro-amp, capacitance, duty cycle, diode test and continuity via test-leads, and temperature with a thermocouple
Measures temperature with a K-Type thermocouple probe
Max/Min, Rel/Zero and Data Hold capability
Auto Power-Off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions and 3 x AAA batteries
Low-battery indicator and easily accessible battery compartment
Built to withstand a 6.6′ (2 m) drop
CAT III 600 V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations

Specifications:

Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via a clamp, as well as AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty cycle, capacitance and tests diodes via the test leads, and temperature with a thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics
Batteries: 3 x AAA
Auto Shut Off: Yes
Jaw Size: 1.6” (4.1 cm)
Drop Protection: 6.6′ (2 m)
Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test and Temperature
Voltage: 600 V AC/DC
Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current: 400 A AC/DC
Capacitance: 4000 µF
Ohms (Resistance): 40 MΩ
AC Voltage: 600 V
DC Voltage: 600 V
DC Polarity Indicator: Yes
DC Microamp: 200 µA
Temperature Range: -40 °F-1,832 °F (-40 °C-1,000 °C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45” (21.5 cm)
Overall Height: 1.5” (3.8 cm)
Overall Width: 3.5” (8.9 cm)
Weight: 11 oz (314 g)
