Product Description

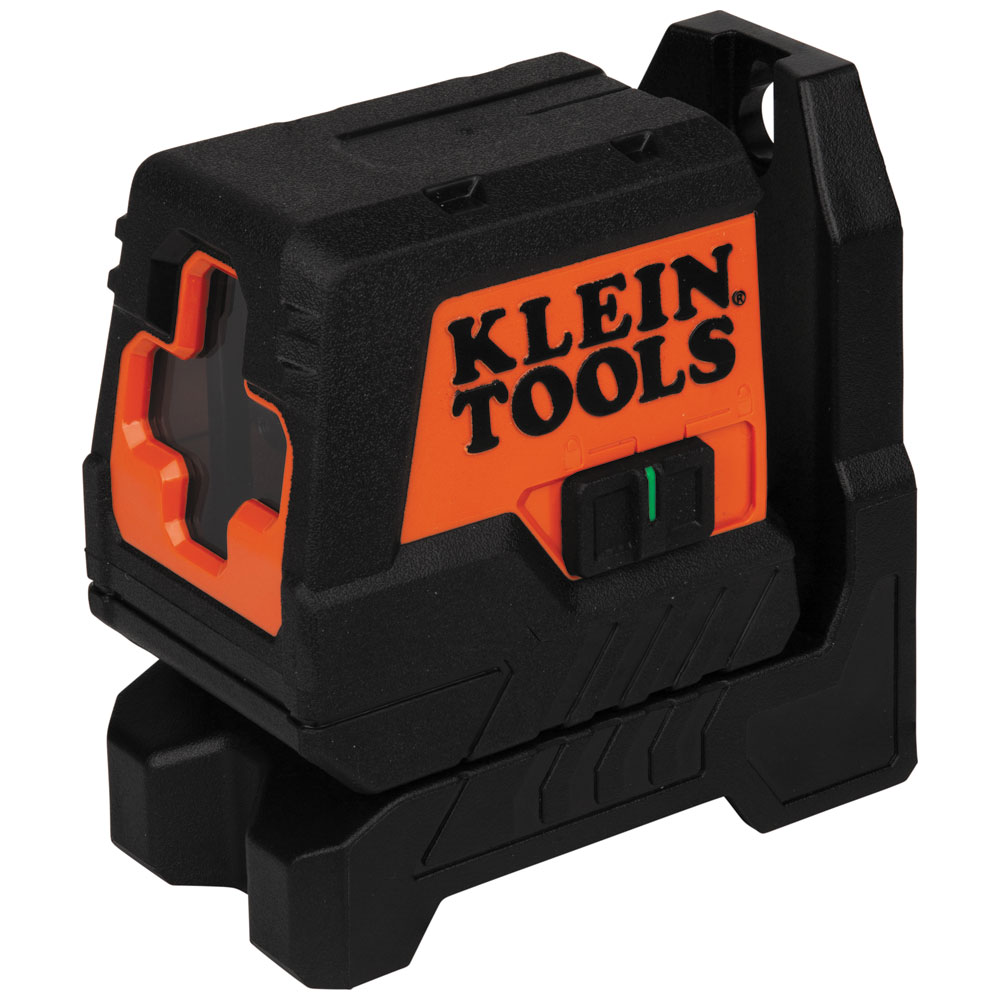

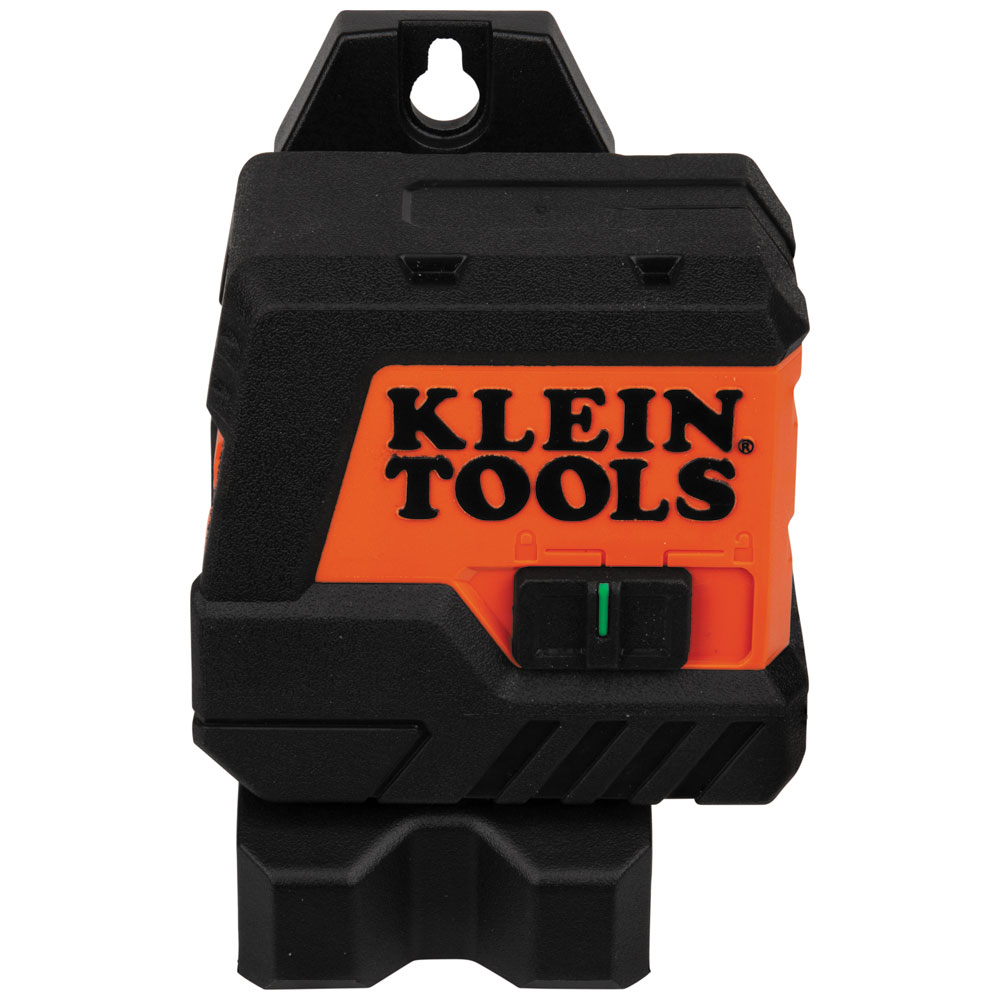

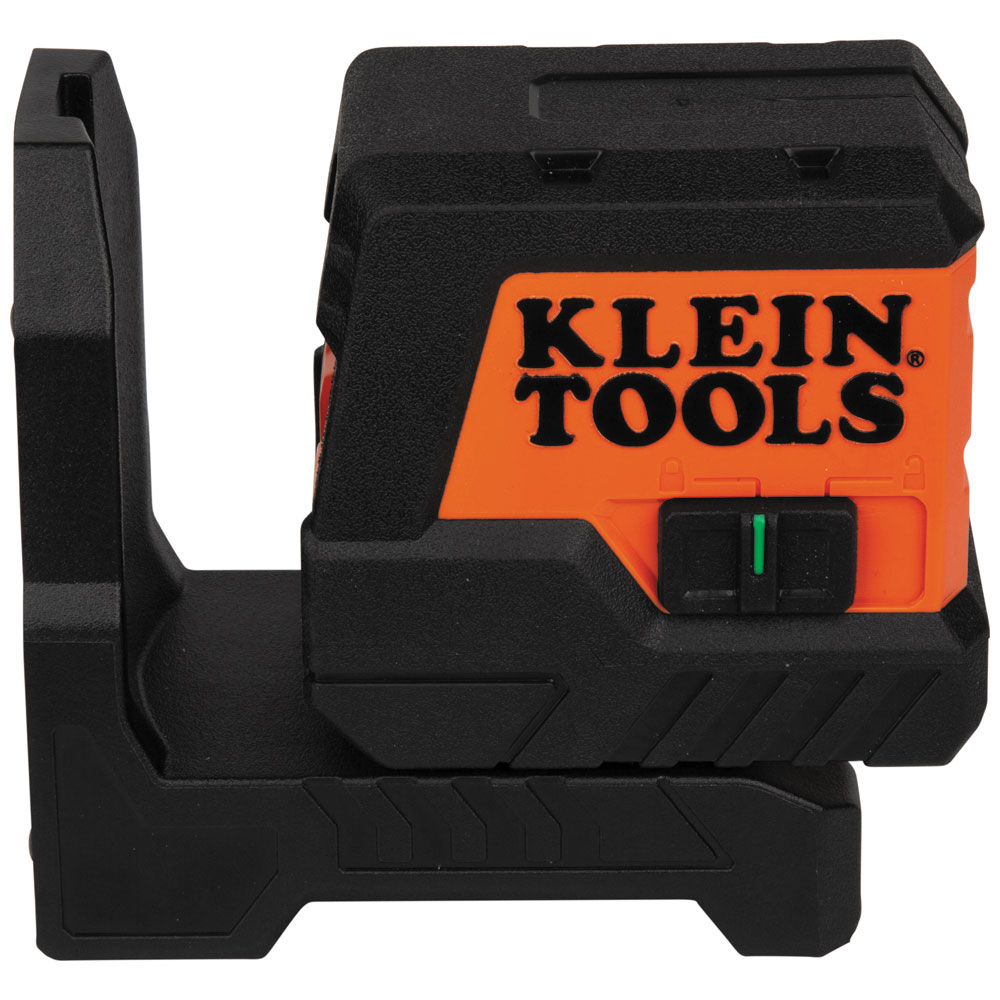

• The Klein Tools Mini Cross Laser Level is a high-performance laser levelling and alignment tool for professionals, with over 8 hours of runtime. This level provides a reliable pendulum self-levelling system with bright green laser level lines. Equipped with a magnetic mounting bracket and an overmould design that protects from water and dust, Klein’s Mini-Line Cross Laser Level enables a multitude of alignment and layout applications

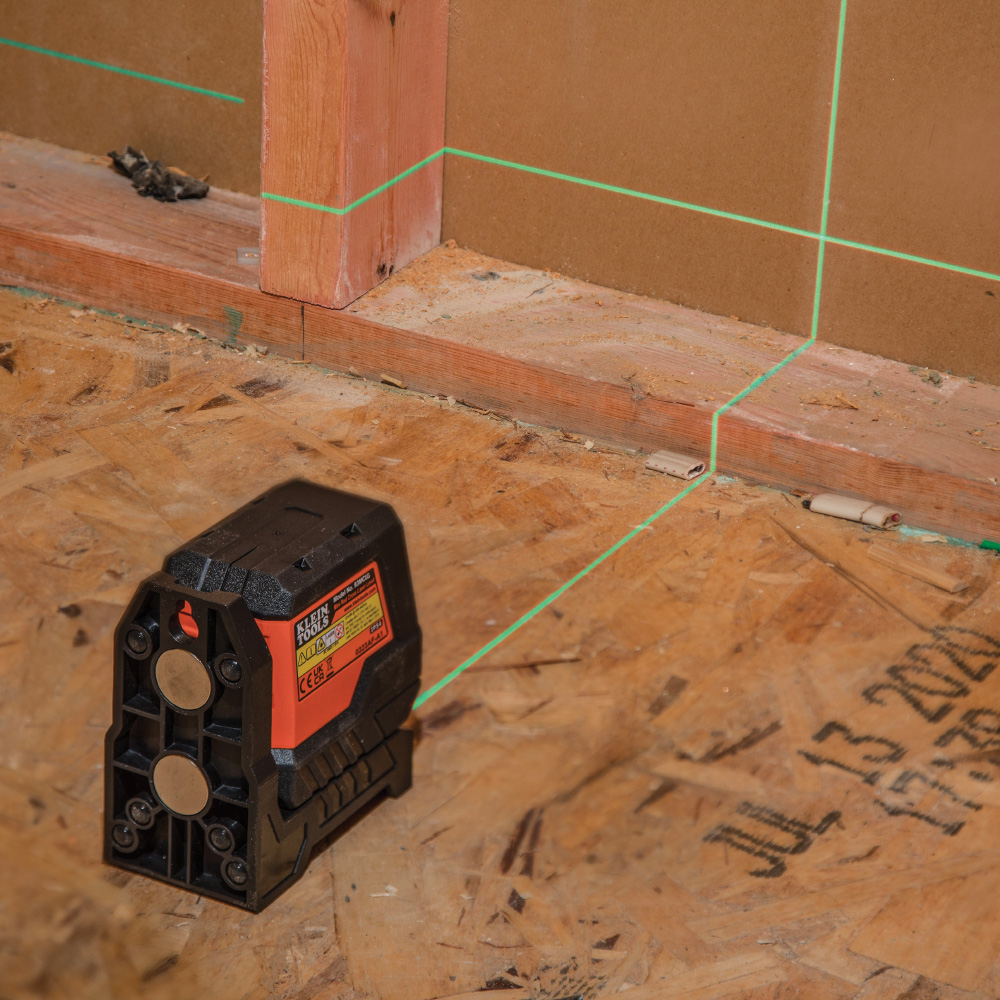

• Self-Levelling Green Laser Level has an easy-to-read bright green horizontal and vertical line with a working range of up to 50 feet (15.2 m)

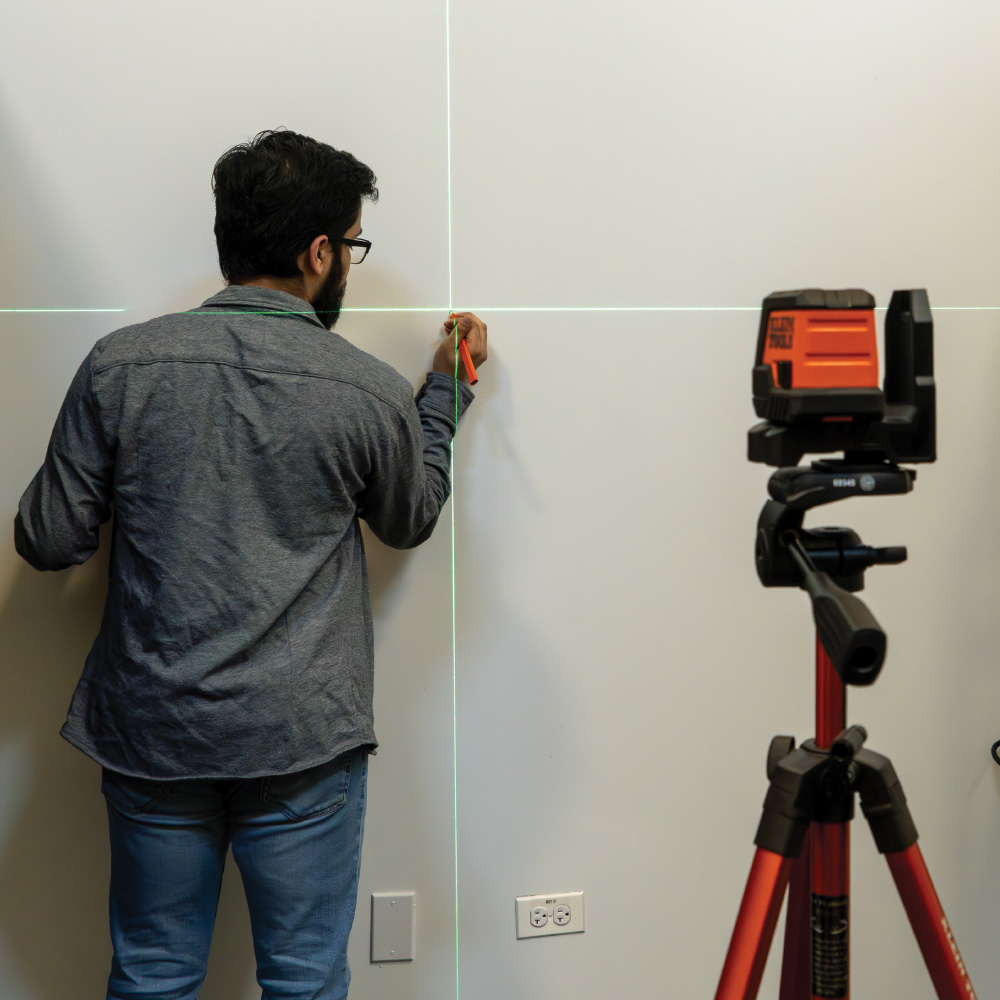

• Projects horizontal and vertical lines to address various alignment tasks
• Compact and lightweight design is easy to use in tight areas and to store when not in use
• High-precision laser project clean lines with accuracy of 3/16-inch at 33 feet (10 m); auto out-of-level detection flashes lasers when no longer level

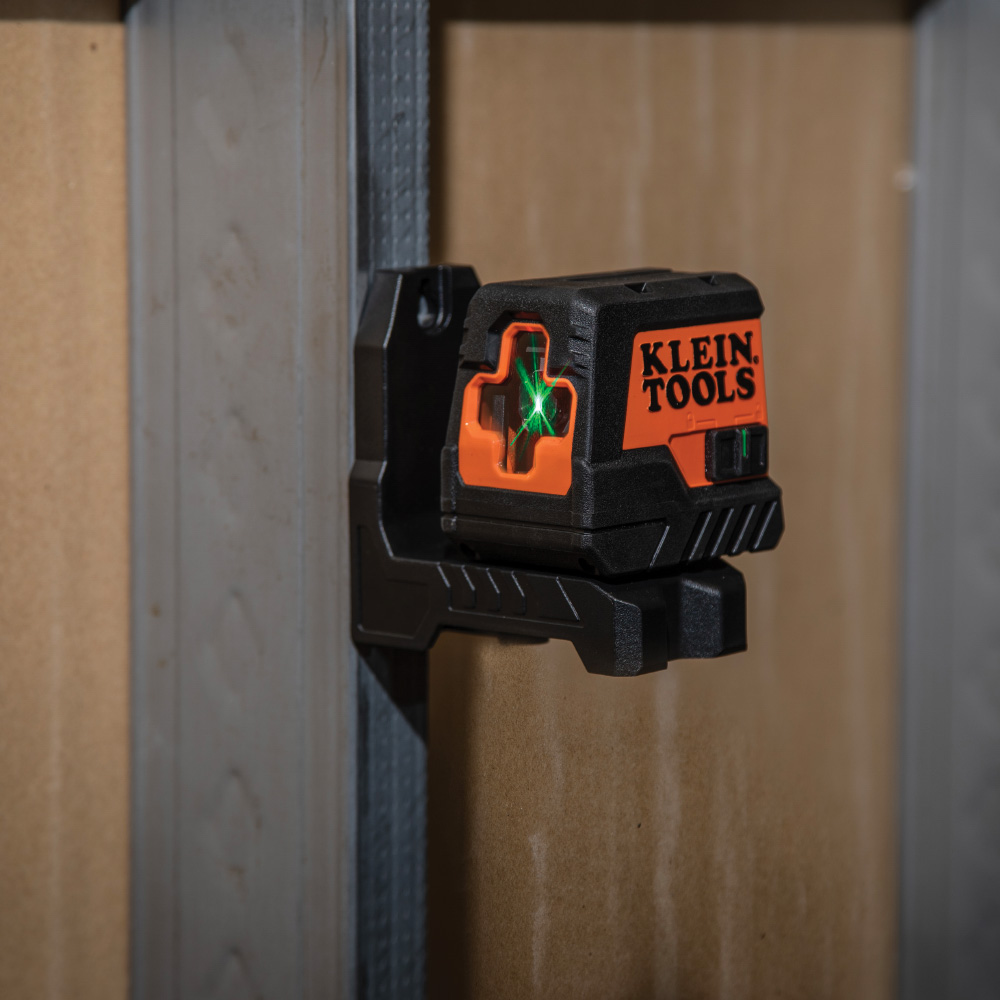

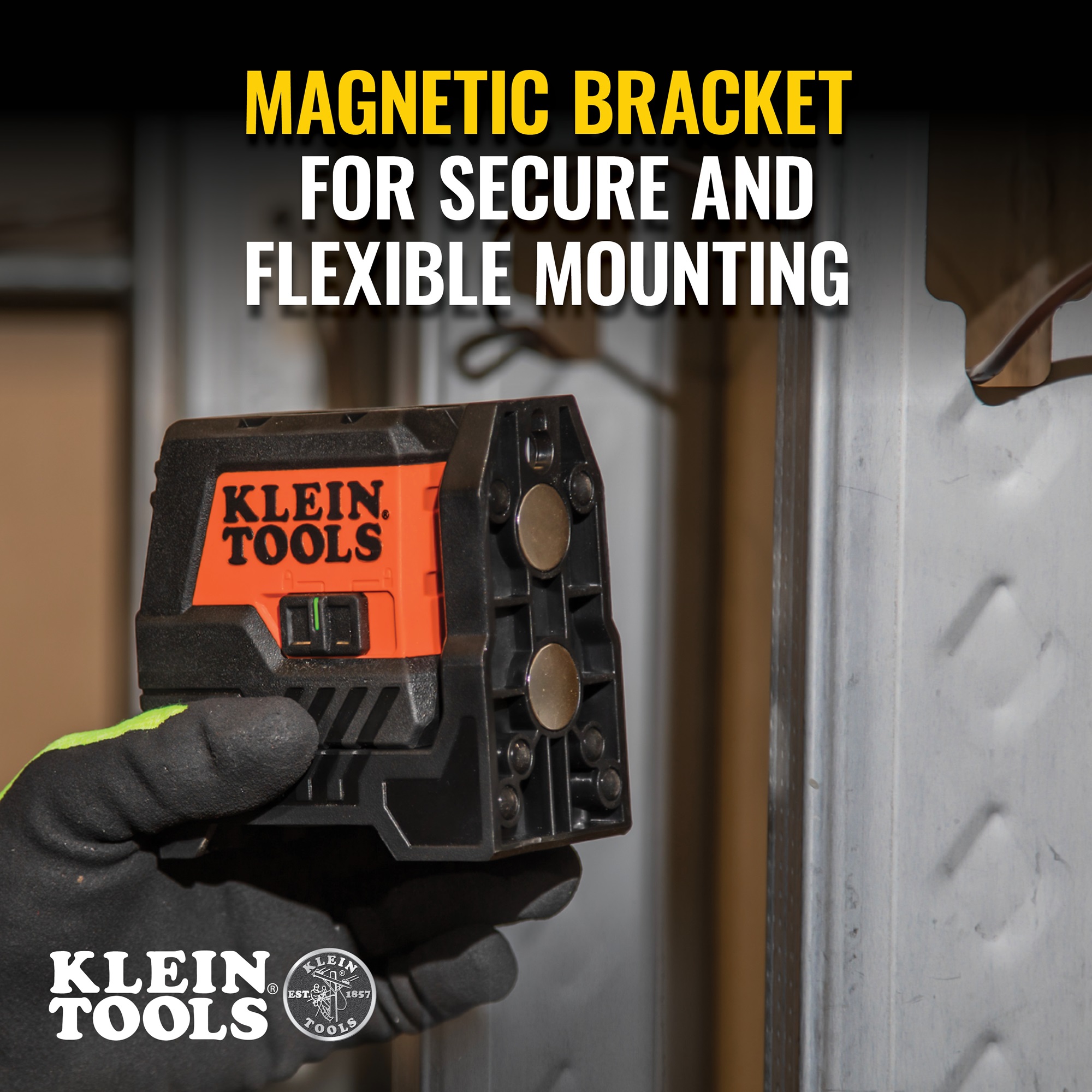

• Magnetic mounting bracket screws into integrated 1/4-inch tripod mount
• Over 8-hour runtime provides lasers with enough power to ensure extended all day use
• Durable overmould design that is IP54-rated protects the laser level from water and dust

• Type: Laser
• Application: Self-Levelling Laser Alignment Tool
• Special Features: Magnetic Mounting Bracket with 1/4” Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator
• Material: PC + ABS + TPE
• Batteries: 2 x AA
• Laser Wavelength: ≤1 mW @ 508-530 nm

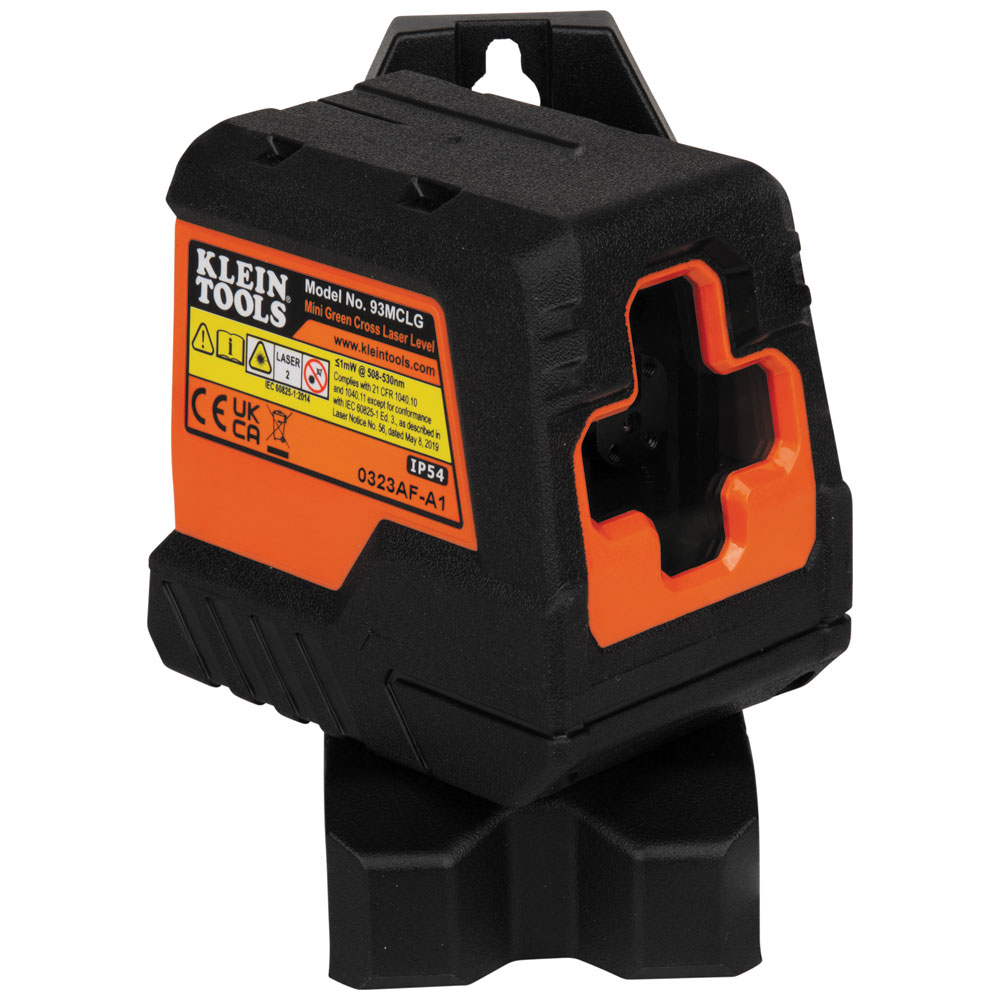

• Laser Safety: Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56 dated 8 May 2019
• Number of Beams: 2
• Laser Colour: Green
• Plumb Laser: No
• Indoor Range: 50′ (15.2 m)
• Outdoor Range: 50′ (15.2 m)
• Maximum Distance: 50′ (15.2 m)
• Display: No
• Accuracy: +/- 3/16” per 33′ (10 m)
• Pulse Mode: No
• Receiver: No
• Magnet Type: Rare Earth – Neodymium
• Drop Protection: 3.3′ (1 m)
• Ingress Protection: IP54: Water and Dust Resistant
• Transit Locking Mechanism: Yes
• Low Battery Alarm: Yes
• Low Battery Indicator: Yes
• Out-of-Level Indicator: Yes
• Standard: Conforms to EN61326-1:2013, EN60825-1:2014
• Mounting Type: Magnetic Bracket, Tripod Mount
• Bag or case: Soft Case
• Included: Laser Level; Soft Carrying Case; Instruction Manual; Mounting Clamp; 2 x AA 1.5V Alkaline Batteries
• Overall Length: 4.2” (10.7 cm)
• Overall Height: 4” (10.2 cm)
• Overall Width: 3.2” (8.1 cm)
• Weight: 14 oz (397 g)
• Battery Life: 8 hrs

• 092644930119
