Product Description

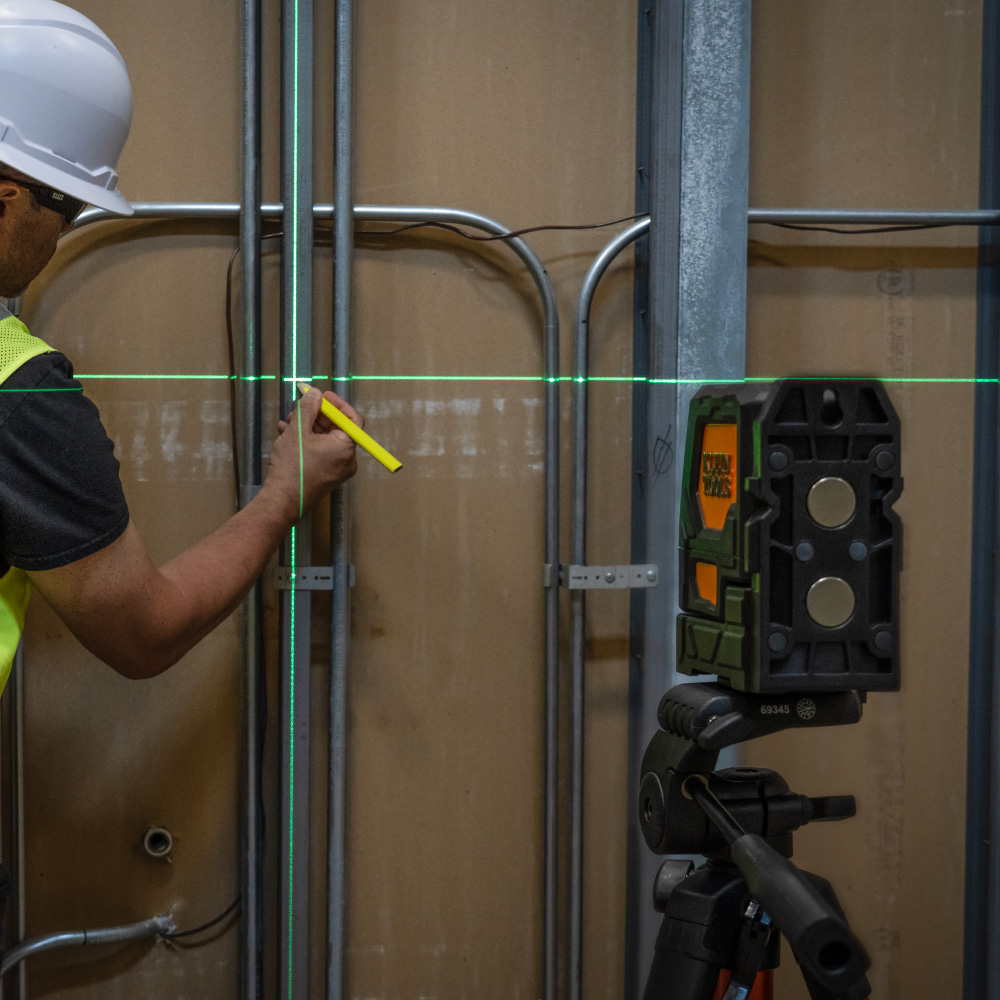

• The Klein Tools Self-Levelling Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals. This level provides a reliable, pendulum self-leveling system to allow you to measure with confidence. Clear, powerful laser level lines can be projected independently to aid anything from hanging a picture to aligning concrete. Up and down plumb bobs are much more precise than a traditional string bob. Equipped with an integrated magnetic mount and an additional ceiling clip mount, Klein’s cross-line level enables a multitude of alignment and layout applications such as running conduit and installing electrical panels

• Self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers
• Projects horizontal and vertical lines independently or together to address various alignment tasks

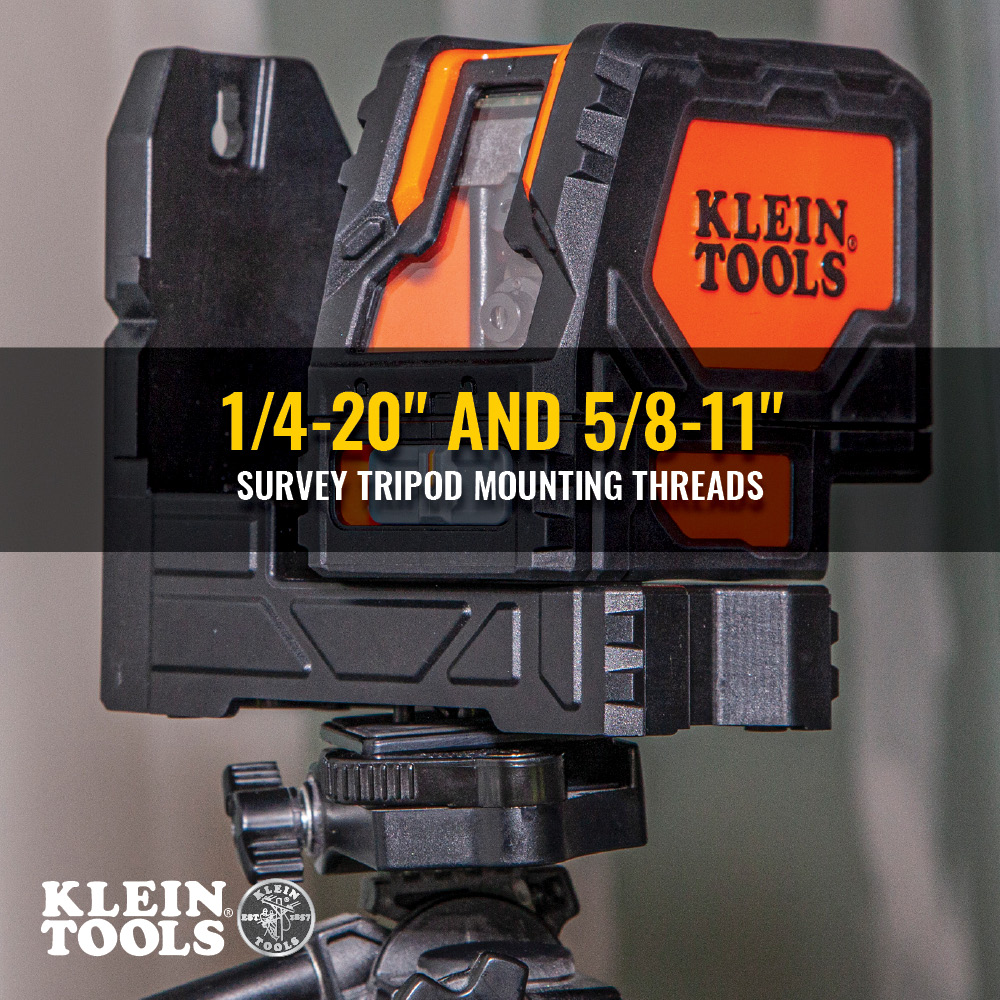

• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads

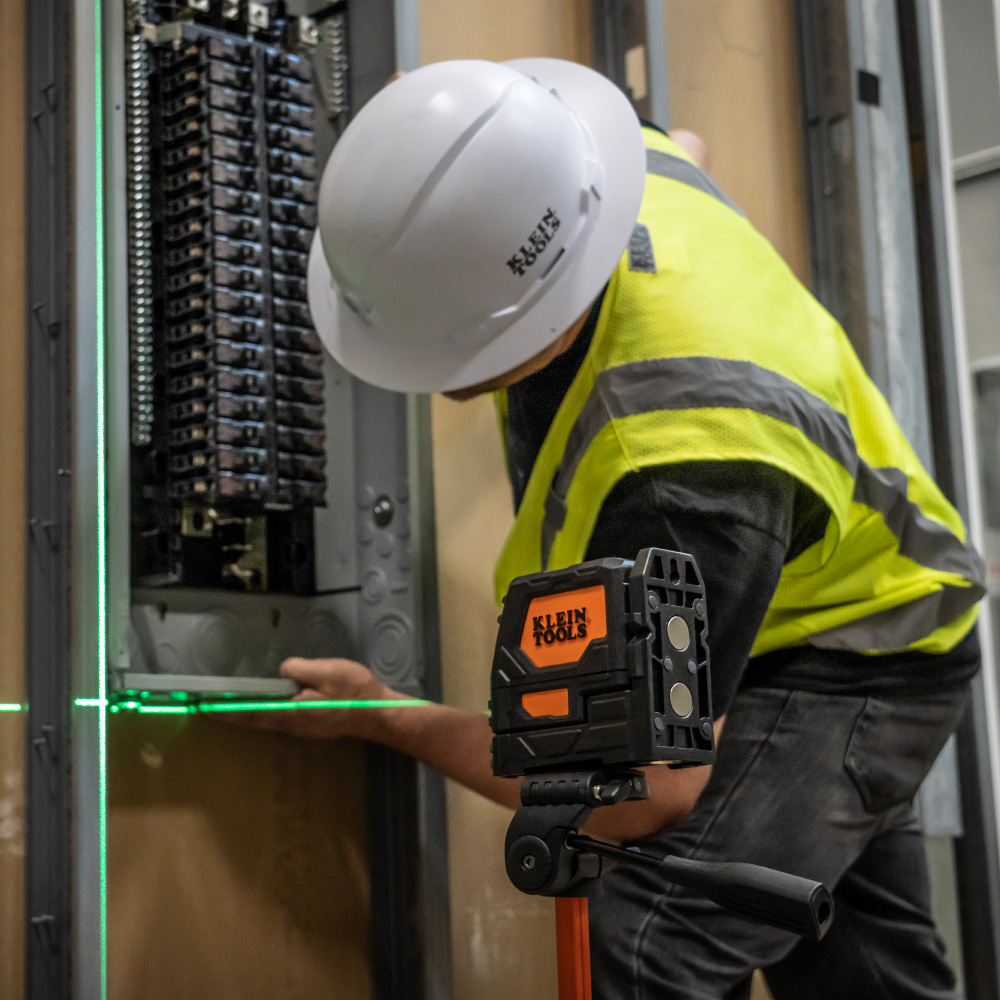

• Magnetic bracket facilitates attachment to ferromagnetic objects such as steel studs, doors, beams or electrical panels
• Additional mounting clamp attachment for use on ceiling grid applications

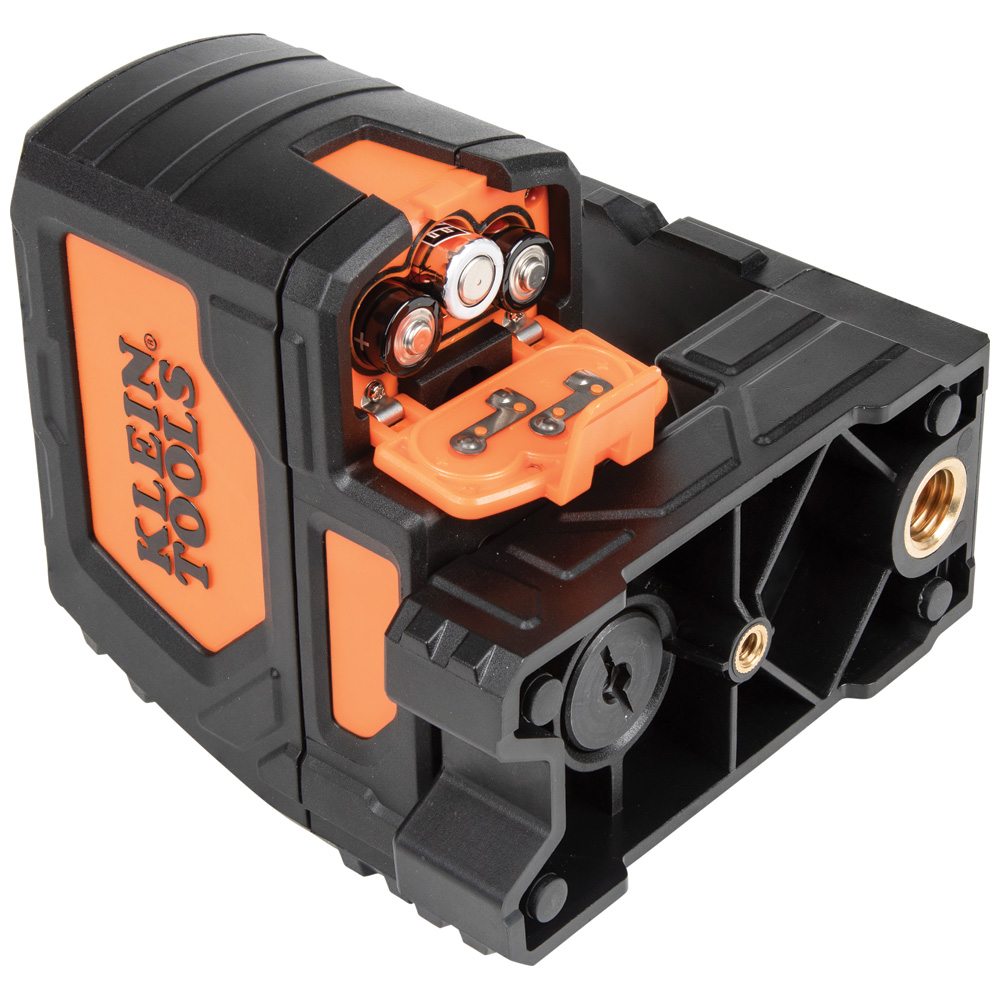

• Low battery indicator and easily accessible battery compartment
• Rugged body provides IP54 water and dust resistance, hard plastic carrying case included

• Type: Self-Leveling Laser Level
• Application: Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
• Special Features: Integrated Magnetic 360° Mounting Bracket with 1/4” and 5/8” Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator
• Material: ABS Housing and Electronic Components
• Batteries: 3 x AA
• Laser Wavelength: 515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
• Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
• Number of Beams: Four Horizontal, Vertical, Plumb Up, Plumb Down
• Laser Color: Cross Line: Green; Plumb: Red
• Plumb Laser: Yes
• Outdoor Range: 65′ (20 m)
• Maximum Distance: 70′ (21 m)
• Accuracy: ±3/32” per 33′ (±2 mm per 10 m) Vertical & Horizontal Beams, ±1/8” per 33′ (±3 mm per 10 m) Plumb Up Spot, ±5/32” per 33′ (±4 mm per 10 m) Plumb Down Spot
• Magnet Type: Permanent Rare Earth
• Ingress Protection: IP54: Water and Dust Resistant
• Transit Locking Mechanism: Yes
• Low Battery Indicator: Yes
• Standard: EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
• Bag or Case: Hard Carrying Case

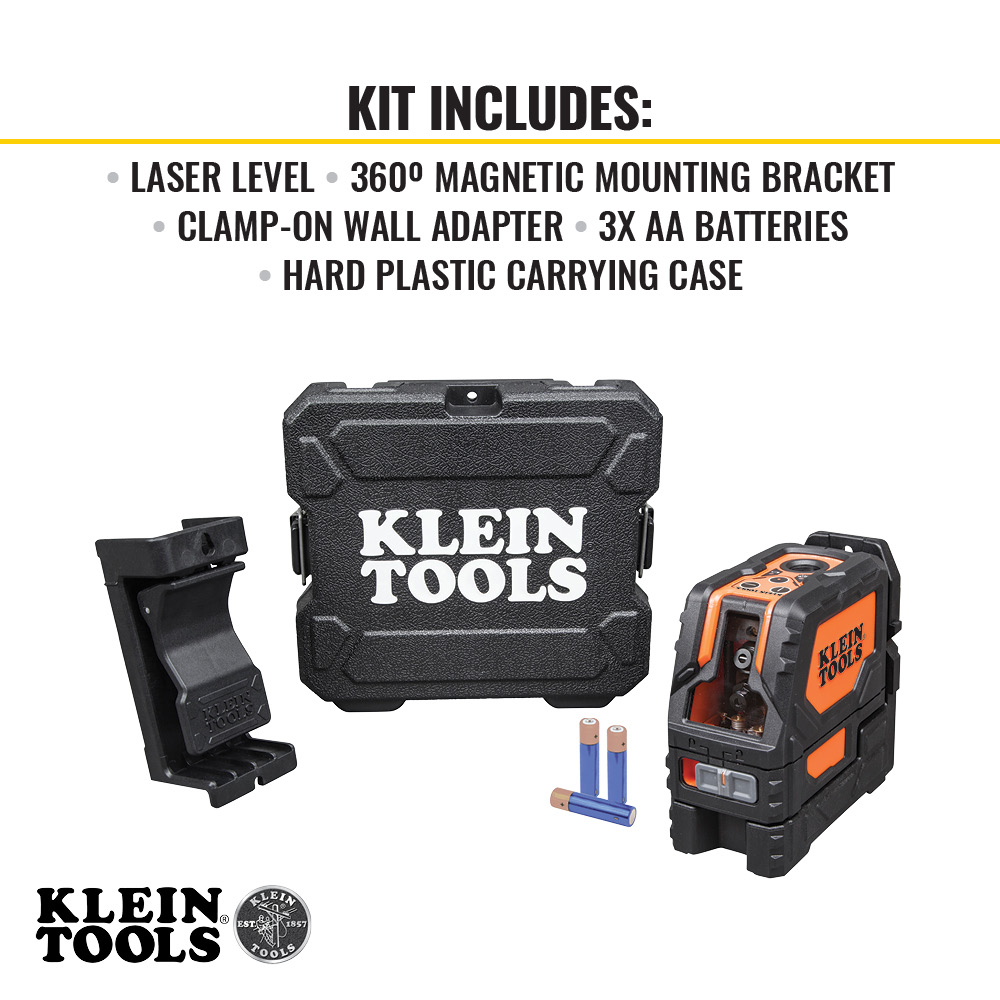

• Included: Laser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; 3 x AA 1.5V Alkaline Batteries
• Overall Length: 5.3” (13.5 cm)
• Overall Height: 5” (12.7 cm)
• Overall Width: 2.6” (6.6 cm)
• Weight: 1.5 lb (0.7 kg)

• 092644930041
