Product Description

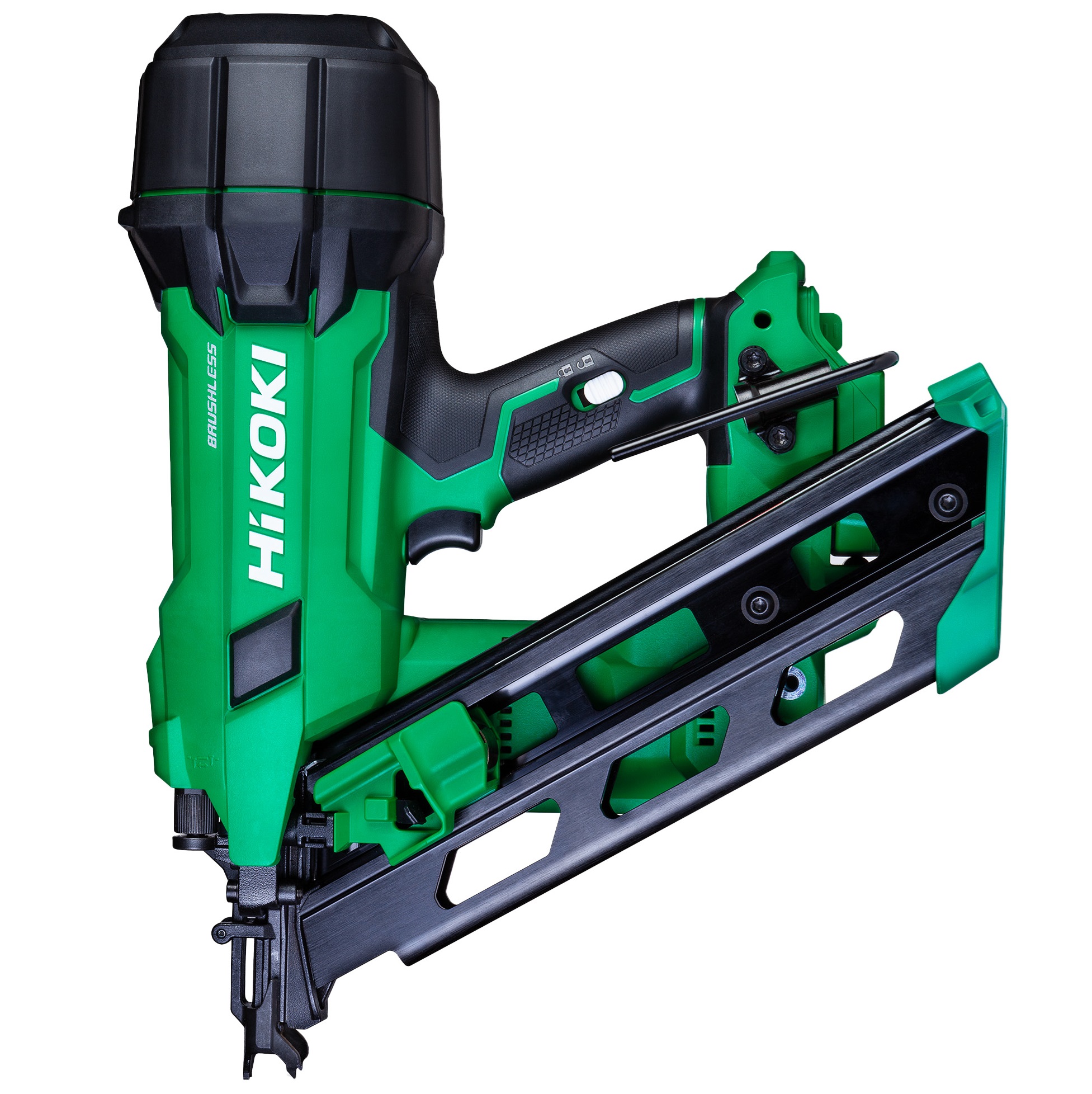

• The HiKOKI 2nd Generation 18V Gasless 90mm Framing Nailer (NR1890DCA) is a lightweight, compact tool built for power and precision.
• It features an aggressive new nose for effortless skew nailing and sinks 90mm nails with ease. The Gasless technology eliminates gas cartridges and fumes, while the fast nailing speed (1.8–2.7 nails/second) ensures efficiency. With a 30–34° nail angle, tool-less depth adjustment, and powerful LED light, it’s designed for versatility and visibility. Perfect for professionals seeking a reliable, gasless framing nailer

• Slimmer, lighter, and improved design
• Aggressive new nose for effortless skew nailing
• More power – sinks 90mm nails with ease
• HiKOKI Air Spring Drive System – no gas cartridges or harmful fumes
• Fast nailing speed (1.8 to 2.7 nails/sec) for increased productivityDurable alloy magazine for quick loading and easy cleaning
• Dry-fire lockout system prevents operation without fasteners
• Configurable belt/rafter hook – switches easily from left to right
• Powerful LED light for excellent visibility in low-light conditions
• Tool-less depth adjustment for precise, consistent results
• Advanced control panel with built-in nail counter and software

• Includes 3 Years Standard Warranty with an additional 3 Years when registered online

• Voltage 18V
• Driving system Air Spring Drive
• Nail type Clipped Head
• Nail length (mm) 50 to 90mm
• Nail angle 30 to 34°
• Cycle rate 1.8 to 2.7 nails/ second (intermittent)
• Firing mode Full sequential/ Contact (bump fire)
• Depth adjustment Tool-less
• Dry-fire lockout mechanismBattery level indicator On the battery
• LED light
• Hook
• Belt/Rafter
• Magazine capacity 50 nails
• Motor type DC Brushless
• Dimensions (H x D x L) 359 × 133 × 317mm
• Weight (kg) 3.78kg (Skin Only)
• Extended magazine #382417 (Optional)
• No mar tip Optional #382493 (Optional)

• Skin, Belt Hook, Torx Key, Standard, Magazine, Safety Glasses

• HiKOKI NR1890DCA(H4Z) 18V Lithium-Ion Brushless 2nd Generation Framer – Framing Nailer
• 2 x BSL36A18X  – 18V/36V MultiVolt  Li-ion batteries
• UC18YSL3 – Rapid charger with cooling system & USB port
• 1x Stackable case IV

• 4966376415939
