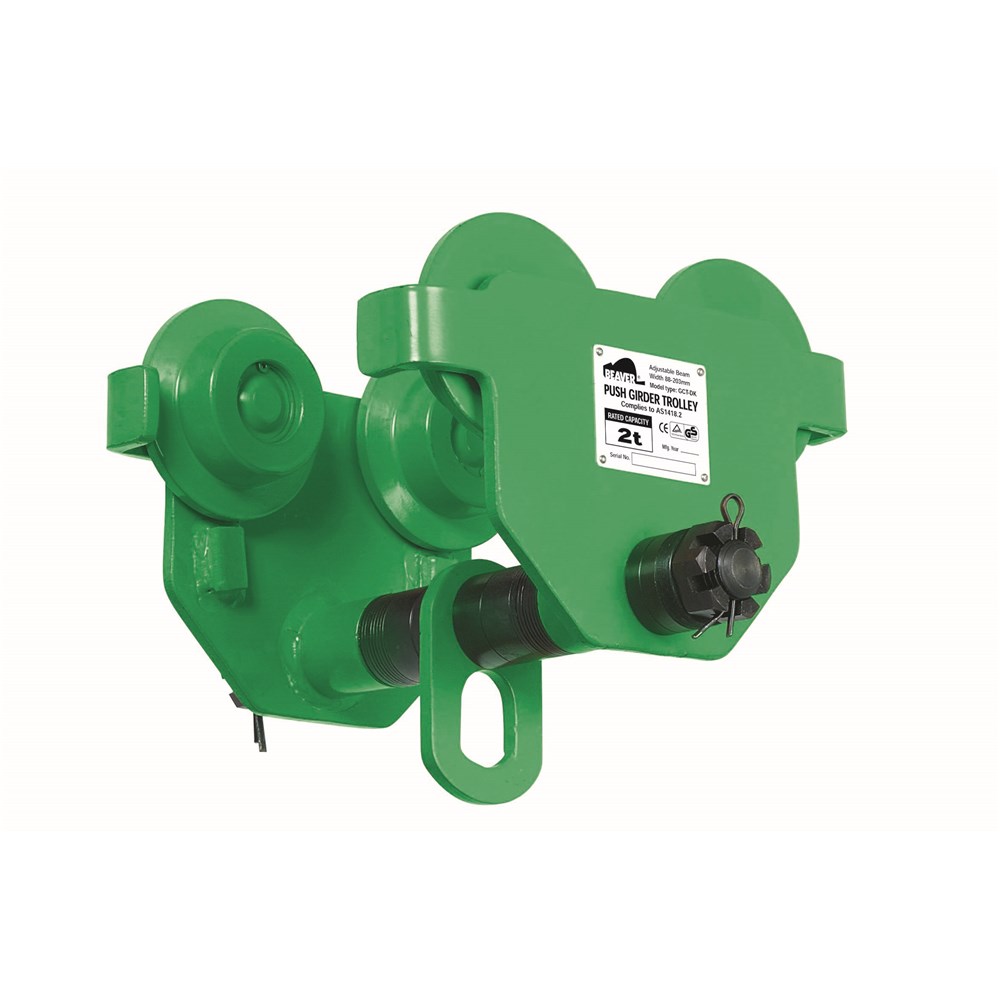

Beaver 522020S Push Girder Trolley Green 2000kg

SKU: 522020S
In Stock
$229
Or
4 payments of $57.25 with
Estimated delivery by 28th January to 2nd February
  • Ships free Australia Wide
    Free postage is available on all orders over $199 when shipped via Australia Post, excluding power tools, cordless tools, and any individual items that weigh more than 10kg or have a volume equal to or greater than 10 litres.
  • 14 Days Free Returns
    • Item must be in new condition and not used.
    • Refunds will be processed once your item has arrived.
    • Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
    Read More
  • Manufacturer's Warranty
    All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.
The safer, easier way to pay

Product Description

Description:
  • Beaver Close Headroom Geared Girder Trolleys are used for applications where reduced headroom is required and are suited for heavier loads, higher suspension levels, or high use applications
  • The units suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin
  • These girder trolleys are lightweight, despite their robust all-steel construction and have been operationally tested to 150% of their rated capacity
  • Note:-Beaver Close Headroom Geared Trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction is the responsibility of the user
Features:
  • Fully adjustable
  • Hand chain features a special corrosion resistance zinc dichromate (gold) finish
  • Anti-tilt blocks fitted as standard for additional safety
  • Colour coded to match international WLL lifting standards
  • Stainless steel ID plate for traceability
Approved Standards:
  • Complies to AS 1418.2
Specifications:
  • Product Code 522020S
  • Rated Capacity 2t
  • Colour Code Green
  • Proof Load 29.42kN
  • Minimum Radius Curve 1.1m
  • Net Weight 17.5kg
  • Q (mm) 48

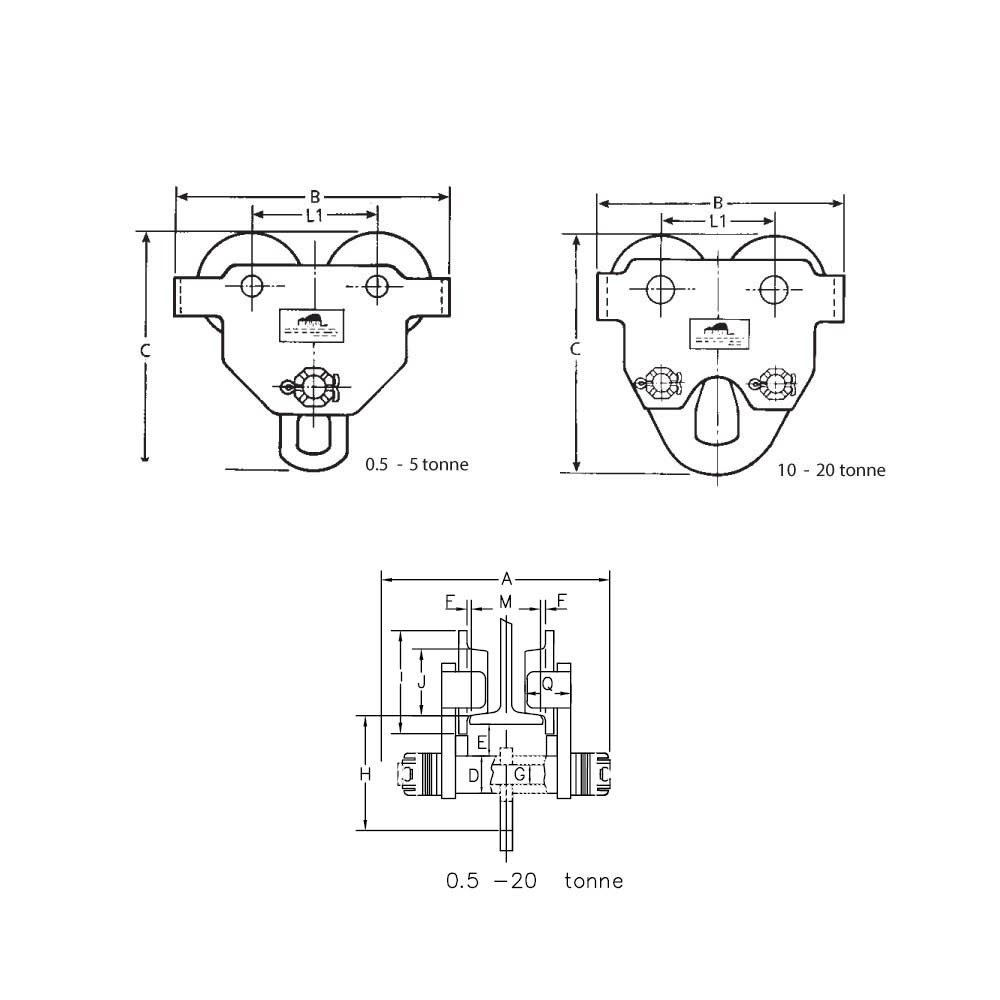

Dimensions:
  • Product Code 522020S
  • Rated Capacity 2t
  • A 327mm
  • B 276mm
  • C 263mm
  • D 52mm
  • E 38mm
  • F 1.5-3mm
  • G 36mm
  • H 150mm
  • I 108mm
  • J 80mm
  • L1 132mm
  • M 88-203mm
UPC:
  • 9322297012032

Additional information

Weight 6.5 kg
Dimensions 20 × 30 × 20 cm
