Product Description

Description:

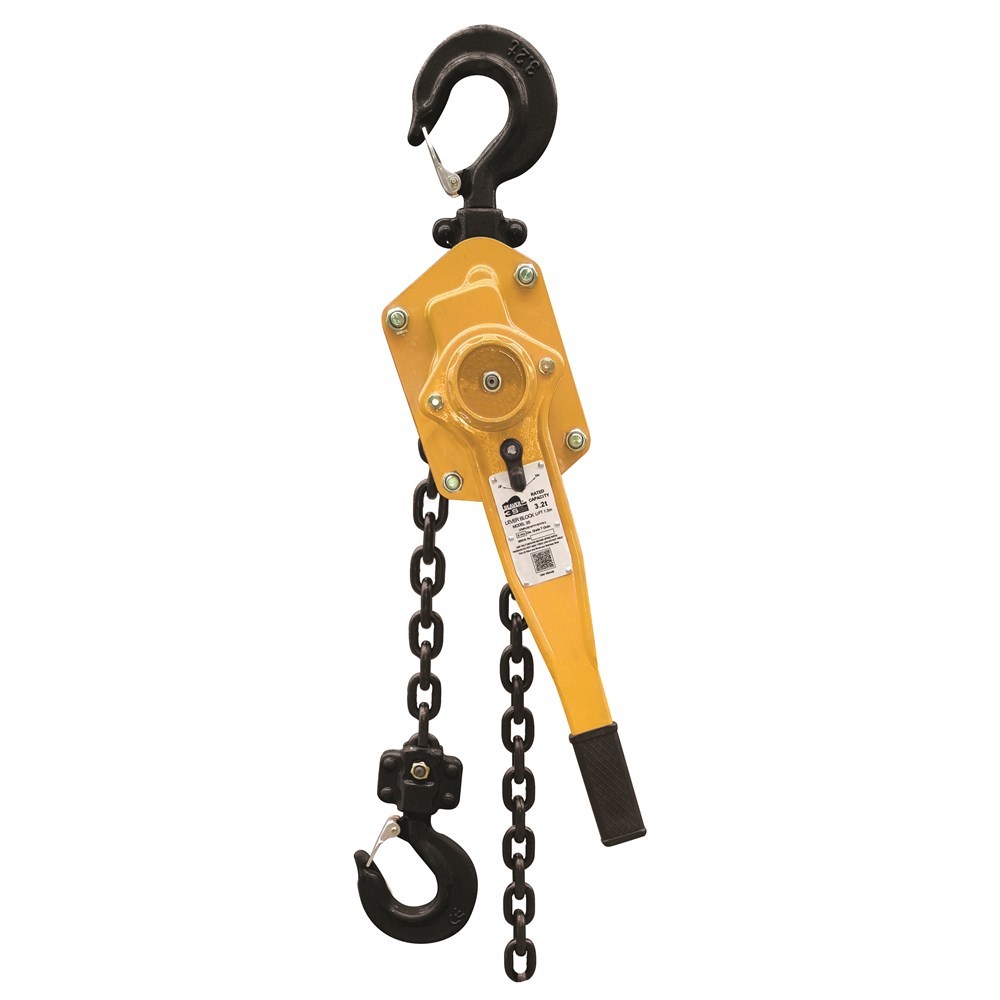

• The heavy duty Beaver lever blocks are a versatile lifting and tensioning device with some models being widely used in rigging, construction, and mining, applicable models are marked with an asterisks below. Please note: not all models are suitable for all applications. The Beaver 3S industrial chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver ‘ID’ plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining
• Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard

Features:

• Each 3S Lever block is operationally tested to its rated capacity and is supplied with a beaver test certifi cate, relating to its stamped identifi cation side plate Load chain is made of high resistance grade 80 alloy steel, black fi nish, calibrated and marked according to international standards ISO 3077 and ISO 1834 Precision engineered top and bottom hooks with ball bearing Machined and heat treated gears, offering better durability and longer life cycle
• Colour Coded to match International Lifting Standards
• QR Code on ID Tag

Applications:

• Lifting
• Lowering
• Fastening
• Pulling

Approved Standards:

• Complies to AS/NZS 1418.2

Specifications:

• Product Code 506320
• Rated Capacity 3.2t
• Colour Code Yellow
• Standard Lift 1.5m
• Testing Load 45kN
• Effort on Lever to Lift Full Load 320N
• No. Load Chain Fails 1
• Load Chain Diameter 10mm x 30mm

Dimensions:

• A 200mm
• B 115mm
• C 180mm
• D 410mm
• E 40mm
• H 480mm
• Net Weight 21kg

UPC:

• 9322297079240
