Tormek BGM-100 Bench Grinding Mounting Set

SKU: BGM-100 Categories: ,


Or4 payments of $43.75 with

Enquire now
Ships free Australia Wide
Free Postage for orders over $100 applies to all orders that are sent via Australia post and does not weigh more than 25kg per item.
14 Days Free Returns
  • Item must be in new condition and not used.
  • Refunds will be processed once your item has arrived.
  • Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
Read More
Manufacturer's Warranty
All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.

Product Description


  • If you need to remove a lot of steel to create a desired shape on a new tool, this Bench Grinder Mounting Set BGM-100 enables you to use the Tormek woodturning jigs also on your bench grinder


  • Take control of your profiles
  • No matter which grinding machine you use, the most difficult part in sharpening woodturning tools is to exactly replicate the shape and the edge angle

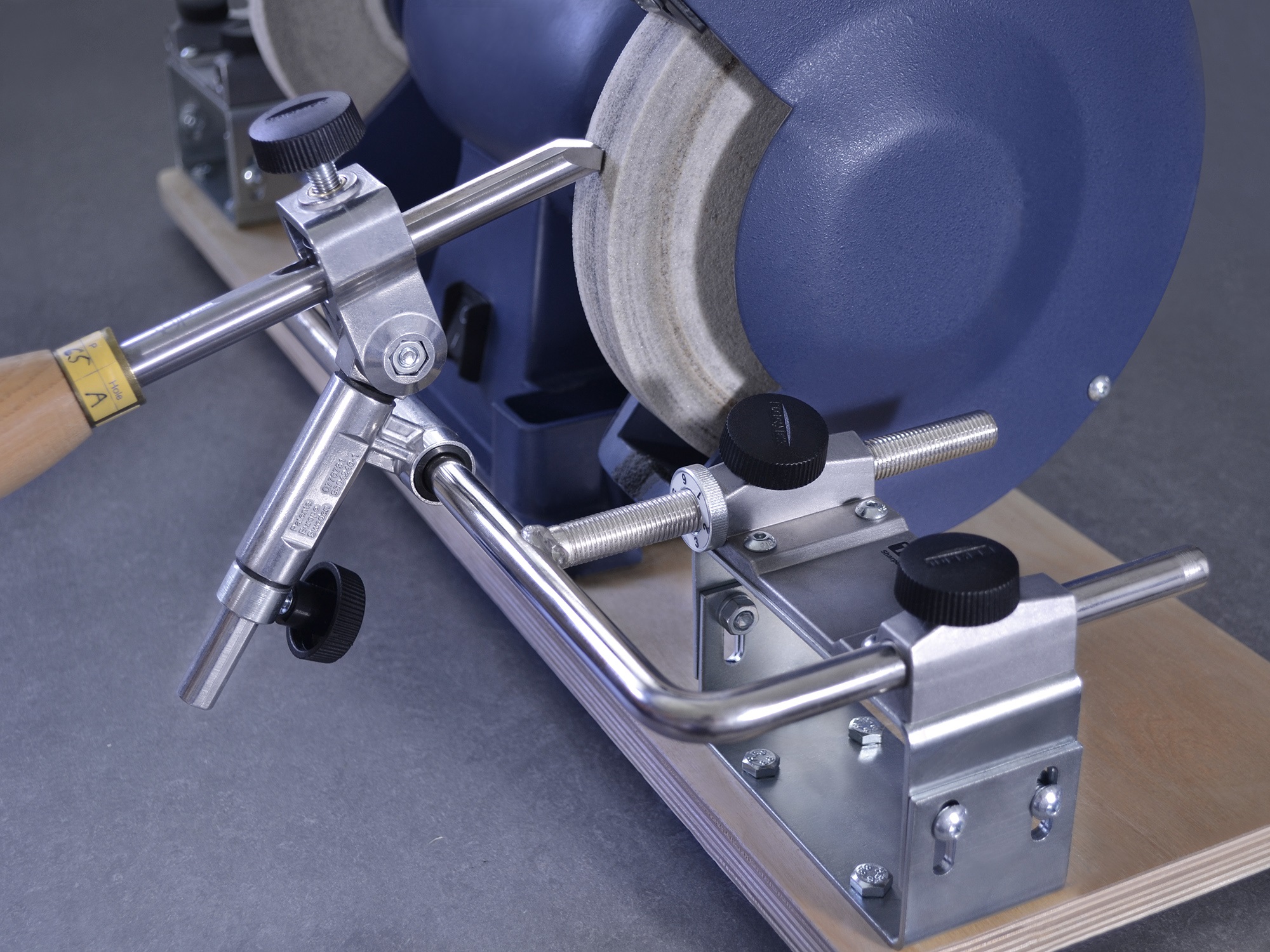

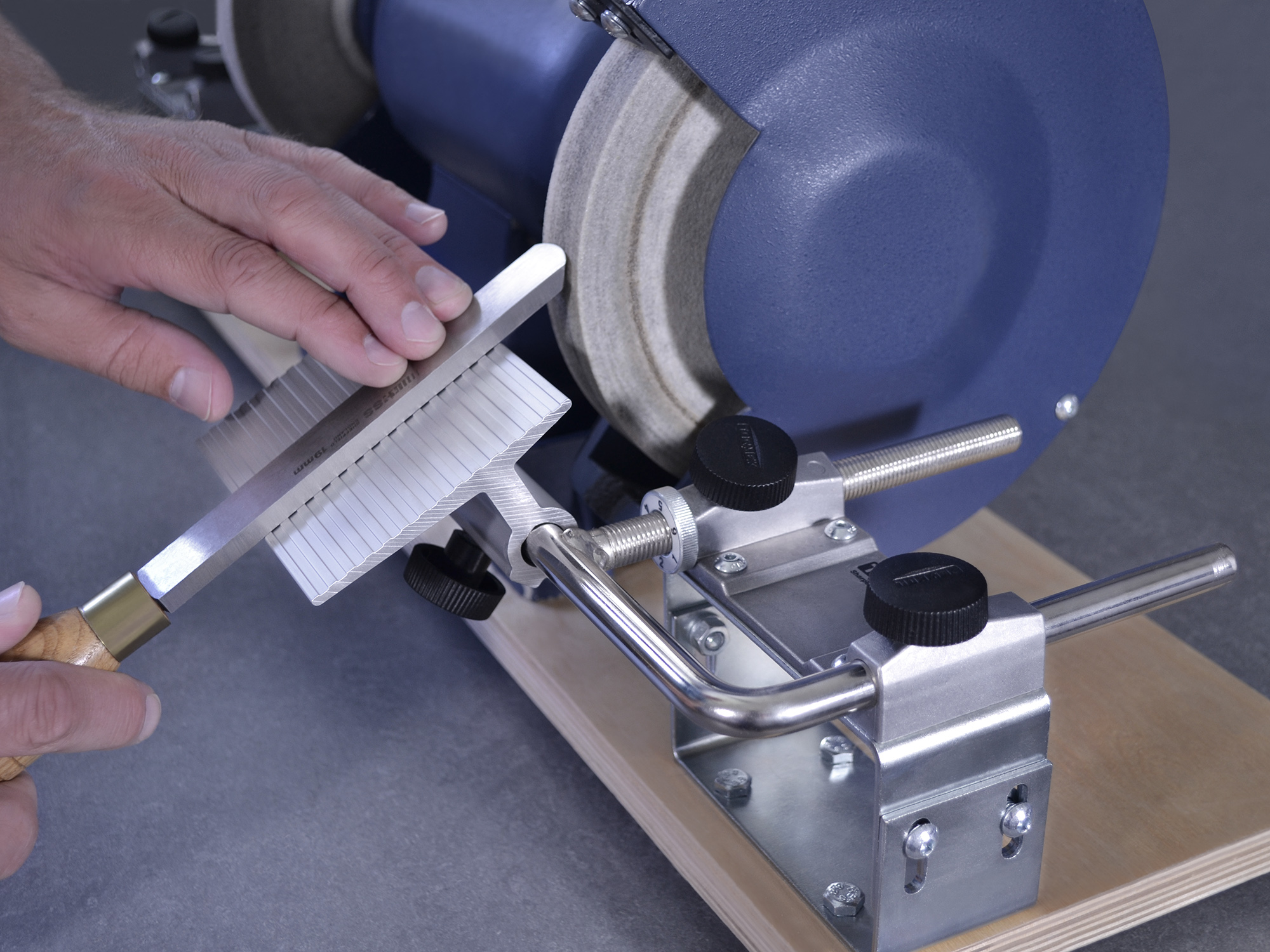

  • With the BGM-100 you can now use the following Tormek jigs on your bench grinder: the Gouge Jig SVD-186, the Multi Jig SVS-50, the Tool Rest SVD-110 and last but not least the Turning Tool Setter TTS-100
  • What does the BGM-100 package include?

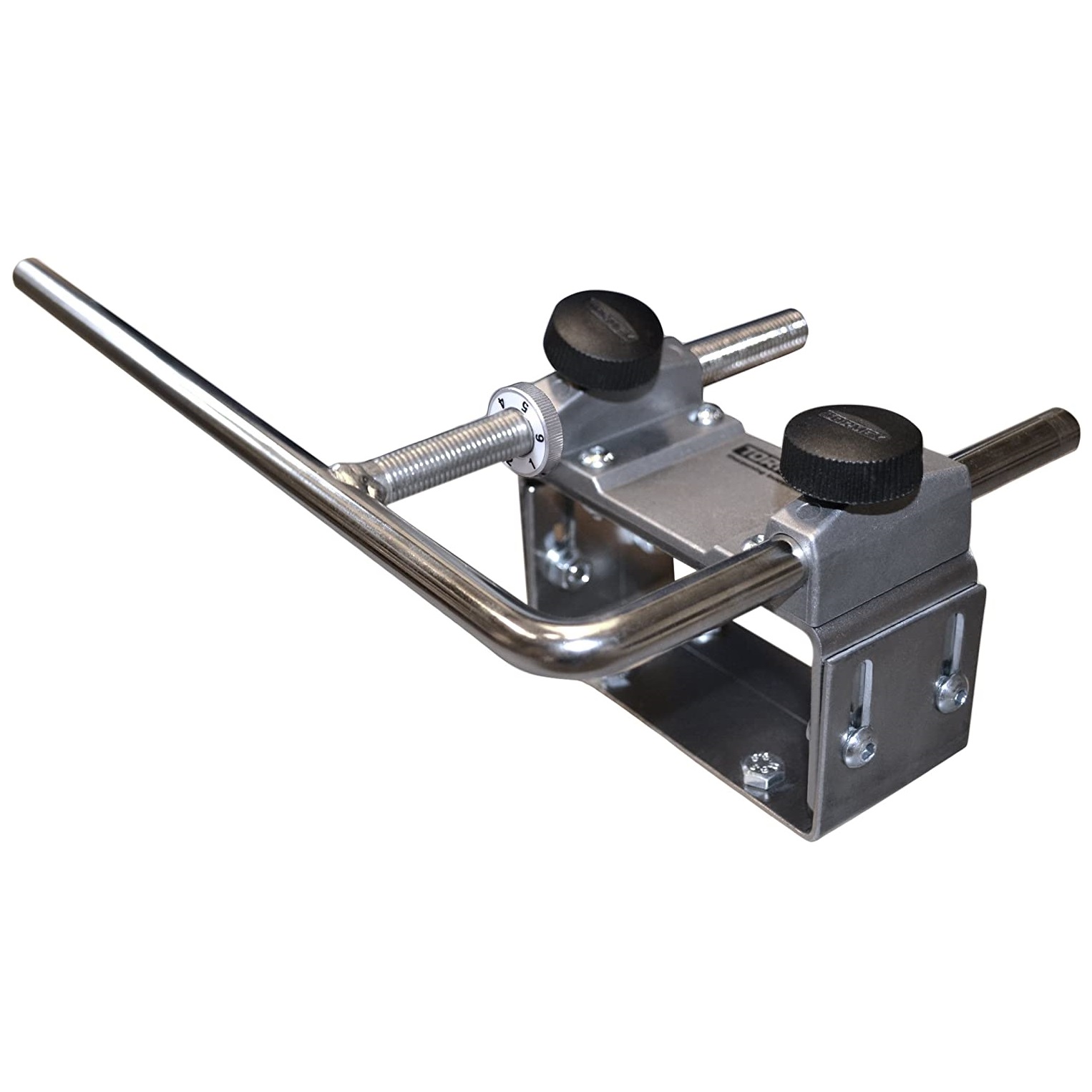

  • The package includes a height adjustable block, hardware, a Universal Support, a Horizontal Base, feet for the base you will build and comprehensive instructions. Mount the set on either side of the grinder
  • Why introduce Tormek jigs also for bench grinders?
  • We believe that the water cooled Tormek system is superior in sharpening virtually every edge tool in your workshop. However, there is no secret that when it comes to woodturning tools and you need to remove a lot of steel, the initial shaping can be done faster on a bench grinder. We know that many woodturners have access to a bench grinder and use it for the first rough shaping
  • If you have a Tormek sharpening machine
  • With the BGM-100 you can use the same precise Tormek jigs through the whole sharpening process. There is no longer trial and error in getting the right shape on the bench grinder. Thanks to the TTS-100 setter, you can benefit from the fast steel removal on the bench grinder – and with the settings unchanged – move the tool to the Tormek water cooled grindstone and the leather honing wheel for the final sharpening and finish
  • If you do not have a Tormek sharpening machine
  • If you do not yet have a Tormek machine, you can still benefit from the precise Tormek jig system to get the desired shape and edge angle on your bench grinder. The principle for setting the shape and edge angle is the same regardless of which machine you use. If you later choose to add a Tormek to your workshop, you will already have the jigs you need for your turning tools

Please Note:

  • Tormek machine is only for illustration purposes and is not included with the bench grinding mounting set


  • 7392485006114

Additional information

Weight 1.5 kg
Dimensions 15 × 20 × 10 cm
