Product Description

Description:
  • 360° green laser line projection for multi-directional alignment – perfect for large and bright environments. The laser’s vertical lines are easily adjusted once the plumb point (cross-section of two vertical lines), which is located outside the device, is set
Features:
  • Horizontal and two vertical 360° green laser lines
  • Best visibility due to green Ultra-power laser diodes
  • Self-leveling over wide range
  • Fixed plumb point due to integrated base
  • Adjustable strength of laser lines
  • Operating range of up to 35 metres
  • Li-Ion power for up to 11 h
  • Uninterrupted working with Triple-Power concept
  • Smart magnetic adapters versatile usage
Technical Data:
  • Beam horizontal 360°
  • Beam vertical 2 x 360°
  • Intersection points up, down, right, left, front, back (90° / 180°)
  • Range / diameter* 35 m / 70 m (115 ft / 230 ft)
  • Range / diameter* with Leica RGR 200 receiver 70 m / 140 m (230 ft / 460 ft)
  • Levelling accuracy ± 0.2 mm/m (± 0.002 in/ft)
  • Horizontal- and vertical line accuracy ± 0.3 mm/m (± 0.004 in/ft)
  • Intersection point accuracy ± 0.2 mm/m (± 0.002 in/ft)
  • Self-levelling range ± 4°
  • Self-levelling time < 3 sec
  • Fine adjustment ± 10° around vertical intersection point
  • Out-of-level warning yes – blink lines every 5 s
  • Levelling pendulum (lockable)
  • Laser 525 nm / class 2 (acc. to IEC 60825-1)
  • Protection class IP54 (dust and splash water)
  • Battery type Lino Li-Ion battery pack 5200mAh / 18.7Wh
  • or 3 x AA Alkaline
  • Laser line intensity (selectable) 100 %, 75 %, 50 %
  • Operating time with Li-Ion up to 11 h (3 beam, 50 % power)
  • Operating time with Alkaline up to 8 h (3 beam, 50 % power)
  • Dimensions 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
  • Weight 781 g (1.71 lbs)
  • Operation temperature -10 to +50° C (14 to 122° F)
  • Storage temperature -25 to +70° C (-13 to +158° F)
  • Laser line width @ 5 m distance (16.4 ft) < 2 mm (< 0.08 in)
  • Tripod thread 1/4 in (5/8 in with adapter)
  • Pulse power for receiver yes

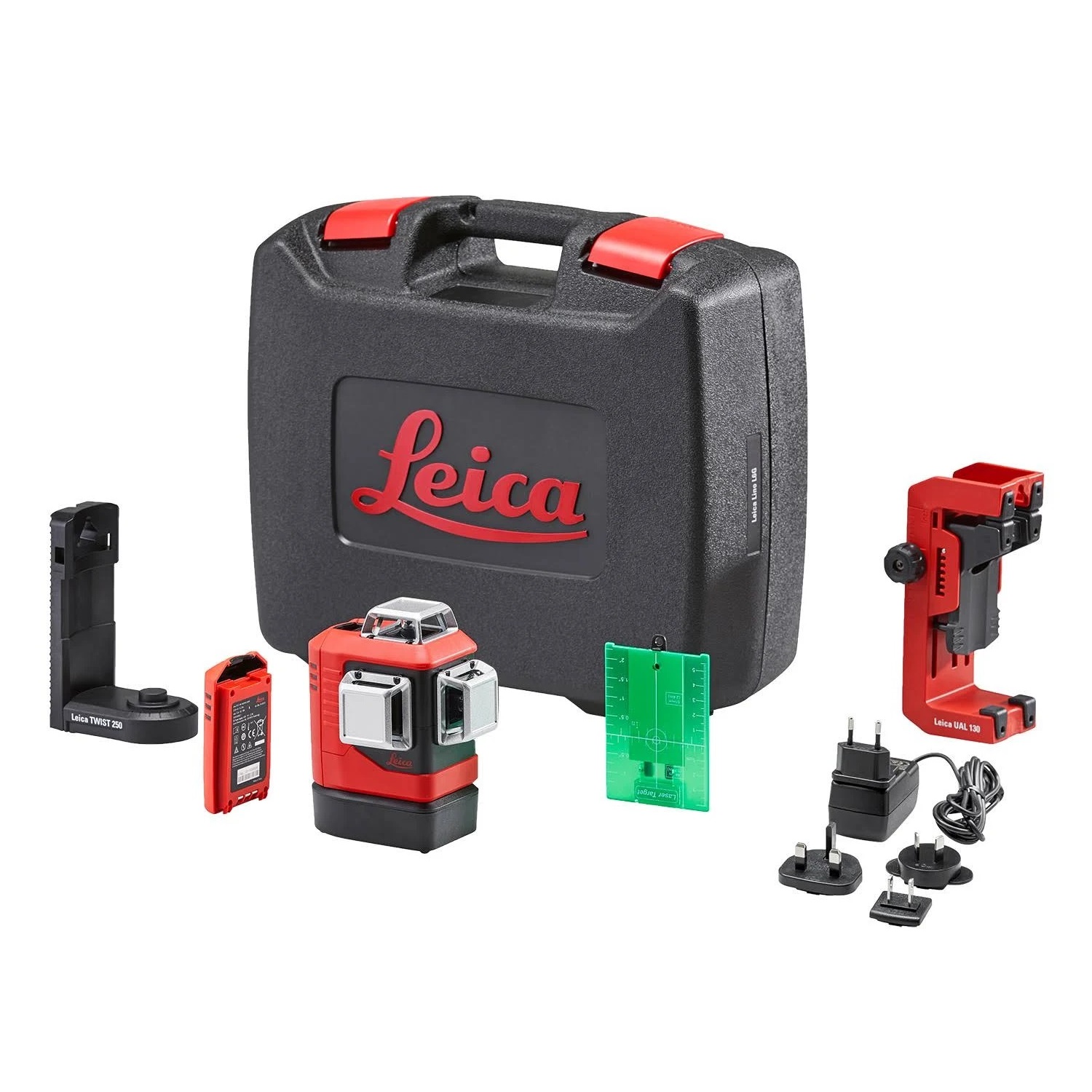

Kit Includes:
  • Leica Lino L6G
  • Twist 250 magnetic adapter
  • UAL 130 wall mount adapter
  • Li-Ion battery pack
  • Charger for Li-Ion battery pack
  • Battery tray for Alkaline
  • Target plate
  • Quick start guide
  • Calibration Certificate Blue
  • Hard carry case
UPC:
  • 7640110699942
