KLEIN Tools A-VDV500-705 Tone & Probe Test and Trace Kit with Generator

SKU: A-VDV500-705
In Stock
$83
Or
4 payments of $20.75 with
Estimated delivery by 13th October to 16th October
  • Free Shipping For Orders Over $150
    Free Postage for orders over $150 applies to all orders that are sent via Australia post and does not weigh more than 25kg per item.
  • 14 Days Free Returns
    • Item must be in new condition and not used.
    • Refunds will be processed once your item has arrived.
    • Return postage cost is the customer’s responsibility. If the product is faulty we cover the return cost as well.
    Read More
  • Manufacturer's Warranty
    All items are sold with Manufacturer's Warranty. Should your item be faulty within this time, your item will be repaired or replaced. Warranty only covers product defects, it does not apply to regular wear and misuse.
The safer, easier way to pay

Product Description

Description:

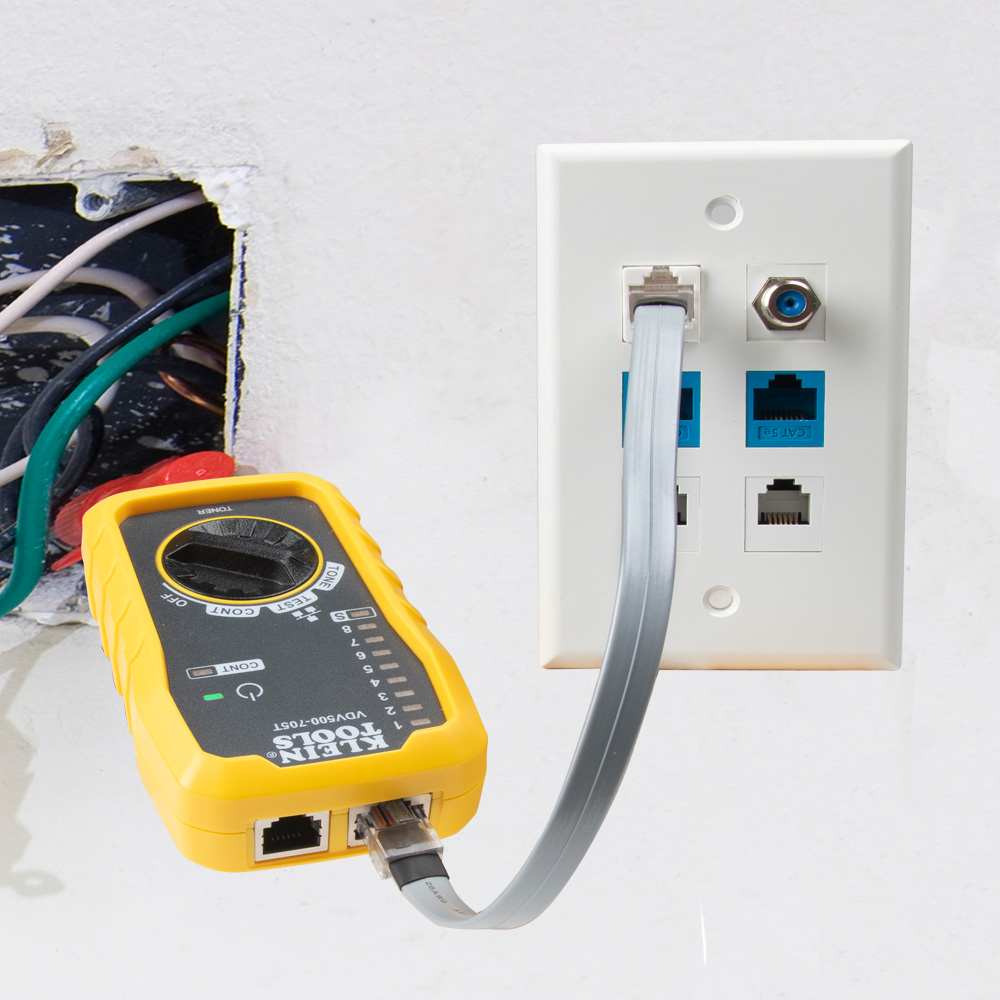

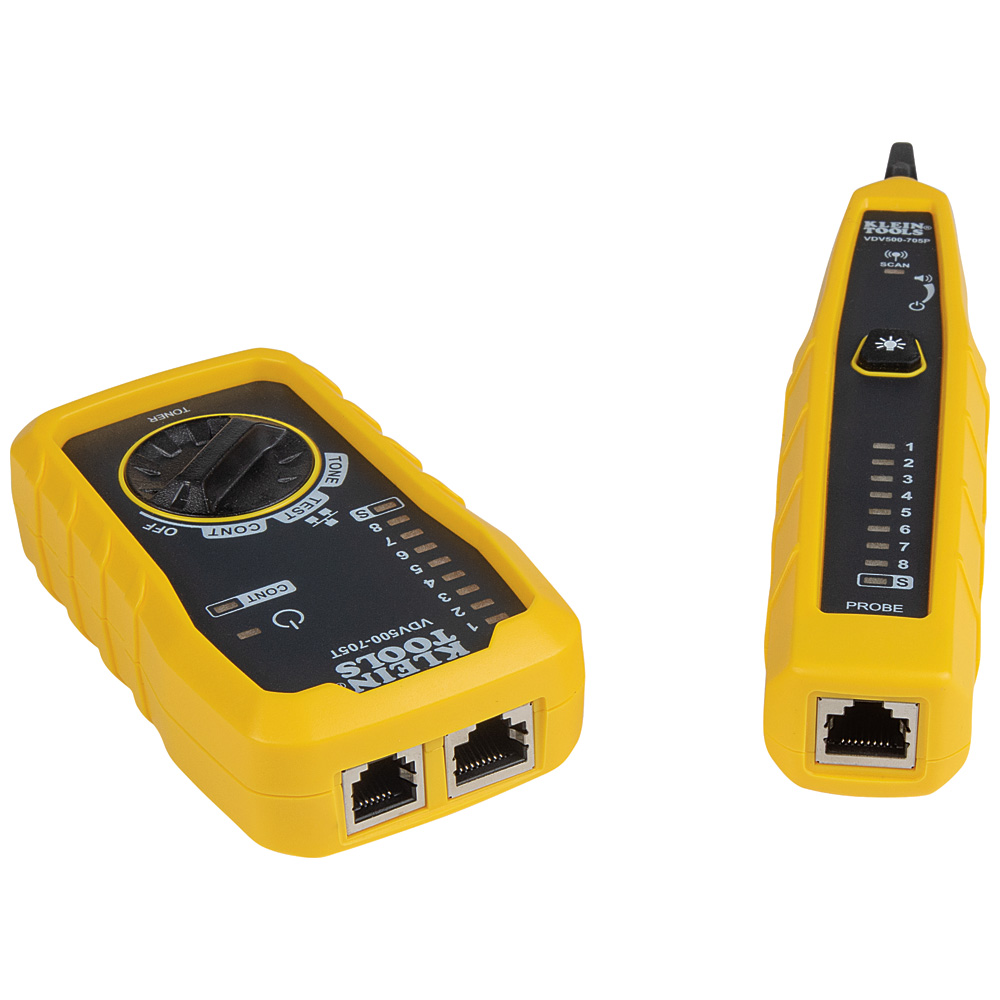

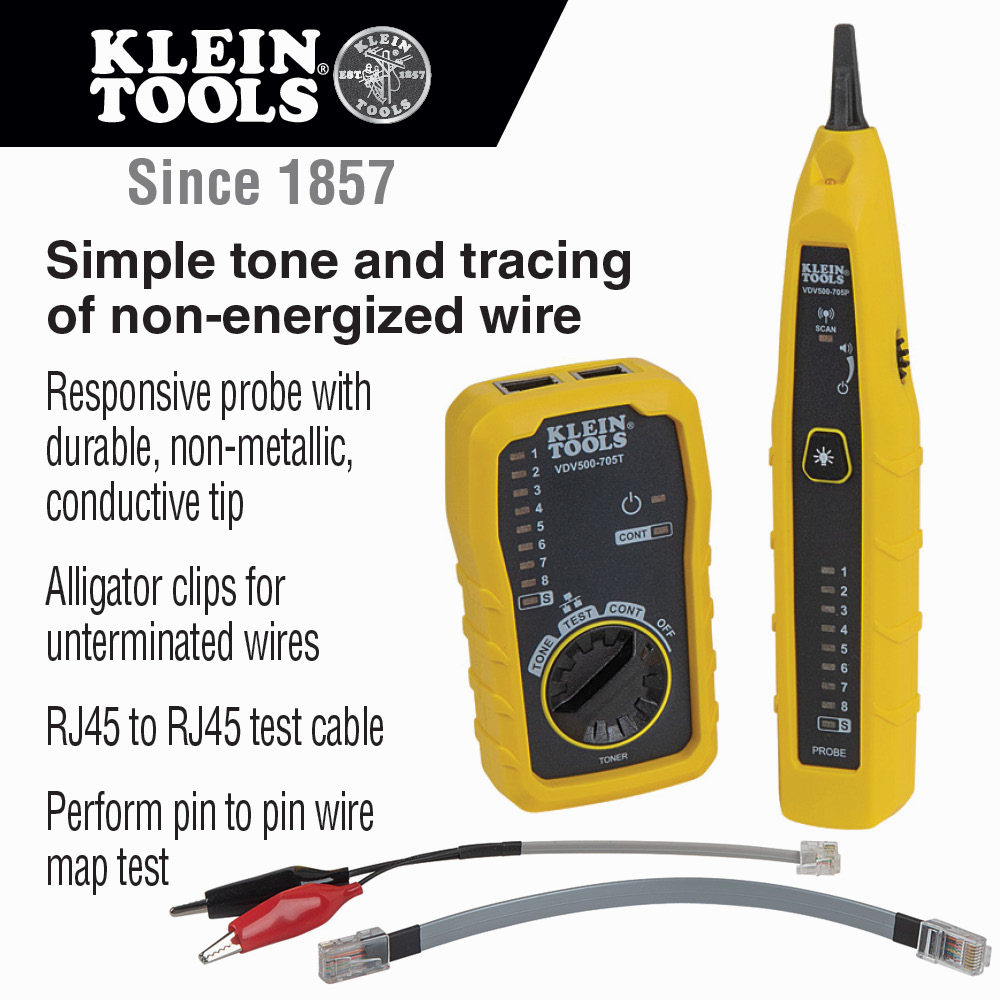

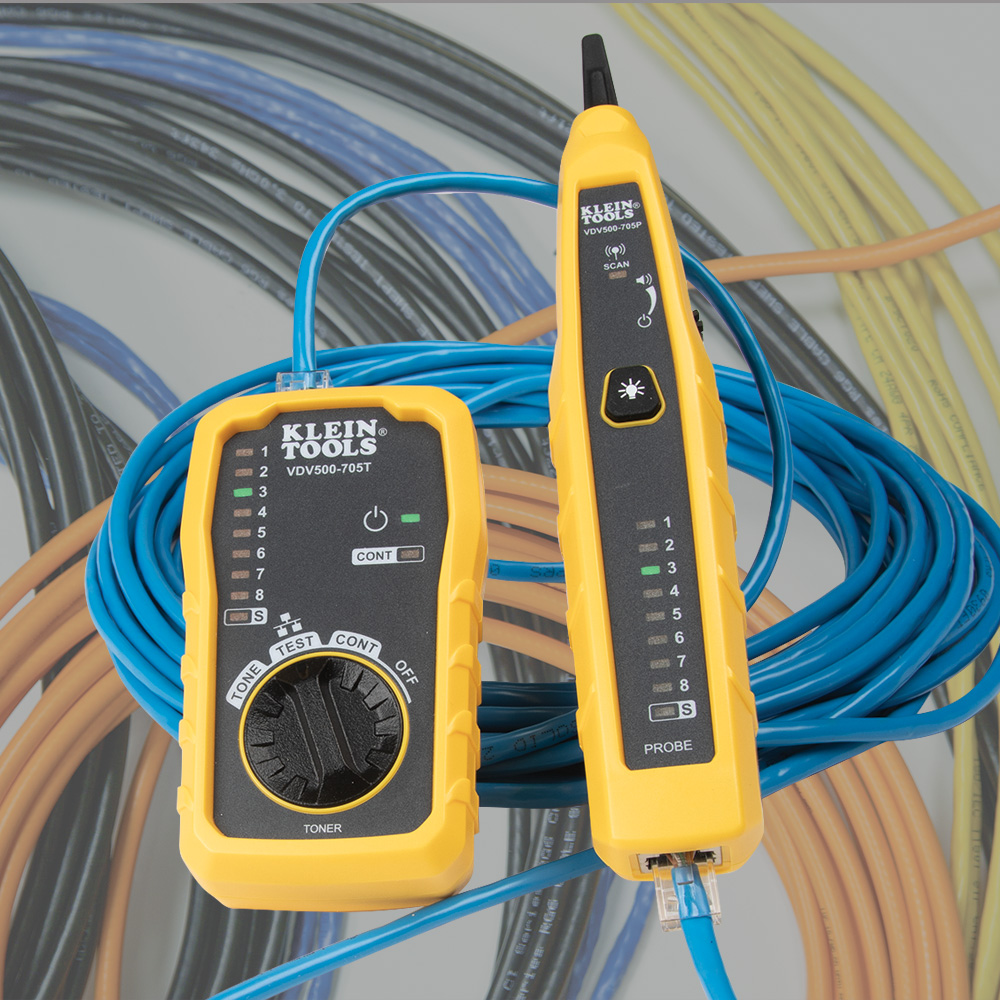

  • The Tone & Probe Test and Trace Kit provides simple toning and tracing of non-energised wire. The easy-to-use tone generator traces wire when used with the included probe. Alligator clips are provided for unterminated wires and an RJ45 to RJ45 cable to tone or test data cables. The responsive probe is a tone tracer with a durable, non-metallic, conductive tip, and a speaker with audible output and headphone jacks for use in noisy environments (headphones not included). The worklight on the probe illuminates dark spaces. The toner and probe together perform pin-to-pin wire map tests
Features:
  • Simple analogue tone generator and wire tracing probe for open-ended non-active wire runs
  • Responsive probe with durable, non-metallic, conductive tip

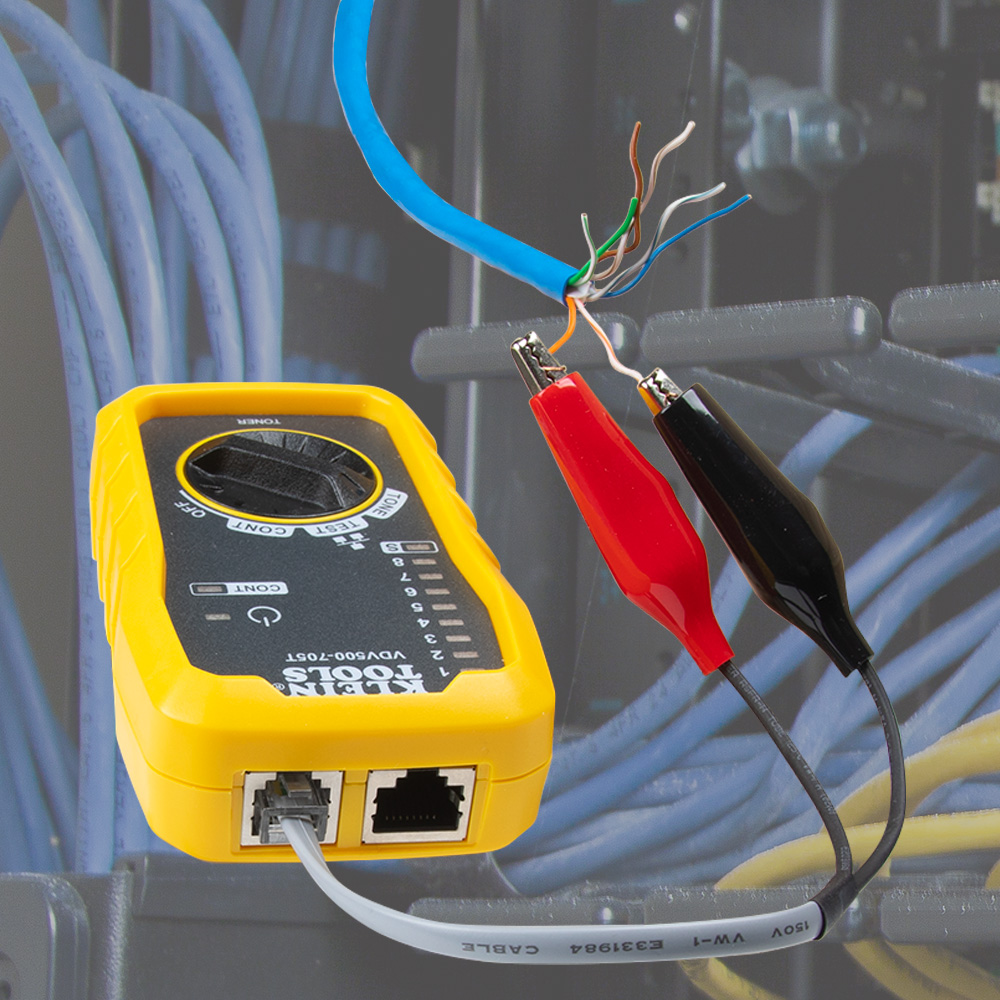

  • Alligator clips for unterminated wires
  • RJ45 to RJ45 test cable
  • Toner and probe together perform pin-to-pin wire map test
  • Work light on probe tip for use in dark spaces
  • Adjustable volume control
  • AAA batteries (included)
  • Replaceable test cables available (Cat. No. VDV770-855)
  • Headphone jack for noisy environments (headphones not included)
Specifications:
  • Type: Tone Generator Tracing Probe
  • Application: Wire Toning and Tracing
  • Special Features: Alligator Clips, RJ11 Plug, RJ45 to RJ45 Test Cable
  • Overall Length: 10.6” (26.9 cm)
  • Overall Height: 1.6” (4.1 cm)
  • Overall Width: 6.9” (17.5 cm)
  • Material: ABS
  • Batteries: 4 x AAA
  • Standard: REACH, RoHS3, CE-EMC
  • Weight: 10.1 oz (286 g)
Includes:
  • Tester/Tracer; RJ45 Cable; RJ12 and Alligator Clip Cable; Batteries
UPC:
  • 092644582943

Additional information

Weight 1 kg
Dimensions 20 × 20 × 10 cm
