Product Description

Description:

• Measure voltage … without test leads

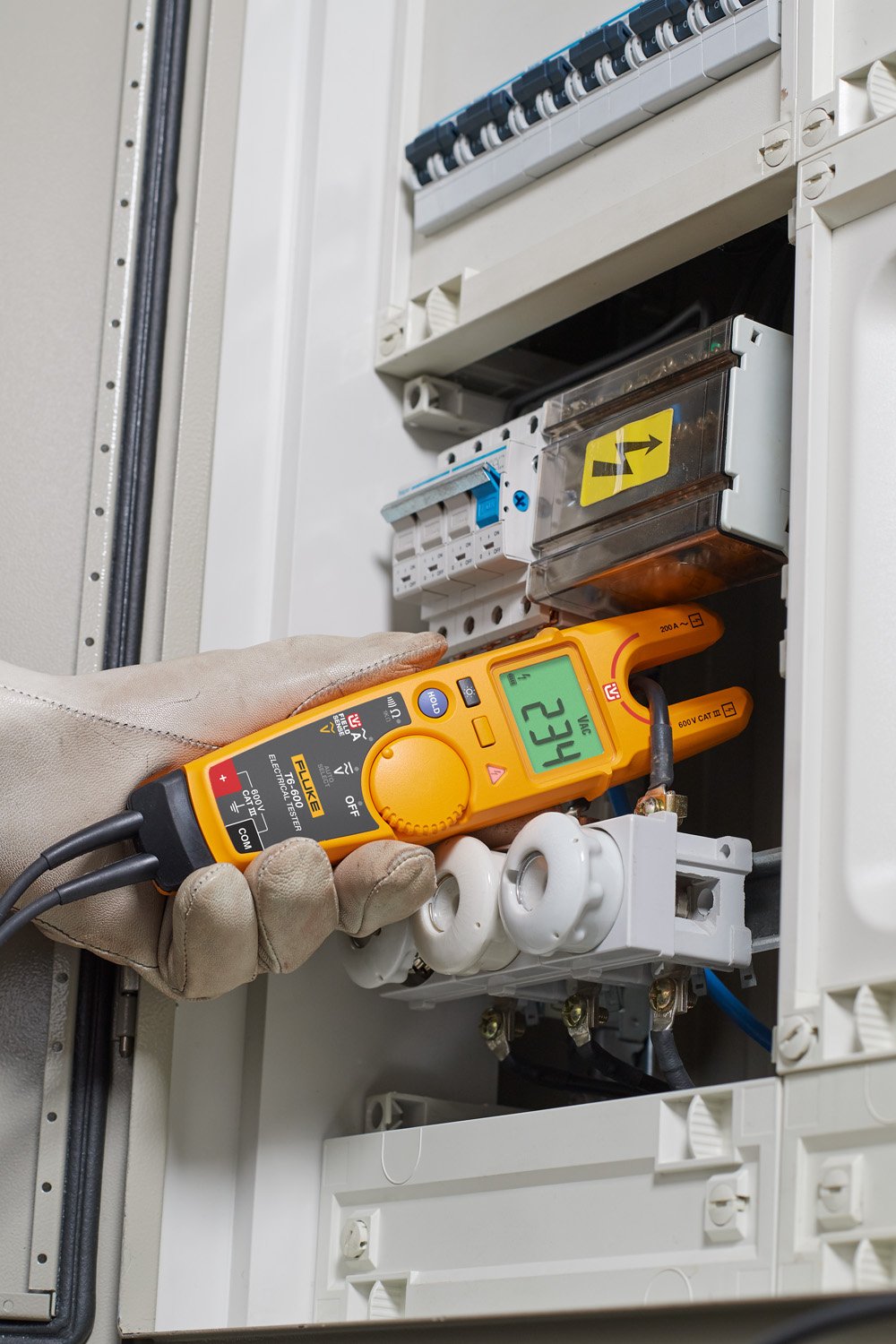

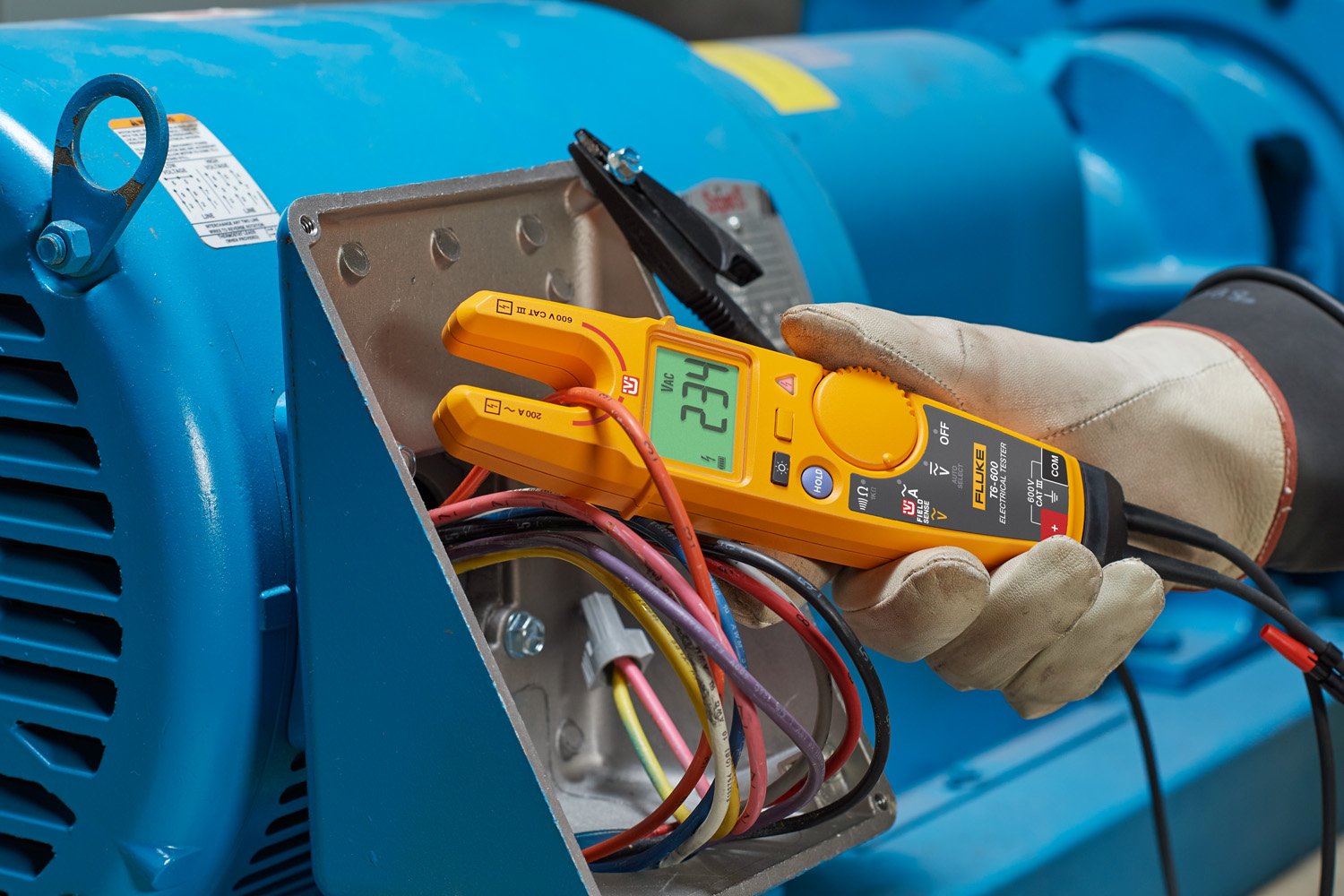

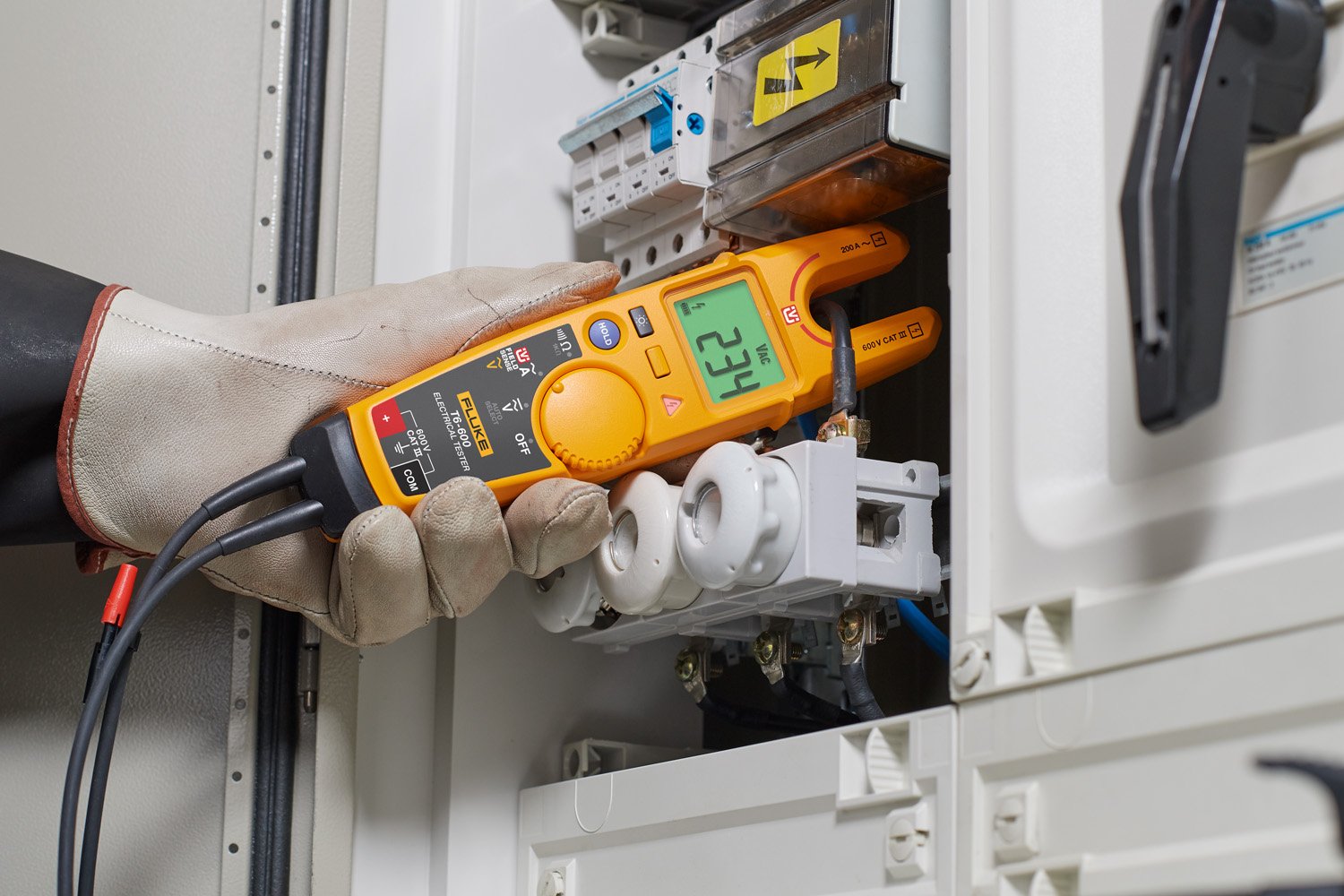

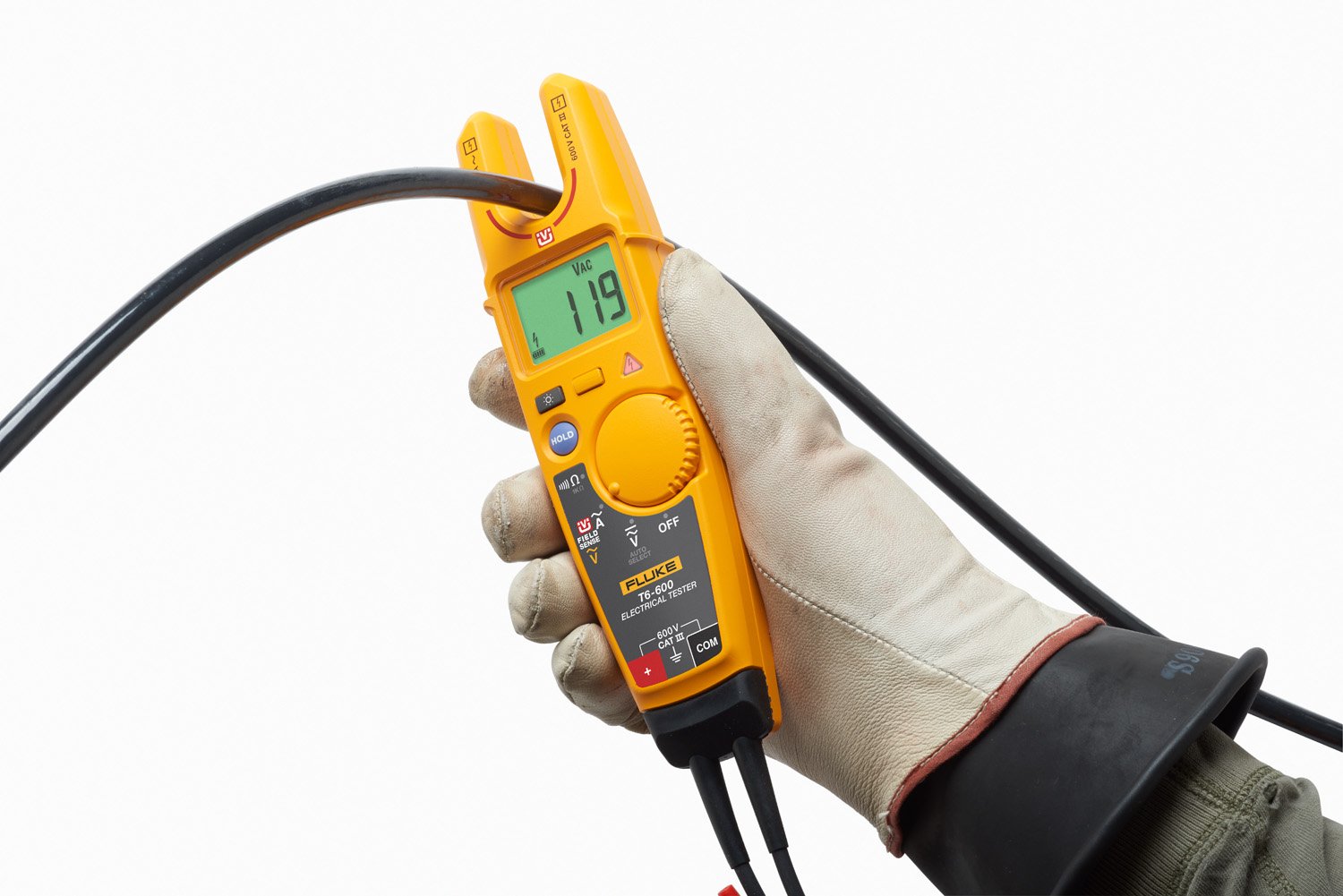

• Working in cramped electrical boxes and trying to find a safe metallic contact points is often challenging. The Fluke T6-600 Electrical Tester with FieldSense™ technology, lets you quickly and safely take measurements by sliding the open fork over a conductor, without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
• How FieldSense™ technology works
• FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field, which interacts with a reference signal created by the T6 tester, which shows the measurement value on the tester’s display.
• Tips on using FieldSense technology
• Do not hold or touch wire you are testing during a measurement
• Use the black probe to make the ground connection if you are wearing gloves, insulated footwear or standing on an insulated ladder
• Measurement versatility
• The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true rms voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC. You can also gather resistance measurement from 1 Ω to 2000 Ω. With the easy-to-read backlit display, you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation

Features:

• Measure AC voltage, current, frequency without touching a live wire
• Troubleshoot with all power supply measurements at-a-glance
• See AC voltage and current values without test leads

Specifications:

• FieldSense ac voltage true-rms No 600 V 1 V ±(3% + 3 counts) 45 Hz – 66 Hz[2] [3]
• FieldSense ac current true-rms No 200.0 A 0.1 A ±(3% + 3 counts) 45 Hz – 66 Hz
• FieldSense frequency (Hz) No  1 Hz ±(1% + 2 counts)[3]
• Volts ac true-rms Yes 600 V 1 V ±(1.5% + 2 counts) 45 Hz – 66 Hz
• Volts dc Yes 600 V 1 V ±(1% + 2 counts)
• Resistance Yes 2000 Ω 1 Ω ±(1% + 2 counts)
• Safety 600 V CAT III
• Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding
• Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground
• Accuracy[3]: FieldSense is specified from 16 V to 100 % of range

Includes:

• Attached test leads with removable 4 mm probe caps, user documentation

UPC:

• 095969854115
